MIG 1B – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

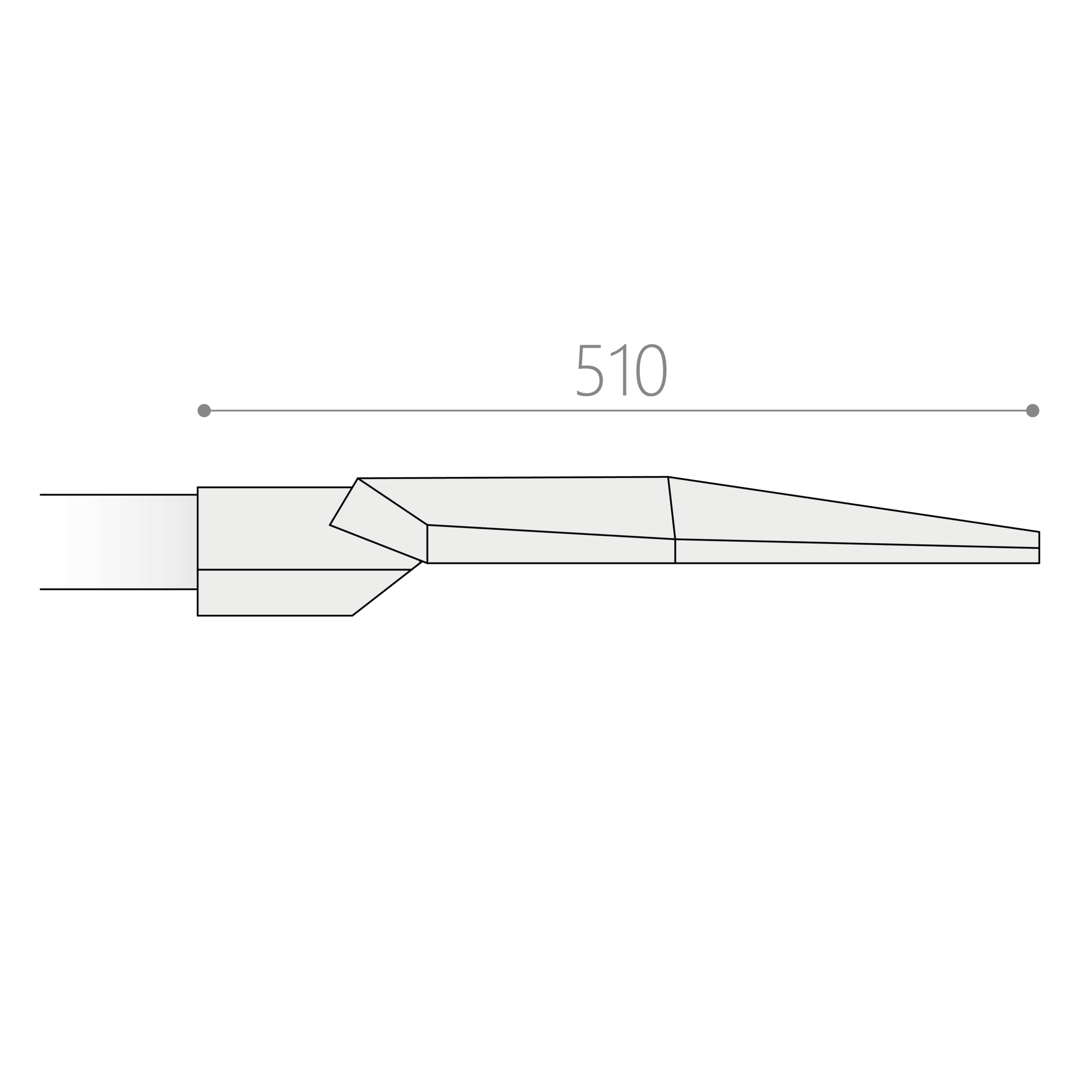

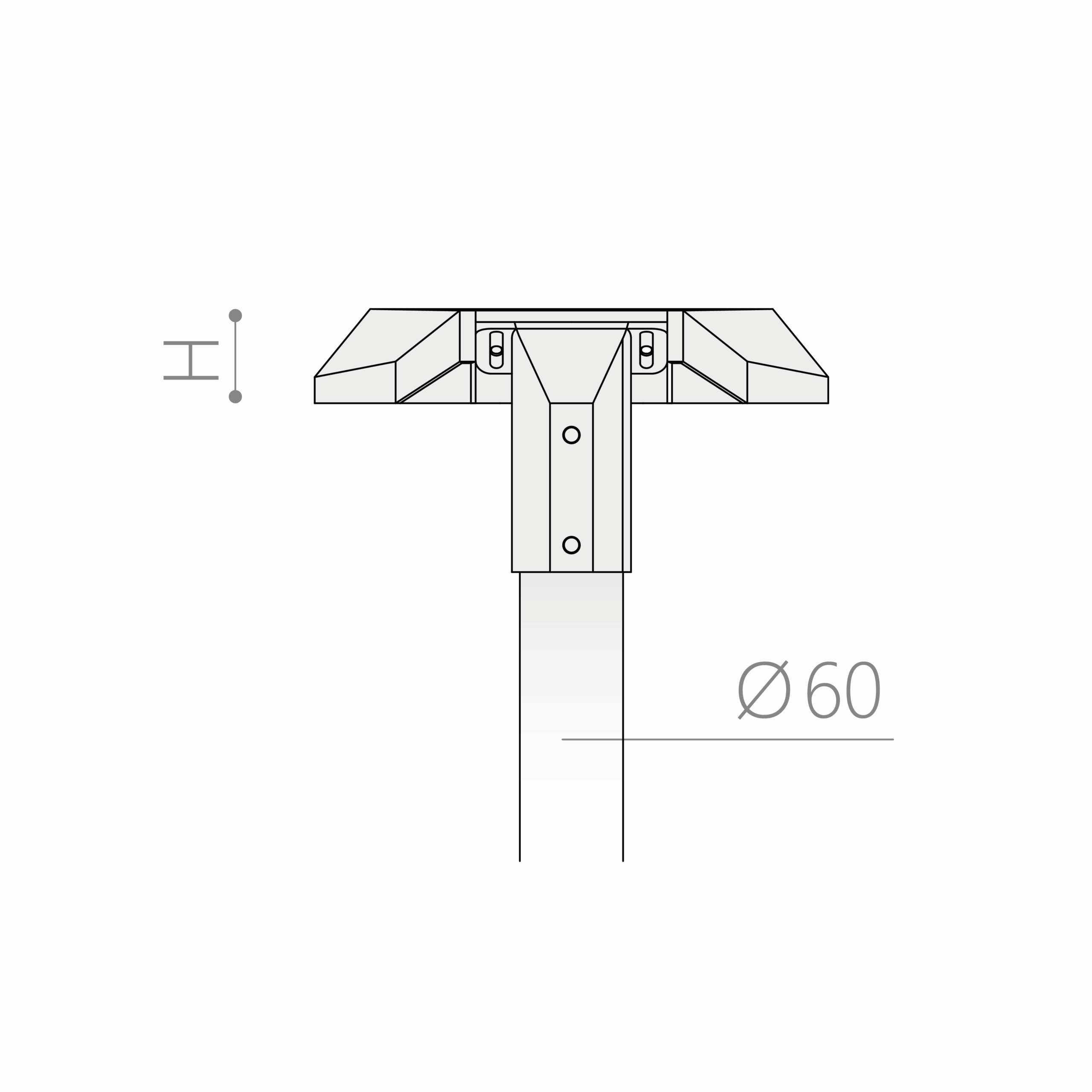

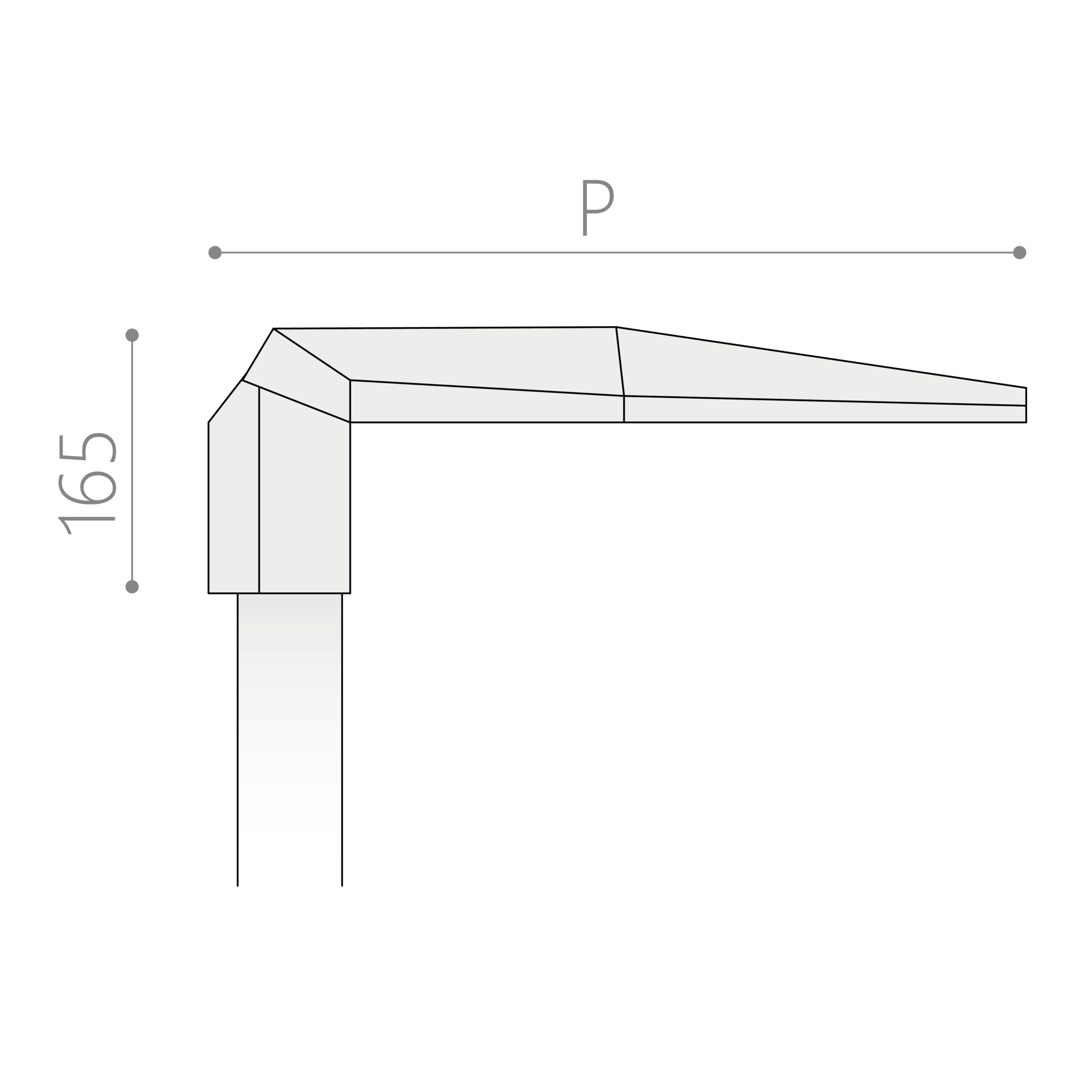

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating graphite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical medium 45° street optic IESNA Type II.
Categories: Led, MIG, MIG 1B - 9202, Street lighting, MIG 1B
Models: 132
Color: Graphite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9202T23= 3000°K (CRI >70)025RL= on/off
4= 4000°K (CRI >70)030RD= dali 2
034MR= virtual midnight
040
050
056
062
075
092
105
120

Models

W tot.
°K - CRI
Options

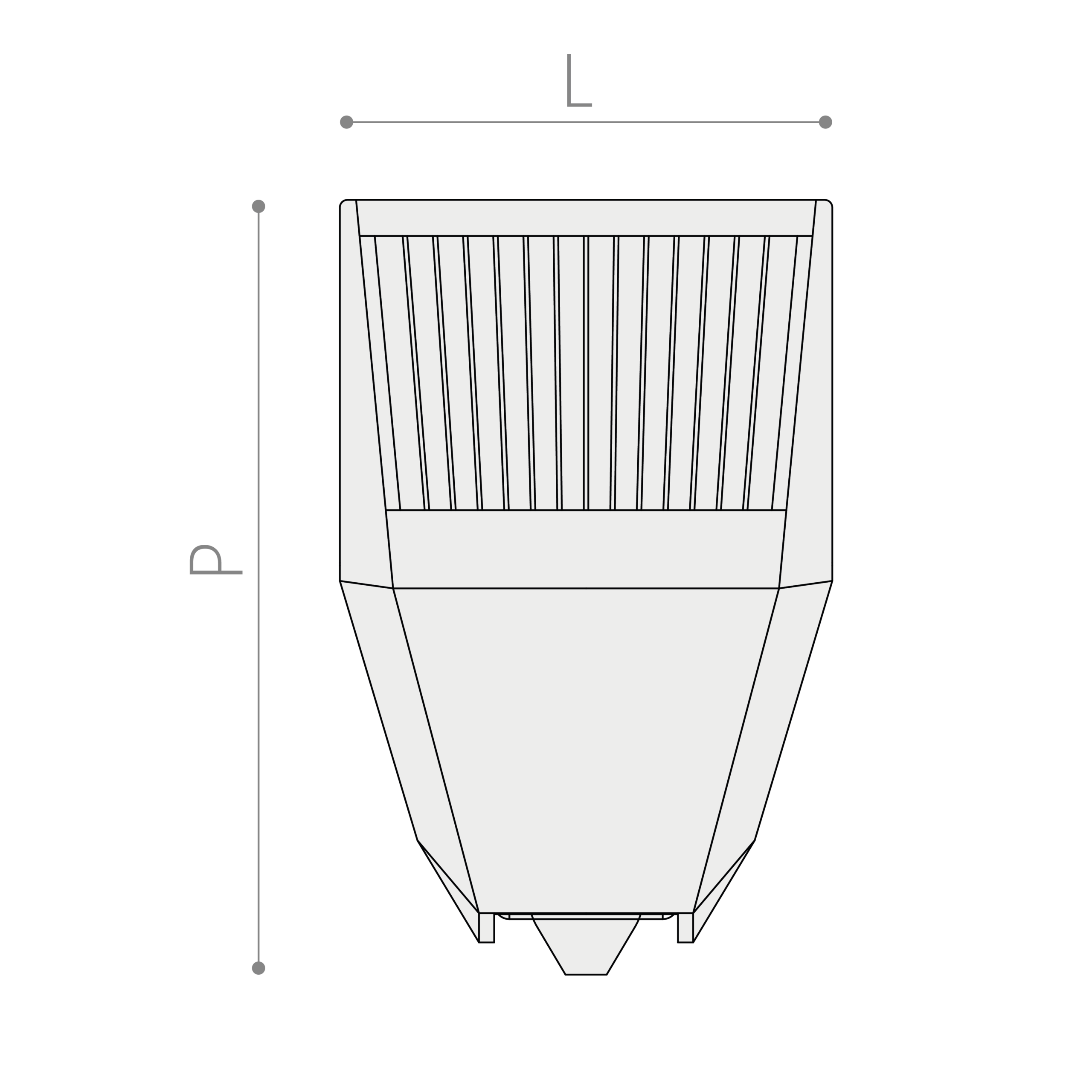

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9202T24025RD25-4000°K - CRI>70dali 2383015324541560-4.5
9202T24030RD30-4000°K - CRI>70dali 2459715324541560-4.5
9202T24034RD34-4000°K - CRI>70dali 2510115024541560-4.5
9202T24040RD40-4000°K - CRI>70dali 2601315024541560-4.5
9202T24050RD50-4000°K - CRI>70dali 2749515024541560-4.5
9202T24056RD56-4000°K - CRI>70dali 2816814624541560-4.5
9202T24062RD62-4000°K - CRI>70dali 2966615624541560-4.5
9202T24075RD75-4000°K - CRI>70dali 21202616024541560-4.5
9202T24092RD92-4000°K - CRI>70dali 21324914424541560-4.5
9202T24105RD105-4000°K - CRI>70dali 21479914124541560-4.5
9202T24120RD120-4000°K - CRI>70dali 21631213624541560-4.5
9202T23025RD25-3000°K - CRI>70dali 2381115224541560-4.5
9202T23030RD30-3000°K - CRI>70dali 2457415224541560-4.5
9202T23034RD34-3000°K - CRI>70dali 2507514924541560-4.5
9202T23040RD40-3000°K - CRI>70dali 2598315024541560-4.5
9202T23050RD50-3000°K - CRI>70dali 2745814924541560-4.5
9202T23056RD56-3000°K - CRI>70dali 2812714524541560-4.5
9202T23062RD62-3000°K - CRI>70dali 2961815524541560-4.5
9202T23075RD75-3000°K - CRI>70dali 21196616024541560-4.5
9202T23092RD92-3000°K - CRI>70dali 21318314324541560-4.5

Accessories
