NOVA/CP

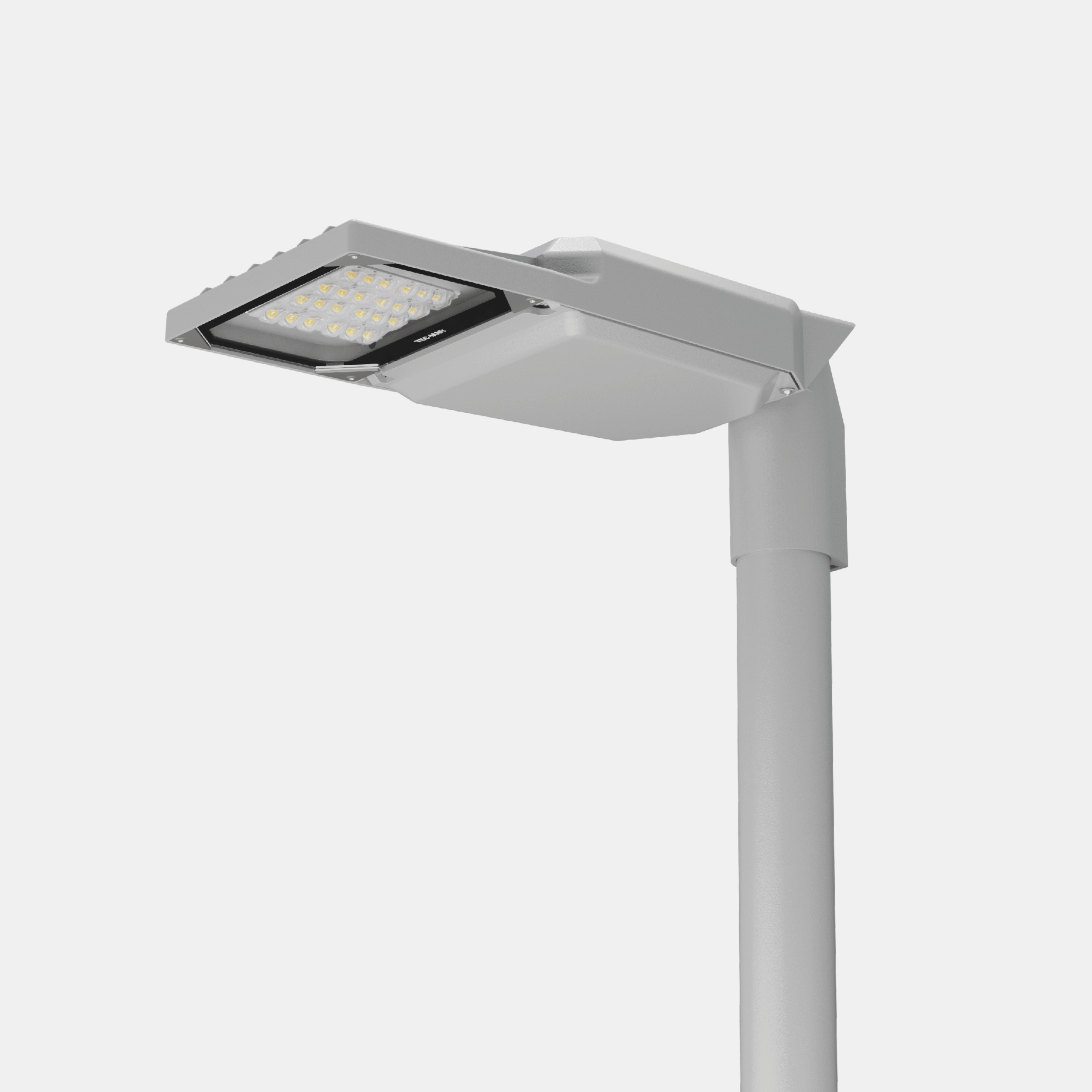

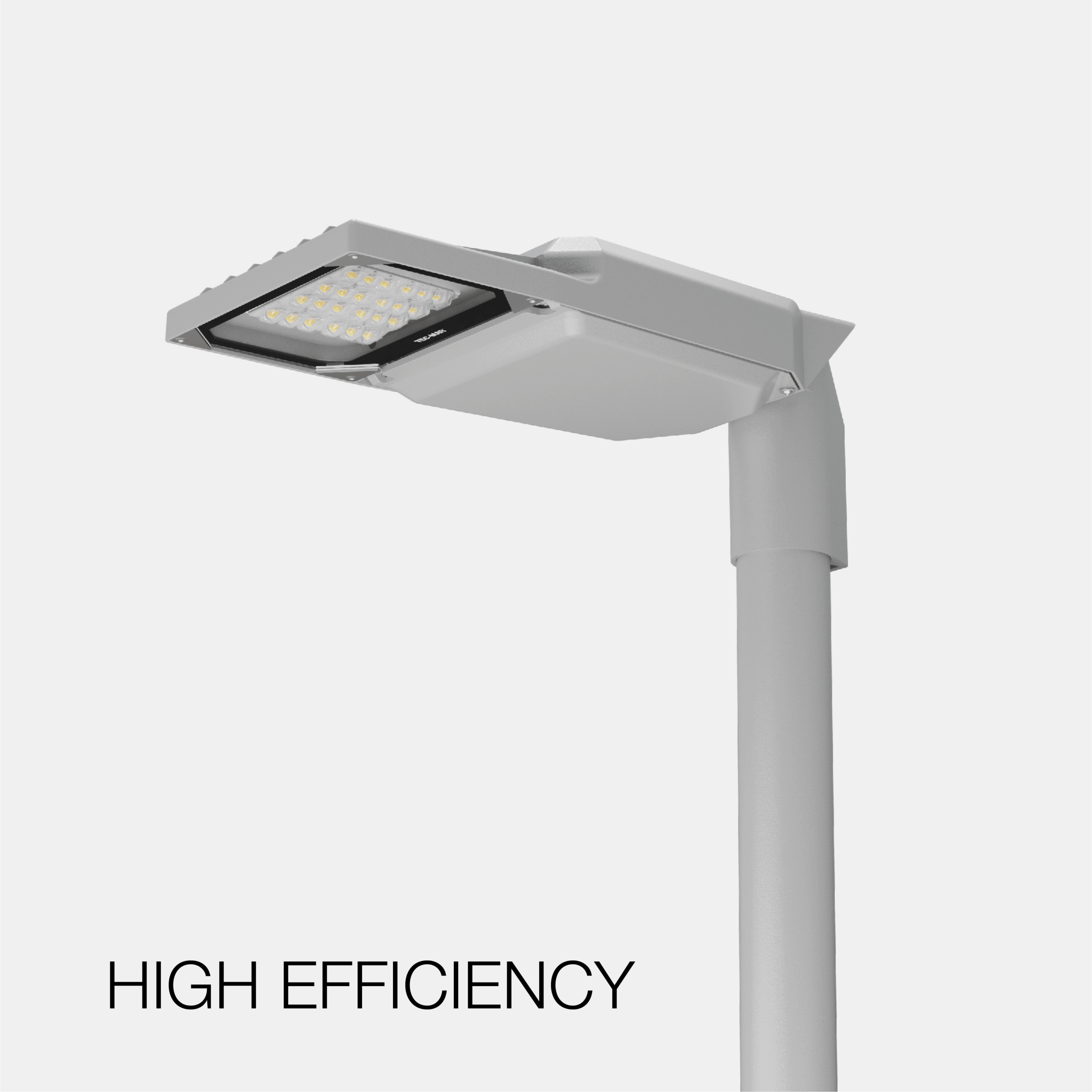

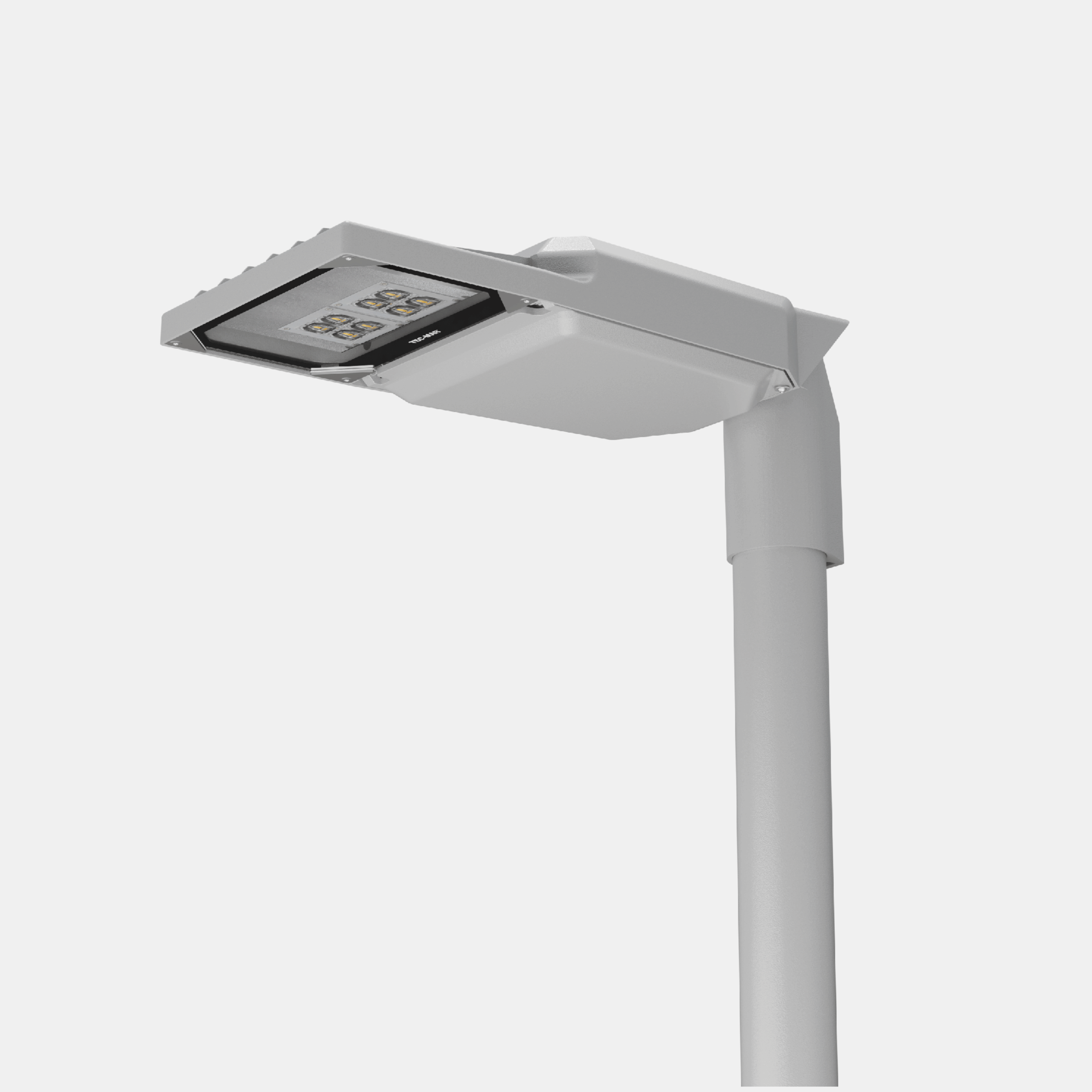

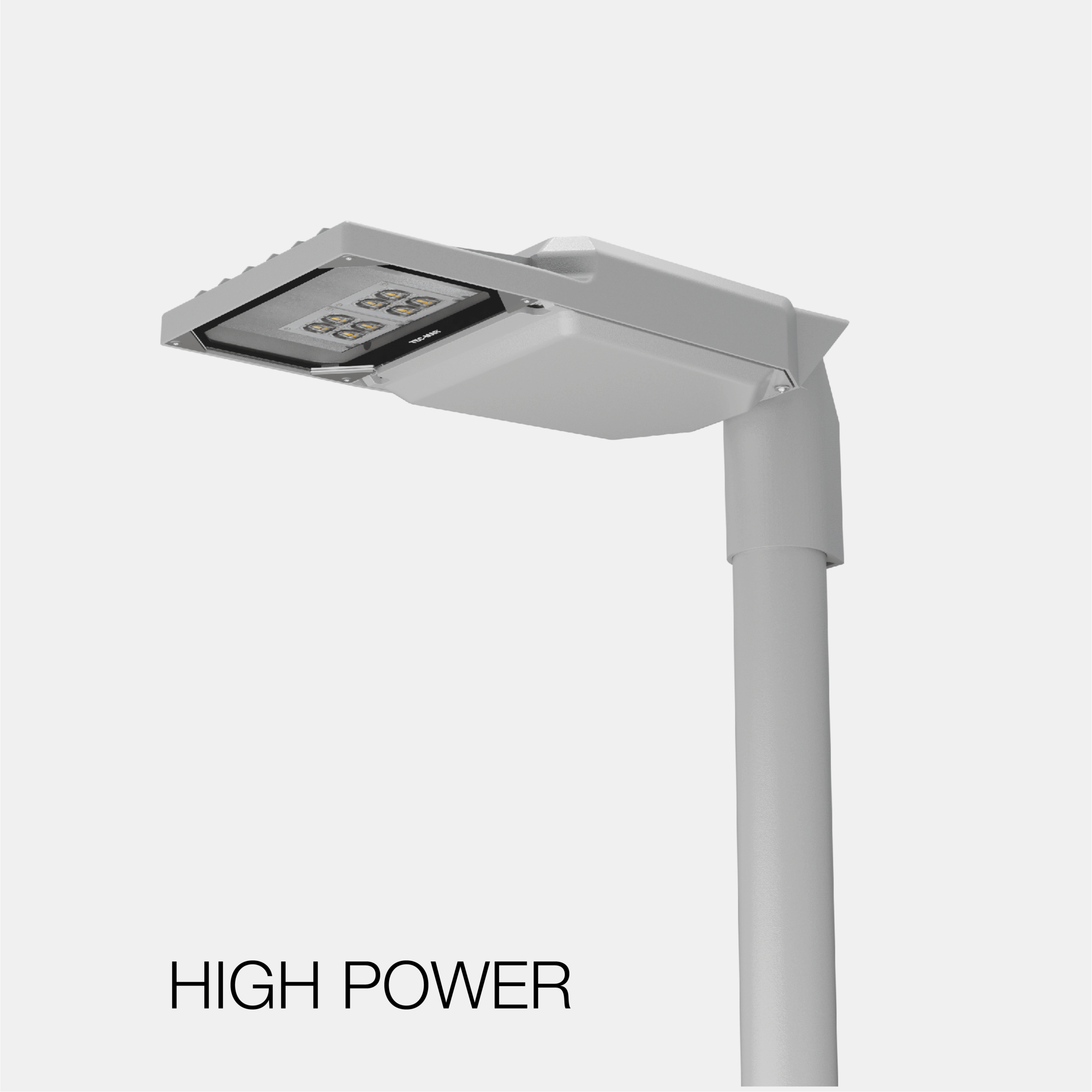

LED fixture for ‘lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. High-performance PMMA optics, available in three types: asymmetrical medium 45° street optic IESNA Type II, asymmetrical wide street optic EN13201 Class ME and cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, NOVA - 9210, art. 9210 Nova, Street lighting, art. 9210 Nova
Models: 270
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9210CP3= 3000°K (CRI >70)012044GL= on/off
4= 4000°K (CRI >70)014050GD= dali 2
018052MG= virtual midnight
022055ZD= zagha socket D4i
024056ZS= zagha socket D4i up&down
025060
026062
028068
030075
034080
035092
036105
040120
041

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9210CP4012GL12-4000°K - CRI>70on/off221718547523075-3.85
9210CP4024GL24-4000°K - CRI>70on/off443518547523075-3.85
9210CP4014GL14-4000°K - CRI>70on/off252018047523075-3.85
9210CP4028GL28-4000°K - CRI>70on/off503918047523075-3.85
9210CP4018GL18-4000°K - CRI>70on/off311317347523075-3.85
9210CP4036GL36-4000°K - CRI>70on/off622617347523075-3.85
9210CP4022GL22-4000°K - CRI>70on/off369216847523075-3.85
9210CP4044GL44-4000°K - CRI>70on/off738416847523075-3.85
9210CP4026GL26-4000°K - CRI>70on/off424716347523075-3.85
9210CP4052GL52-4000°K - CRI>70on/off849416347523075-3.85
9210CP4030GL30-4000°K - CRI>70on/off479216047523075-3.85
9210CP4060GL60-4000°K - CRI>70on/off958416047523075-3.85
9210CP4035GL35-4000°K - CRI>70on/off531015247523075-3.85
9210CP4068GL68-4000°K - CRI>70on/off1061915647523075-3.85
9210CP4041GL41-4000°K - CRI>70on/off607414847523075-3.85
9210CP4080GL80-4000°K - CRI>70on/off1214815247523075-3.85
9210CP4025GL25-4000°K - CRI>70on/off380515247523075-3.85
9210CP4034GL34-4000°K - CRI>70on/off506814947523075-3.85
9210CP4040GL40-4000°K - CRI>70on/off597314947523075-3.85
9210CP4050GL50-4000°K - CRI>70on/off744614947523075-3.85
