NOVA – Mod. ME

(Wide asymmetric street optics Class ME)

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. High-performance PMMA optics, available in three types: asymmetrical medium 45° street optic IESNA Type II, asymmetrical wide street optic EN13201 Class ME and cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, NOVA, NOVA - 9210, Street lighting, NOVA
Models: 270
Color: Anthracite
Catalogue abstract
Installation instructions

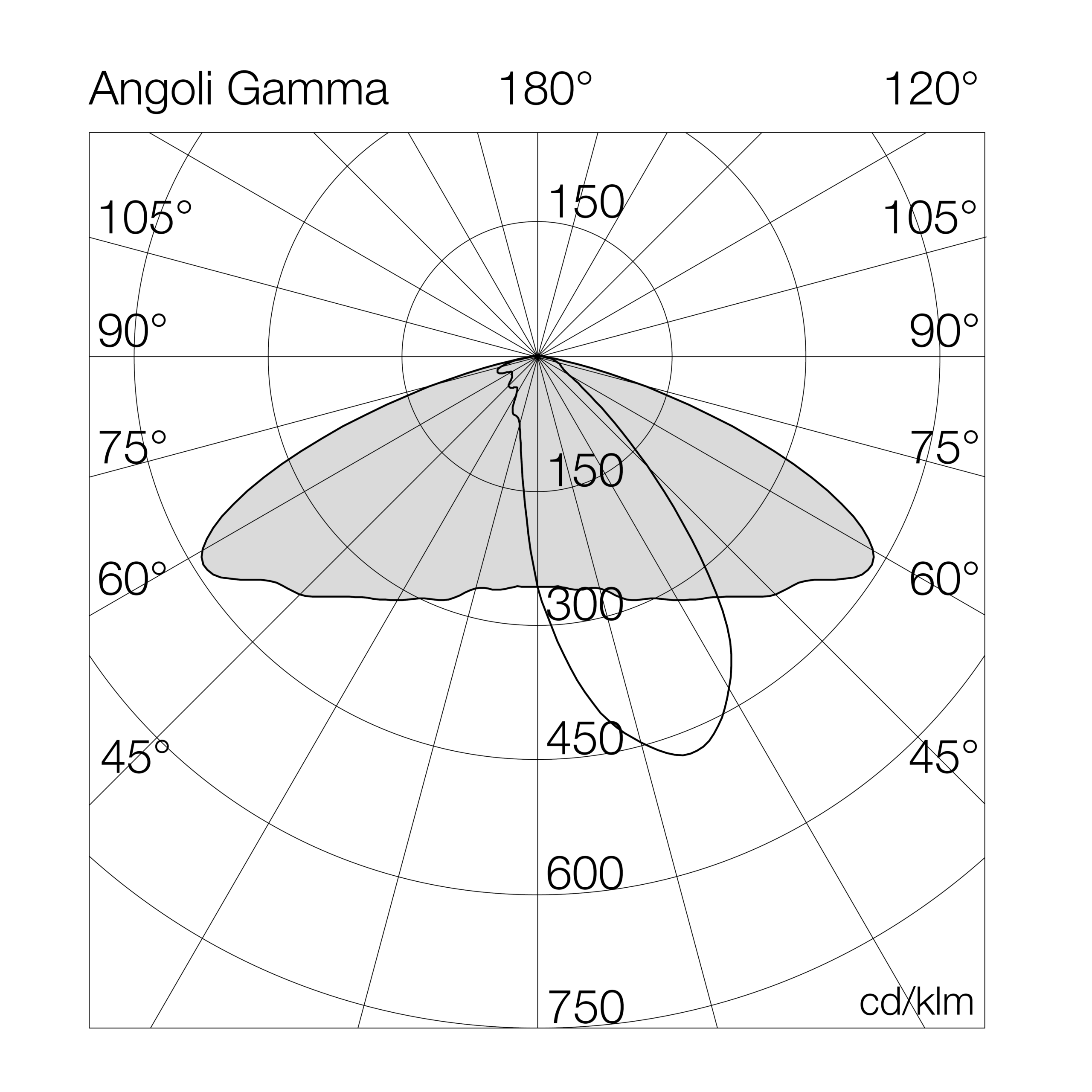

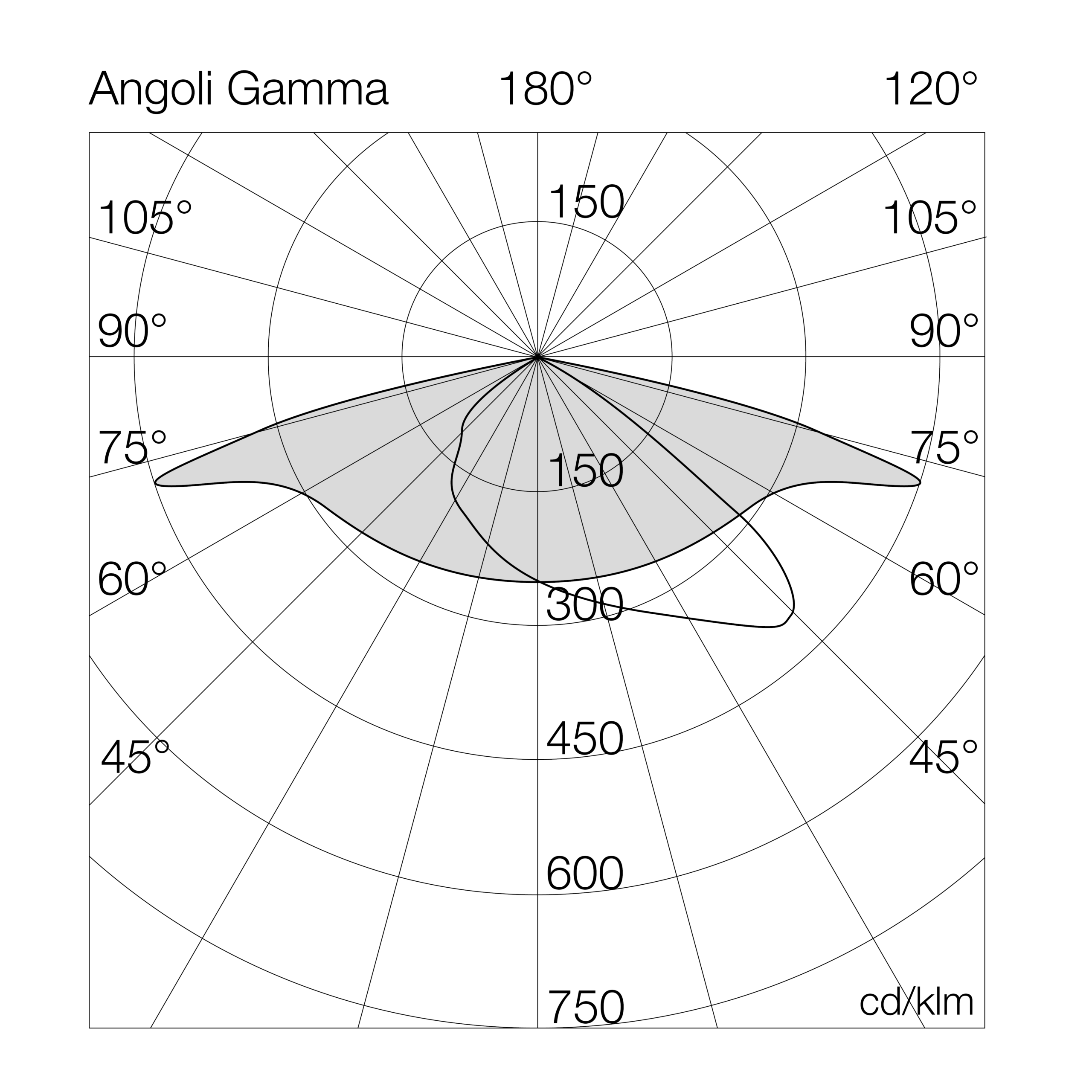

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9210ME3= 3000°K (CRI >70)012044EL= on/off
4= 4000°K (CRI >70)014050LD= dali 2
018052MD= virtual midnight
022055DZ= zagha socket D4i
024056SZ= zagha socket D4i up&down
025060
026062
028068
030075
034080
035092
036105
040120
041

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9210ME4012EL12-4000°K - CRI>70on/off223018647523075-3.85
9210ME4024EL24-4000°K - CRI>70on/off446118647523075-3.85
9210ME4014EL14-4000°K - CRI>70on/off253418147523075-3.85
9210ME4028EL28-4000°K - CRI>70on/off506918147523075-3.85
9210ME4018EL18-4000°K - CRI>70on/off313117447523075-3.85
9210ME4036EL36-4000°K - CRI>70on/off626217447523075-3.85
9210ME4022EL22-4000°K - CRI>70on/off371316947523075-3.85
9210ME4044EL44-4000°K - CRI>70on/off742716947523075-3.85
9210ME4026EL26-4000°K - CRI>70on/off427116447523075-3.85
9210ME4052EL52-4000°K - CRI>70on/off854316447523075-3.85
9210ME4030EL30-4000°K - CRI>70on/off482016147523075-3.85
9210ME4060EL60-4000°K - CRI>70on/off963916147523075-3.85
9210ME4035EL35-4000°K - CRI>70on/off534015347523075-3.85
9210ME4068EL68-4000°K - CRI>70on/off1068115747523075-3.85
9210ME4041EL41-4000°K - CRI>70on/off610914947523075-3.85
9210ME4080EL80-4000°K - CRI>70on/off1221815347523075-3.85
9210ME4025EL25-4000°K - CRI>70on/off382615347523075-3.85
9210ME4034EL34-4000°K - CRI>70on/off509615047523075-3.85
9210ME4040EL40-4000°K - CRI>70on/off600615047523075-3.85
9210ME4050EL50-4000°K - CRI>70on/off748715047523075-3.85

Accessories
