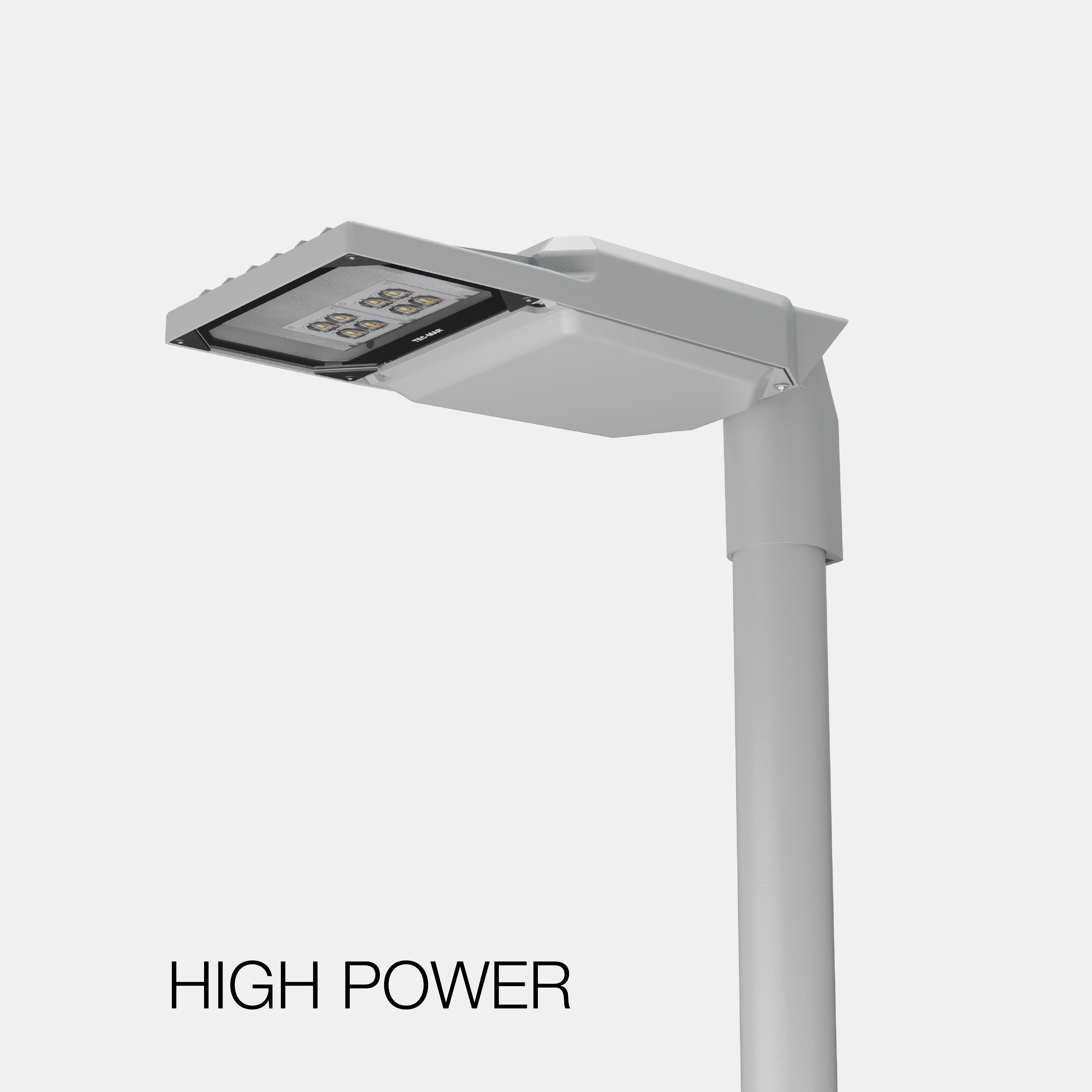

HIGH POWER NOVA SILVER

NOVA – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, NOVA, NOVA, Street lighting, NOVA
Models: 100
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9210CP3= 3000°K (CRI >70)025GL= on/off
4= 4000°K (CRI >70)034GD= dali 2
040MG= virtual midnight
050ZD= zagha socket D4i
056ZS= zagha socket D4i up&down
062
075
092
105
120

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9210CP4025GL25-4000°K - CRI ≥70on/off380515247523075-3.85
9210CP4034GL34-4000°K - CRI ≥70on/off506814947523075-3.85
9210CP4040GL40-4000°K - CRI ≥70on/off597314947523075-3.85
9210CP4050GL50-4000°K - CRI ≥70on/off744614947523075-3.85
9210CP4056GL56-4000°K - CRI ≥70on/off811414547523075-3.85
9210CP4062GL62-4000°K - CRI ≥70on/off966615647523075-3.85
9210CP4075GL75-4000°K - CRI ≥70on/off1194715947523075-3.85
9210CP4092GL92-4000°K - CRI ≥70on/off1324914447523075-3.85
9210CP4105GL105-4000°K - CRI ≥70on/off1470114047523075-3.85
9210CP4120GL120-4000°K - CRI ≥70on/off1620513547523075-3.85
9210CP4025GD25-4000°K - CRI ≥70dali 2380515247523075-3.85
9210CP4034GD34-4000°K - CRI ≥70dali 2506814947523075-3.85
9210CP4040GD40-4000°K - CRI ≥70dali 2597314947523075-3.85
9210CP4050GD50-4000°K - CRI ≥70dali 2744614947523075-3.85
9210CP4056GD56-4000°K - CRI ≥70dali 2811414547523075-3.85
9210CP4062GD62-4000°K - CRI ≥70dali 2966615647523075-3.85
9210CP4075GD75-4000°K - CRI ≥70dali 21194715947523075-3.85
9210CP4092GD92-4000°K - CRI ≥70dali 21324914447523075-3.85
9210CP4105GD105-4000°K - CRI ≥70dali 21470114047523075-3.85
9210CP4120GD120-4000°K - CRI ≥70dali 21620513547523075-3.85

Accessories
