HIGH EFFICENCY NOVA SILVER

NOVA – Mod. ME

(Wide asymmetric street optics Class ME)

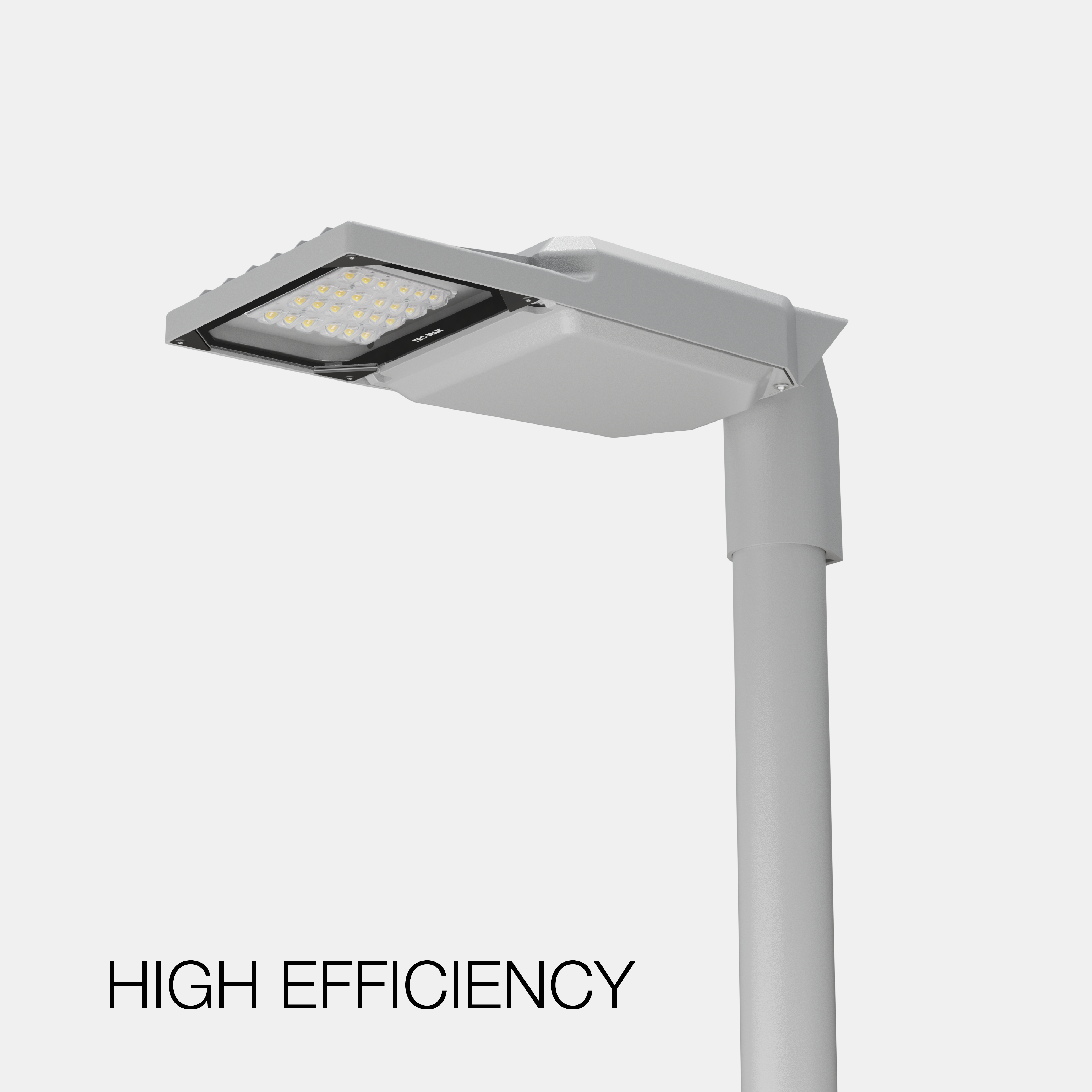

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical wide street optic EN13201 Class ME.
Categories: Led, NOVA, NOVA, Street lighting, NOVA
Models: 170
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9210ME3= 3000°K (CRI >70)012036GL= on/off
4= 4000°K (CRI >70)014041GD= dali 2
018044MG= virtual midnight
022052ZD= zagha socket D4i
024055ZS= zagha socket D4i up&down
026060
028068
030080
035

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9210ME4012GL12-4000°K - CRI ≥70on/off223018647523075-3.85
9210ME4024GL24-4000°K - CRI ≥70on/off446118647523075-3.85
9210ME4014GL14-4000°K - CRI ≥70on/off253418147523075-3.85
9210ME4028GL28-4000°K - CRI ≥70on/off506918147523075-3.85
9210ME4018GL18-4000°K - CRI ≥70on/off313117447523075-3.85
9210ME4036GL36-4000°K - CRI ≥70on/off626217447523075-3.85
9210ME4022GL22-4000°K - CRI ≥70on/off371316947523075-3.85
9210ME4044GL44-4000°K - CRI ≥70on/off742716947523075-3.85
9210ME4026GL26-4000°K - CRI ≥70on/off427116447523075-3.85
9210ME4052GL52-4000°K - CRI ≥70on/off854316447523075-3.85
9210ME4030GL30-4000°K - CRI ≥70on/off482016147523075-3.85
9210ME4060GL60-4000°K - CRI ≥70on/off963916147523075-3.85
9210ME4035GL35-4000°K - CRI ≥70on/off534015347523075-3.85
9210ME4068GL68-4000°K - CRI ≥70on/off1068115747523075-3.85
9210ME4041GL41-4000°K - CRI ≥70on/off610914947523075-3.85
9210ME4080GL80-4000°K - CRI ≥70on/off1221815347523075-3.85
9210ME4055GL55-4000°K - CRI ≥70on/off908616547523075-3.85
9210ME4012GD12-4000°K - CRI ≥70dali 2223018647523075-3.85
9210ME4024GD24-4000°K - CRI ≥70dali 2446118647523075-3.85
9210ME4014GD14-4000°K - CRI ≥70dali 2253418147523075-3.85

Accessories
