NOVA/T2

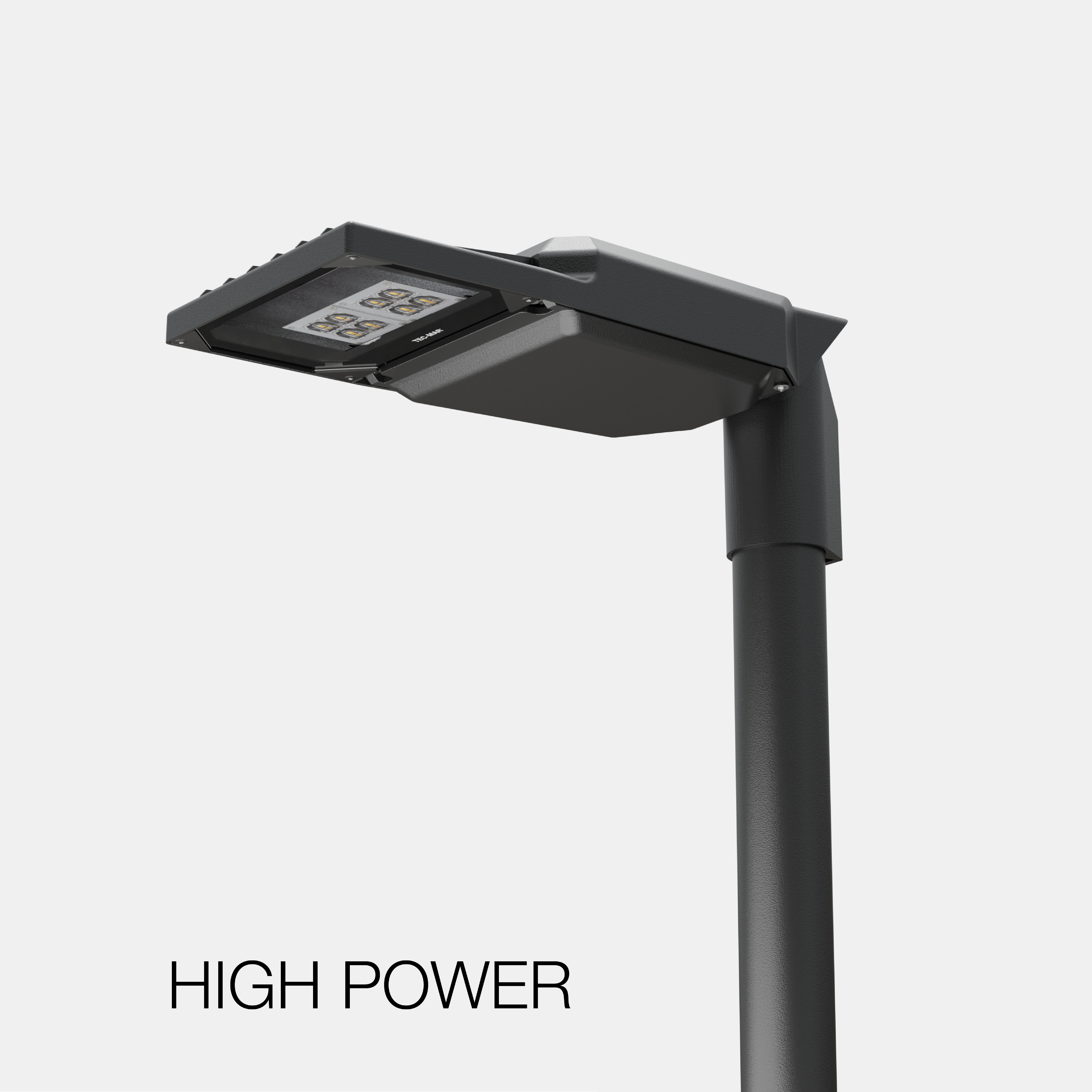

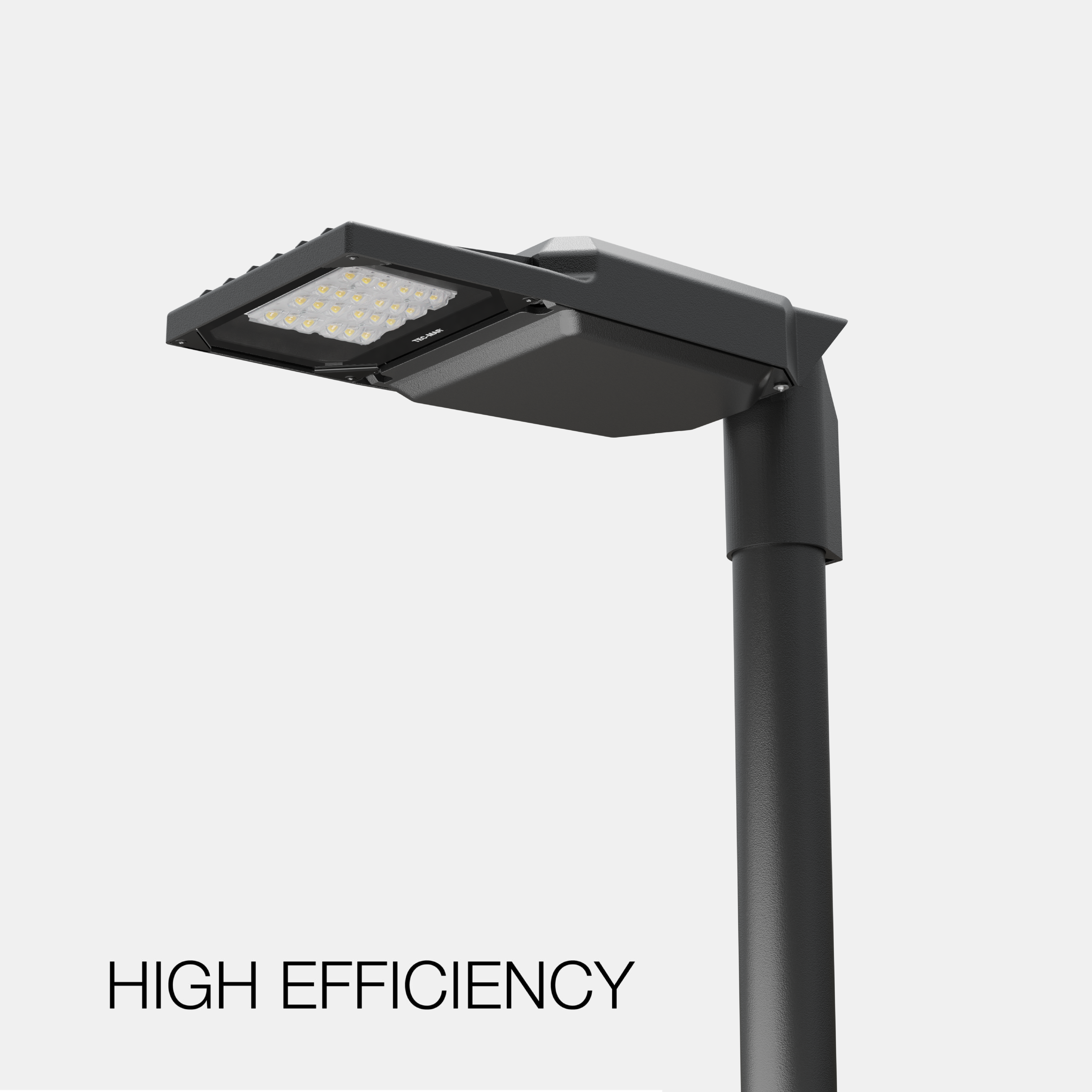

LED fixture for ‘lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. High-performance PMMA optics, available in three types: asymmetrical medium 45° street optic IESNA Type II, asymmetrical wide street optic EN13201 Class ME and cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, NOVA - 9210, art. 9210 Nova, Street lighting, art. 9210 Nova
Models: 270
Color: Anthracite
Catalogue abstract
Installation instructions

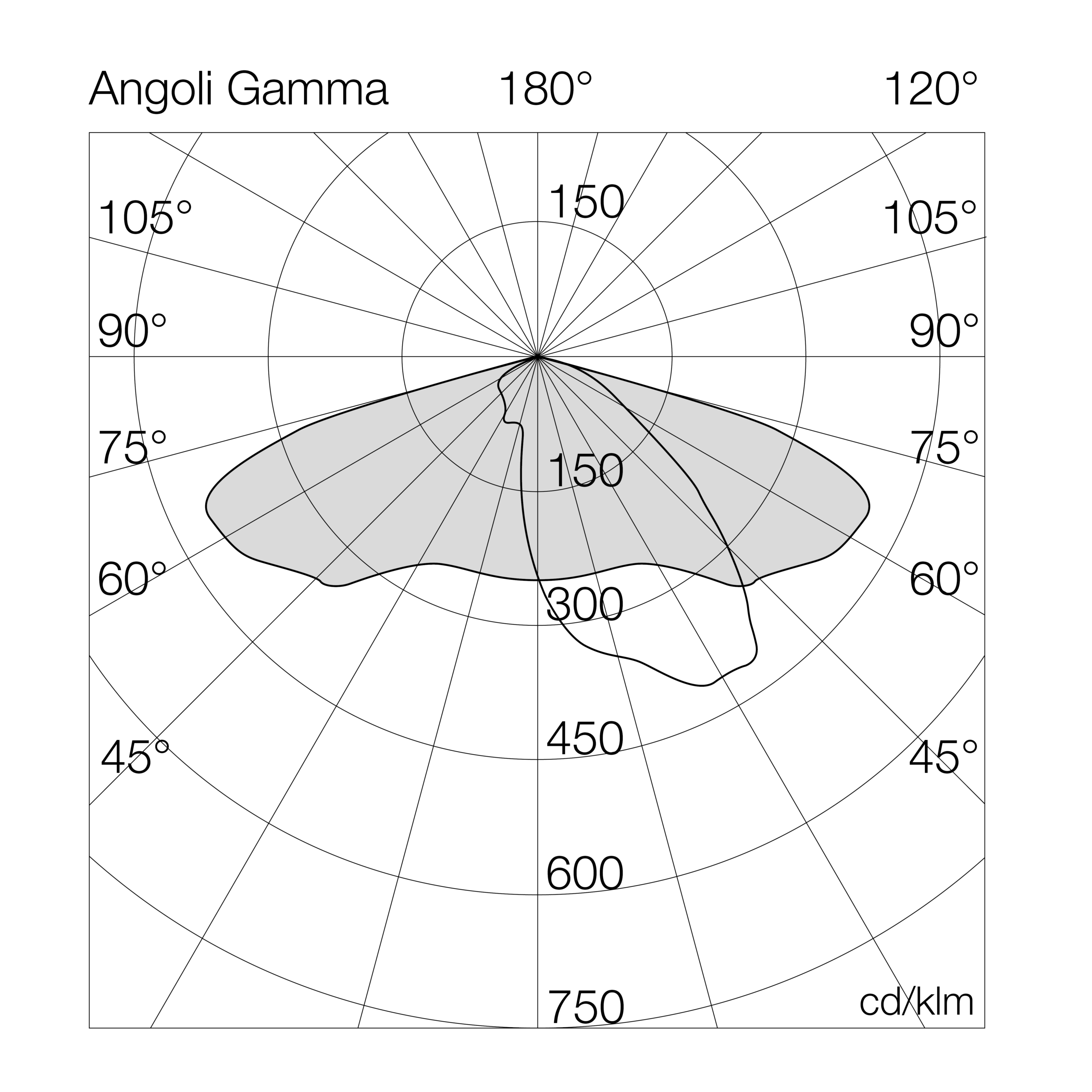

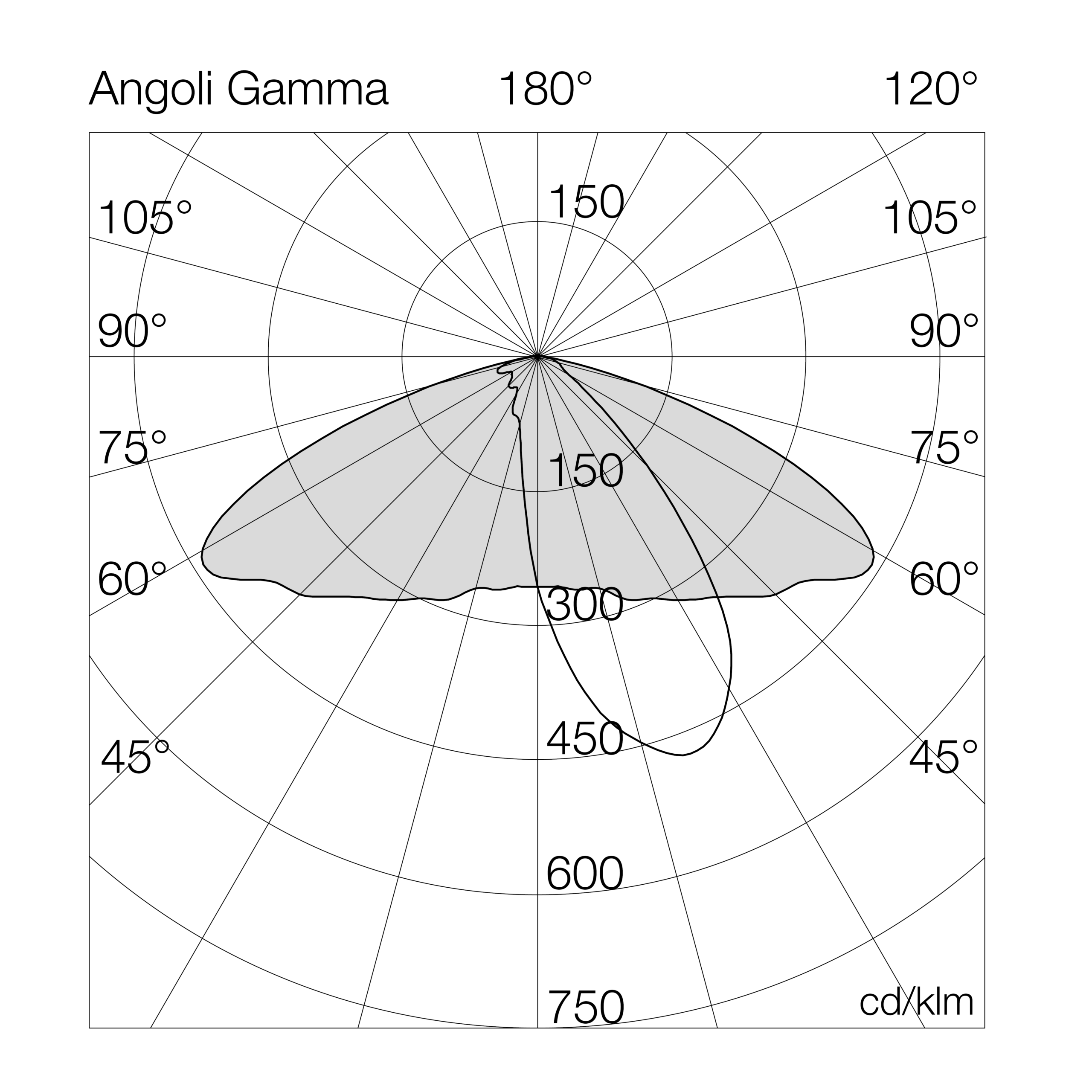

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9210T23= 3000°K (CRI >70)012044EL= on/off
4= 4000°K (CRI >70)014050LD= dali 2
018052MD= virtual midnight
022055DZ= zagha socket D4i
024056SZ= zagha socket D4i up&down
025060
026062
028068
030075
034080
035092
036105
040120
041

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9210T24012EL12-4000°K - CRI>70on/off223318647523075-3.85
9210T24024EL24-4000°K - CRI>70on/off446618647523075-3.85
9210T24014EL14-4000°K - CRI>70on/off253718147523075-3.85
9210T24028EL28-4000°K - CRI>70on/off507418147523075-3.85
9210T24018EL18-4000°K - CRI>70on/off313417447523075-3.85
9210T24036EL36-4000°K - CRI>70on/off626917447523075-3.85
9210T24022EL22-4000°K - CRI>70on/off371816947523075-3.85
9210T24044EL44-4000°K - CRI>70on/off743516947523075-3.85
9210T24026EL26-4000°K - CRI>70on/off427616447523075-3.85
9210T24052EL52-4000°K - CRI>70on/off855316447523075-3.85
9210T24030EL30-4000°K - CRI>70on/off482516147523075-3.85
9210T24060EL60-4000°K - CRI>70on/off965016147523075-3.85
9210T24035EL35-4000°K - CRI>70on/off534615347523075-3.85
9210T24068EL68-4000°K - CRI>70on/off1069315747523075-3.85
9210T24041EL41-4000°K - CRI>70on/off611614947523075-3.85
9210T24080EL80-4000°K - CRI>70on/off1223215347523075-3.85
9210T24025EL25-4000°K - CRI>70on/off383015347523075-3.85
9210T24034EL34-4000°K - CRI>70on/off510115047523075-3.85
9210T24040EL40-4000°K - CRI>70on/off601315047523075-3.85
9210T24050EL50-4000°K - CRI>70on/off749515047523075-3.85

Accessories
