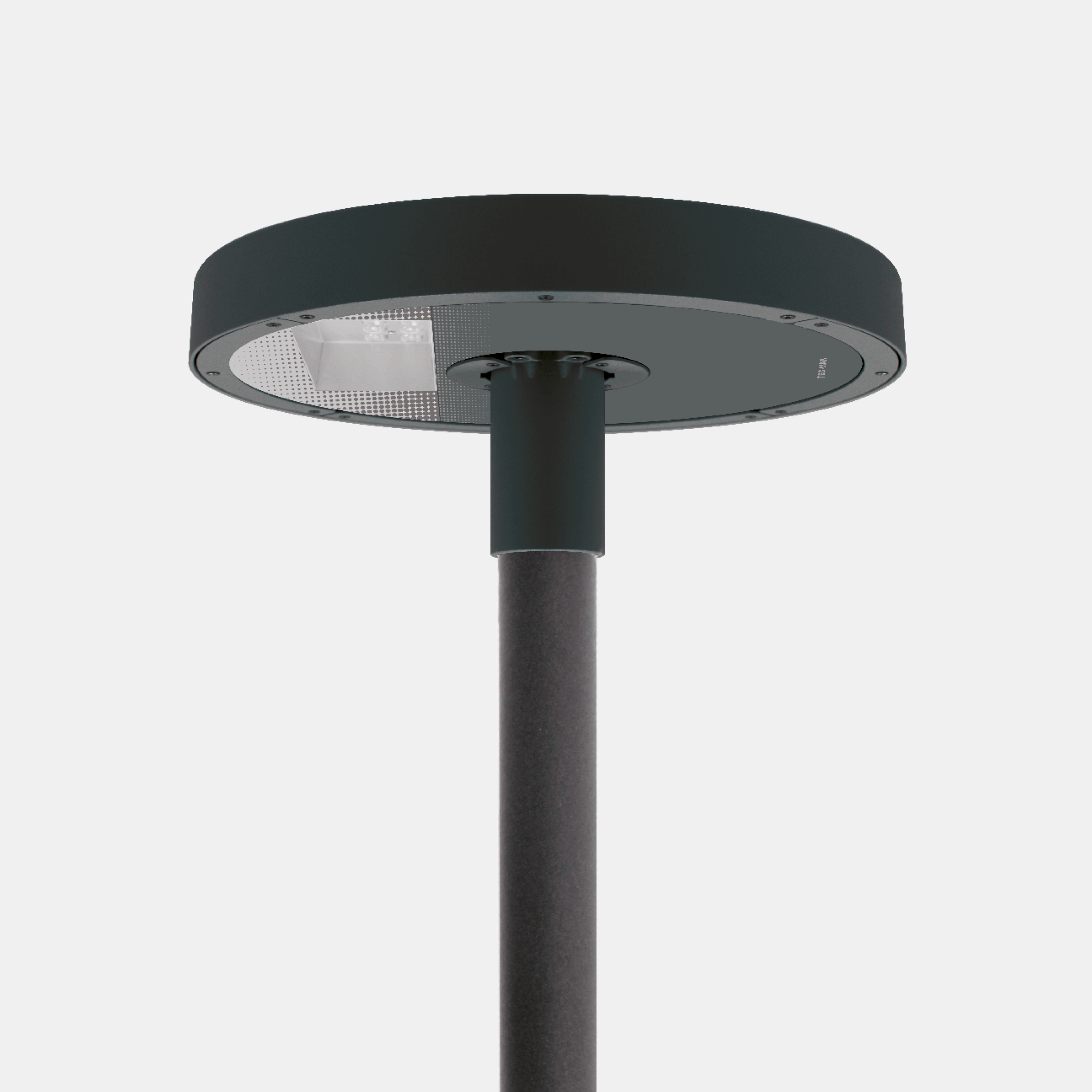

GEO – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color anthracite, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical pedestrian and cycle street lighting, Class P (type II/III).

Categories: Led, GEO - 9300, Street lighting, GEO

Models: 240

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
9300	CP	22	= ambra (CRI >70)	08	24	EL	= on/off
		30	= 3000°K (CRI >70)	12	27	LM	= 1-10v
		40	= 4000°K (CRI >70)	14	29	LD	= dali 2
		50	= 5000°K (CRI >70)	16	34	MD	= virtual midnight
				17	42	DZ	= zhaga socket D4i
				21	54

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
9300CP4008EL	8	-	4000°K - CRI>70	on/off	1416	177	460	170	55	-	7.2
9300CP4016EL	16	-	4000°K - CRI>70	on/off	2832	177	460	170	55	-	7.2
9300CP4012EL	12	-	4000°K - CRI>70	on/off	1985	165	460	170	55	-	7.2
9300CP4024EL	24	-	4000°K - CRI>70	on/off	3971	165	460	170	55	-	7.2
9300CP4014EL	14	-	4000°K - CRI>70	on/off	2352	168	460	170	55	-	7.2
9300CP4029EL	29	-	4000°K - CRI>70	on/off	4705	162	460	170	55	-	7.2
9300CP4017EL	17	-	4000°K - CRI>70	on/off	2709	159	460	170	55	-	7.2
9300CP4034EL	34	-	4000°K - CRI>70	on/off	5418	159	460	170	55	-	7.2
9300CP4021EL	21	-	4000°K - CRI>70	on/off	3161	151	460	170	55	-	7.2
9300CP4042EL	42	-	4000°K - CRI>70	on/off	6448	154	460	170	55	-	7.2
9300CP4027EL	27	-	4000°K - CRI>70	on/off	3872	143	460	170	55	-	7.2
9300CP4054EL	54	-	4000°K - CRI>70	on/off	7744	143	460	170	55	-	7.2
9300CP4008LM	8	-	4000°K - CRI>70	1-10v	1416	177	460	170	55	-	7.2
9300CP4016LM	16	-	4000°K - CRI>70	1-10v	2832	177	460	170	55	-	7.2
9300CP4012LM	12	-	4000°K - CRI>70	1-10v	1985	165	460	170	55	-	7.2
9300CP4024LM	24	-	4000°K - CRI>70	1-10v	3971	165	460	170	55	-	7.2
9300CP4014LM	14	-	4000°K - CRI>70	1-10v	2352	168	460	170	55	-	7.2
9300CP4029LM	29	-	4000°K - CRI>70	1-10v	4705	162	460	170	55	-	7.2
9300CP4017LM	17	-	4000°K - CRI>70	1-10v	2709	159	460	170	55	-	7.2
9300CP4034LM	34	-	4000°K - CRI>70	1-10v	5418	159	460	170	55	-	7.2
