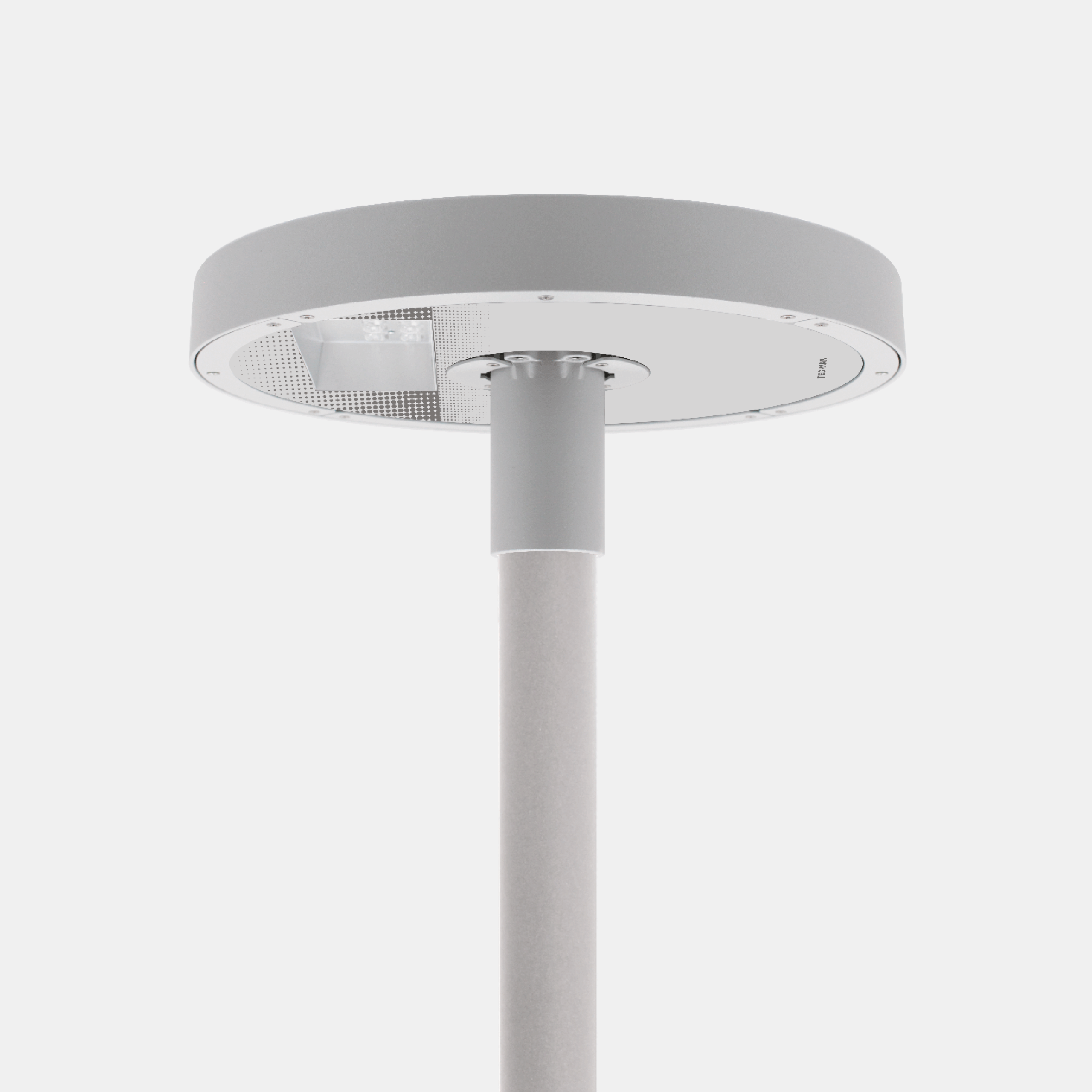

GEO – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color silver, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical pedestrian and cycle street lighting, Class P (type II/III).

Categories: Led, GEO - 9300, Street lighting, GEO

Models: 240

Color: Silver

Catalogue abstract

Installation instructions

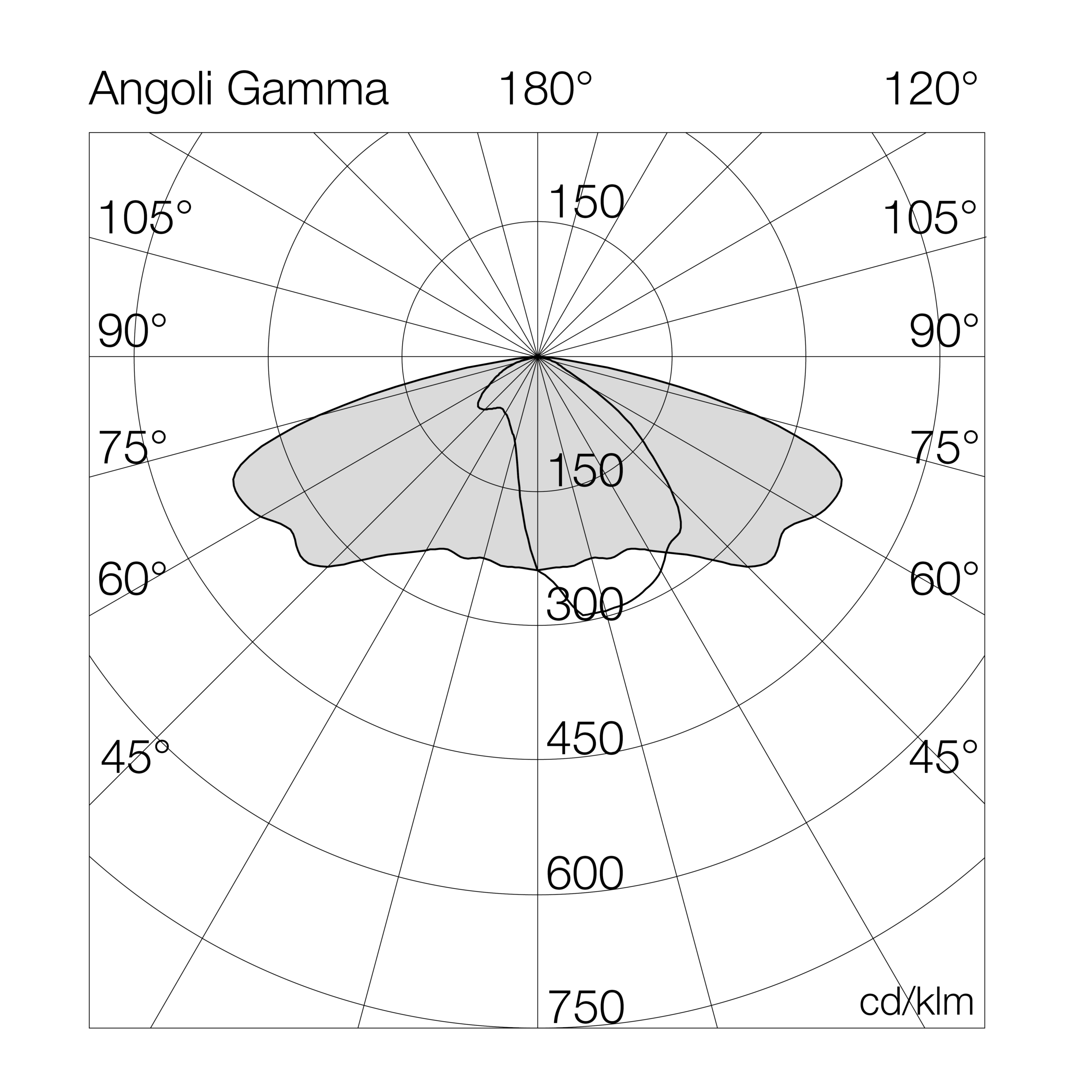

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
9300	CP	22	= ambra (CRI >70)	08	24	GL	= on/off
		30	= 3000°K (CRI >70)	12	27	GM	= 1-10v
		40	= 4000°K (CRI >70)	14	29	GD	= dali 2
		50	= 5000°K (CRI >70)	16	34	MG	= virtual midnight
				17	42	ZD	= zhaga socket D4i
				21	54

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
9300CP4008GL	8	-	4000°K - CRI>70	on/off	1416	177	460	170	55	-	7.2
9300CP4016GL	16	-	4000°K - CRI>70	on/off	2832	177	460	170	55	-	7.2
9300CP4012GL	12	-	4000°K - CRI>70	on/off	1985	165	460	170	55	-	7.2
9300CP4024GL	24	-	4000°K - CRI>70	on/off	3971	165	460	170	55	-	7.2
9300CP4014GL	14	-	4000°K - CRI>70	on/off	2352	168	460	170	55	-	7.2
9300CP4029GL	29	-	4000°K - CRI>70	on/off	4705	162	460	170	55	-	7.2
9300CP4017GL	17	-	4000°K - CRI>70	on/off	2709	159	460	170	55	-	7.2
9300CP4034GL	34	-	4000°K - CRI>70	on/off	5418	159	460	170	55	-	7.2
9300CP4021GL	21	-	4000°K - CRI>70	on/off	3161	151	460	170	55	-	7.2
9300CP4042GL	42	-	4000°K - CRI>70	on/off	6448	154	460	170	55	-	7.2
9300CP4027GL	27	-	4000°K - CRI>70	on/off	3872	143	460	170	55	-	7.2
9300CP4054GL	54	-	4000°K - CRI>70	on/off	7744	143	460	170	55	-	7.2
9300CP4008GM	8	-	4000°K - CRI>70	1-10v	1416	177	460	170	55	-	7.2
9300CP4016GM	16	-	4000°K - CRI>70	1-10v	2832	177	460	170	55	-	7.2
9300CP4012GM	12	-	4000°K - CRI>70	1-10v	1985	165	460	170	55	-	7.2
9300CP4024GM	24	-	4000°K - CRI>70	1-10v	3971	165	460	170	55	-	7.2
9300CP4014GM	14	-	4000°K - CRI>70	1-10v	2352	168	460	170	55	-	7.2
9300CP4029GM	29	-	4000°K - CRI>70	1-10v	4705	162	460	170	55	-	7.2
9300CP4017GM	17	-	4000°K - CRI>70	1-10v	2709	159	460	170	55	-	7.2
9300CP4034GM	34	-	4000°K - CRI>70	1-10v	5418	159	460	170	55	-	7.2
