art.-9300-geo-cp-me-grafite

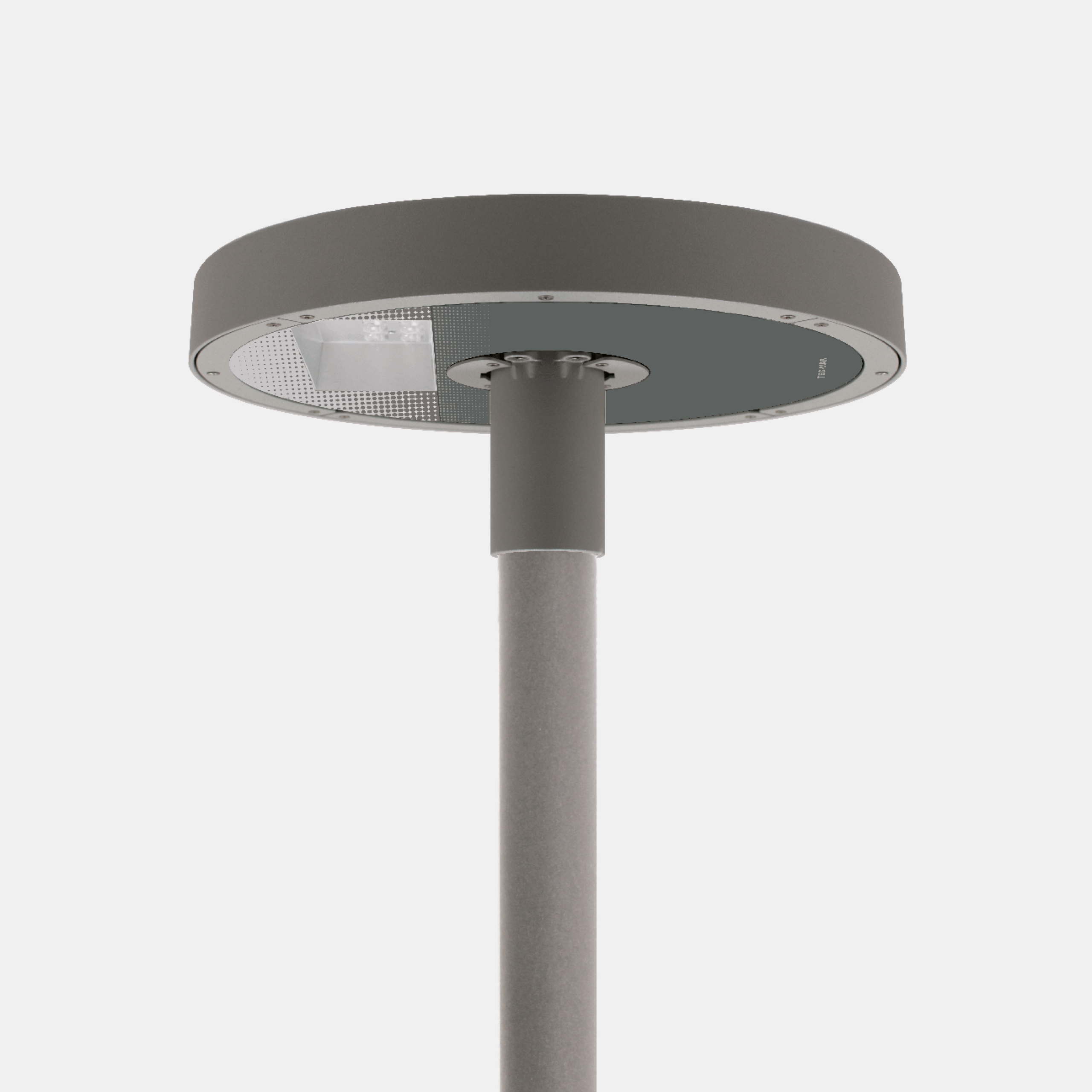

GEO – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color graphite, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical pedestrian and cycle street lighting, Class P (type II/III).
Categories: Led, GEO - 9300, Street lighting, GEO
Models: 240
Color: Graphite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300CP22= ambra (CRI >70)0824RL= on/off
30= 3000°K (CRI >70)1227RM = 1-10v
40= 4000°K (CRI >70)1429RD= dali 2
50= 5000°K (CRI >70)1634MR= virtual midnight
1742RZ= zhaga socket D4i
2154

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9300CP4008RL8-4000°K - CRI>70on/off141617746017055-7.2
9300CP4016RL16-4000°K - CRI>70on/off283217746017055-7.2
9300CP4012RL12-4000°K - CRI>70on/off198516546017055-7.2
9300CP4024RL24-4000°K - CRI>70on/off397116546017055-7.2
9300CP4014RL14-4000°K - CRI>70on/off235216846017055-7.2
9300CP4029RL29-4000°K - CRI>70on/off470516246017055-7.2
9300CP4017RL17-4000°K - CRI>70on/off270915946017055-7.2
9300CP4034RL34-4000°K - CRI>70on/off541815946017055-7.2
9300CP4021RL21-4000°K - CRI>70on/off316115146017055-7.2
9300CP4042RL42-4000°K - CRI>70on/off644815446017055-7.2
9300CP4027RL27-4000°K - CRI>70on/off387214346017055-7.2
9300CP4054RL54-4000°K - CRI>70on/off774414346017055-7.2
9300CP4008RM8-4000°K - CRI>701-10v141617746017055-7.2
9300CP4016RM16-4000°K - CRI>701-10v283217746017055-7.2
9300CP4012RM12-4000°K - CRI>701-10v198516546017055-7.2
9300CP4024RM24-4000°K - CRI>701-10v397116546017055-7.2
9300CP4014RM14-4000°K - CRI>701-10v235216846017055-7.2
9300CP4029RM29-4000°K - CRI>701-10v470516246017055-7.2
9300CP4017RM17-4000°K - CRI>701-10v270915946017055-7.2
9300CP4034RM34-4000°K - CRI>701-10v541815946017055-7.2
