art.-9300-geo-ma-corten

GEO/MA

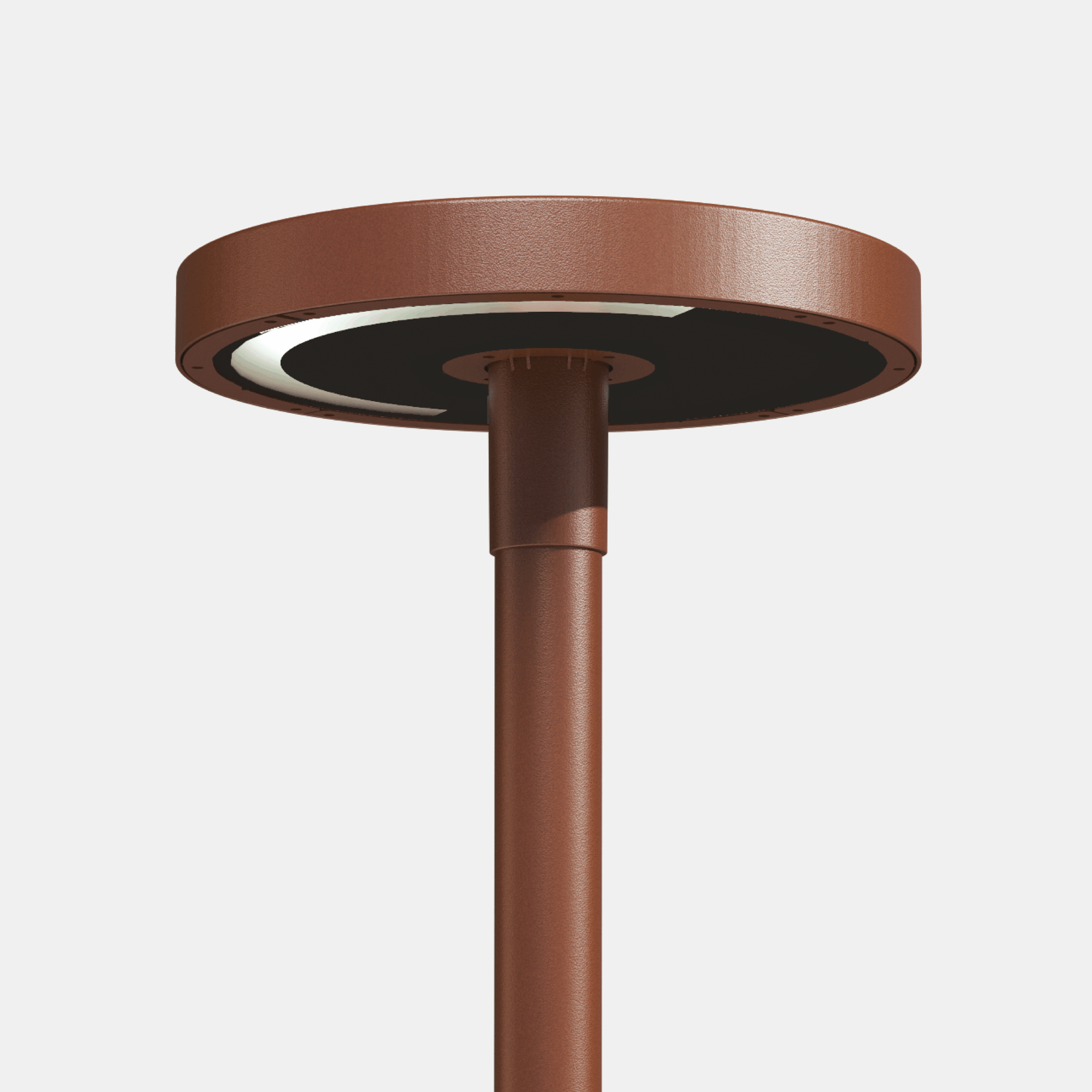

Led urban and street lighting fixture. It is a versatile product, ideal in both historical and modern contexts. In fact, the product was created to illuminate city center, parks, squares, cycle paths, residential areas but also avenues and main streets. Die-cast aluminum body painted with thermosetting powder anticorrosion polyester in corten color, transparent tempered glass thickness 4 mm, silicone gasket, electronic driver 220-240V 50/60Hz. Pole attachment included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GEO - 9300, GEO, art. 9300 Geo, Street lighting
Models: 64
Color: Corten
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300MA22= ambra (CRI >70)17CL= on/off
30= 3000°K (CRI >70)25CM= 1-10v
40= 4000°K (CRI >70)37CD= dali 2
50= 5000°K (CRI >70)47MC= virtual midnight
CZ= zhaga socket D4i

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9300MA4017CL17-4000°K - CRI>70on/off200111846017055-7.2
9300MA4025CL25-4000°K - CRI>70on/off276411146017055-7.2
9300MA4037CL37-4000°K - CRI>70on/off404210946017055-7.2
9300MA4047CL47-4000°K - CRI>70on/off491210546017055-7.2
9300MA4017CM17-4000°K - CRI>701-10v200111846017055-7.2
9300MA4025CM25-4000°K - CRI>701-10v276411146017055-7.2
9300MA4037CM37-4000°K - CRI>701-10v404210946017055-7.2
9300MA4047CM47-4000°K - CRI>701-10v491210546017055-7.2
9300MA4017CD17-4000°K - CRI>70dali 2200111846017055-7.2
9300MA4025CD25-4000°K - CRI>70dali 2276411146017055-7.2
9300MA4037CD37-4000°K - CRI>70dali 2404210946017055-7.2
9300MA4047CD47-4000°K - CRI>70dali 2491210546017055-7.2
9300MA4017CZ17-4000°K - CRI>70zhaga socket D4i200111846017055-7.2
9300MA4025CZ25-4000°K - CRI>70zhaga socket D4i276411146017055-7.2
9300MA4037CZ37-4000°K - CRI>70zhaga socket D4i404210946017055-7.2
9300MA4047CZ47-4000°K - CRI>70zhaga socket D4i491210546017055-7.2
9300MA3017CL17-3000°K - CRI>70on/off199111746017055-7.2
9300MA3025CL25-3000°K - CRI>70on/off275011046017055-7.2
9300MA3037CL37-3000°K - CRI>70on/off402210946017055-7.2
9300MA3047CL47-3000°K - CRI>70on/off488710446017055-7.2
