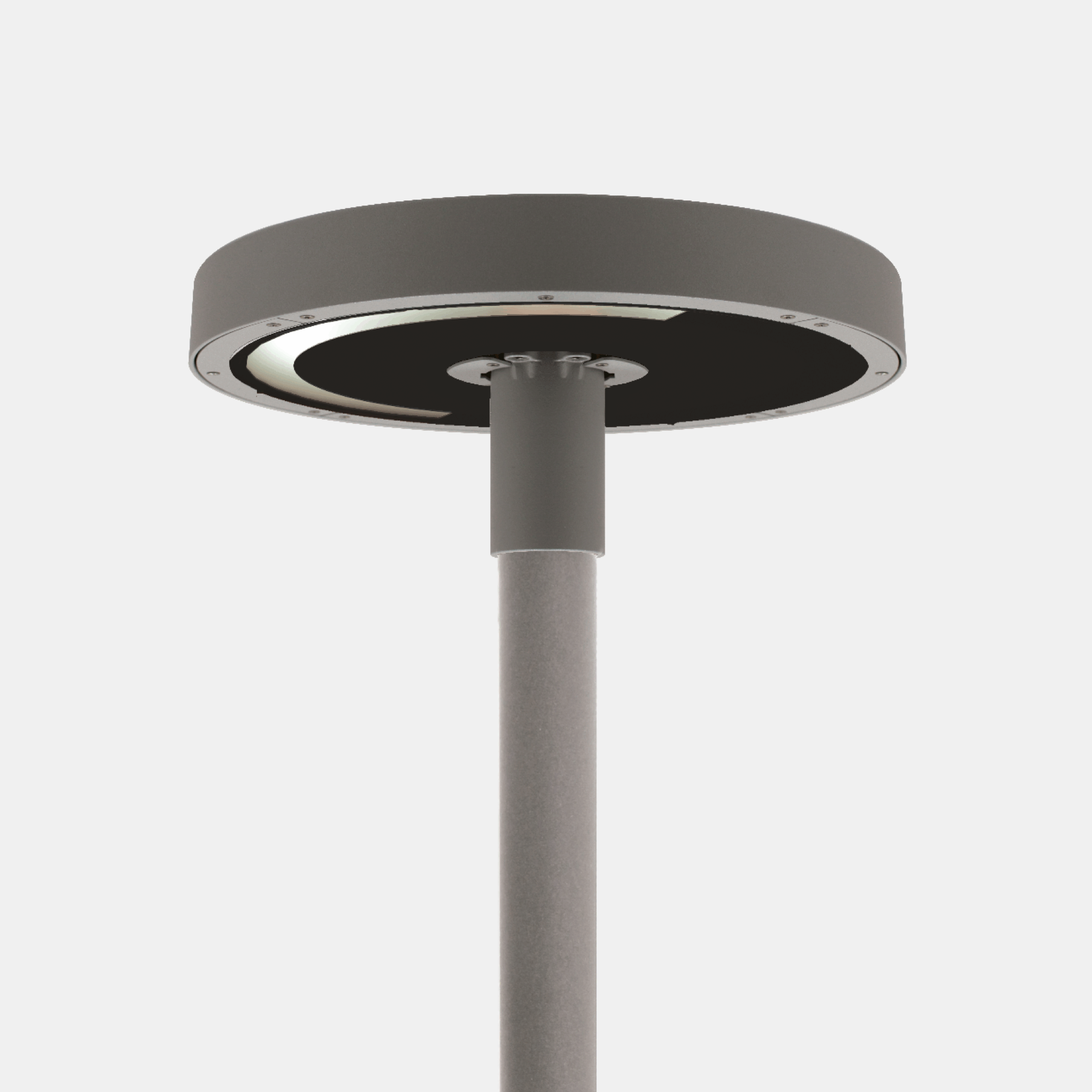

art.-9300-geo-ma-grafite

GEO – Mod. MA

(180° rotosymmetric optics)

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color graphite, 4 mm thick high-transparency tempered glass, silicone gasket. 180° rotosymmetric optics.
Categories: Led, GEO - 9300, Street lighting, GEO
Models: 80
Color: Graphite
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300MA22= ambra (CRI >70)17RL= on/off
30= 3000°K (CRI >70)25RM= 1-10v
40= 4000°K (CRI >70)37RD= dali 2
50= 5000°K (CRI >70)47MR= virtual midnight
RZ= zhaga socket D4i

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9300MA4017RL17-4000°K - CRI>70on/off200111846017055-7.2
9300MA4025RL25-4000°K - CRI>70on/off276411146017055-7.2
9300MA4037RL37-4000°K - CRI>70on/off404210946017055-7.2
9300MA4047RL47-4000°K - CRI>70on/off491210546017055-7.2
9300MA4017RM17-4000°K - CRI>701-10v200111846017055-7.2
9300MA4025RM25-4000°K - CRI>701-10v276411146017055-7.2
9300MA4037RM37-4000°K - CRI>701-10v404210946017055-7.2
9300MA4047RM47-4000°K - CRI>701-10v491210546017055-7.2
9300MA4017RD17-4000°K - CRI>70dali 2200111846017055-7.2
9300MA4025RD25-4000°K - CRI>70dali 2276411146017055-7.2
9300MA4037RD37-4000°K - CRI>70dali 2404210946017055-7.2
9300MA4047RD47-4000°K - CRI>70dali 2491210546017055-7.2
9300MA4017MR17-4000°K - CRI>70virtual midnight200111846017055-7.2
9300MA4025MR25-4000°K - CRI>70virtual midnight276411146017055-7.2
9300MA4037MR37-4000°K - CRI>70virtual midnight404210946017055-7.2
9300MA4047MR47-4000°K - CRI>70virtual midnight491210546017055-7.2
9300MA4017RZ17-4000°K - CRI>70zhaga socket D4i200111846017055-7.2
9300MA4025RZ25-4000°K - CRI>70zhaga socket D4i276411146017055-7.2
9300MA4037RZ37-4000°K - CRI>70zhaga socket D4i404210946017055-7.2
9300MA4047RZ47-4000°K - CRI>70zhaga socket D4i491210546017055-7.2
