art.-9300-geo-ms-antracite

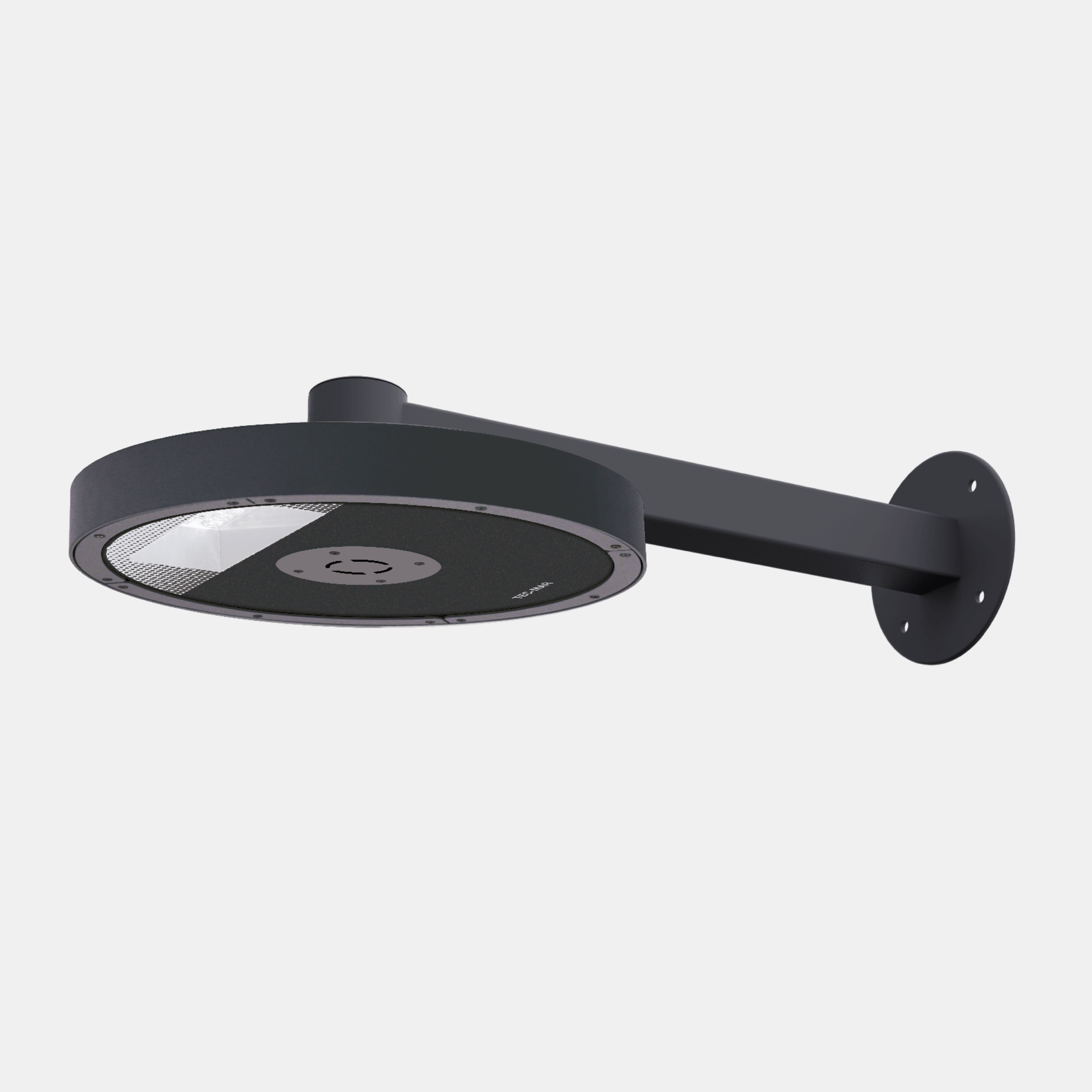

GEO – Mod. MS

(Wide asymmetric street optics Class ME)

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color anthracite, 4 mm thick high-transparency tempered glass, silicone gasket. Wide asymmetric street optics Class ME.
Categories: Led, GEO - 9300, Street lighting, GEO
Models: 240
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300MS22= ambra (CRI >70)0824EL= on/off
30= 3000°K (CRI >70)1227LM= 1-10v
40= 4000°K (CRI >70)1429LD= dali 2
50= 5000°K (CRI >70)1634MD= virtual midnight
1742DZ= zhaga socket D4i
2154

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9300MS4008EL8-4000°K - CRI>70on/off142417883546023060010.8
9300MS4016EL16-4000°K - CRI>70on/off284817883546023060010.8
9300MS4012EL12-4000°K - CRI>70on/off199716683546023060010.8
9300MS4024EL24-4000°K - CRI>70on/off399316683546023060010.8
9300MS4014EL14-4000°K - CRI>70on/off236516983546023060010.8
9300MS4029EL29-4000°K - CRI>70on/off473216383546023060010.8
9300MS4017EL17-4000°K - CRI>70on/off272416083546023060010.8
9300MS4034EL34-4000°K - CRI>70on/off544916083546023060010.8
9300MS4021EL21-4000°K - CRI>70on/off317915183546023060010.8
9300MS4042EL42-4000°K - CRI>70on/off648515483546023060010.8
9300MS4027EL27-4000°K - CRI>70on/off389414483546023060010.8
9300MS4054EL54-4000°K - CRI>70on/off778814483546023060010.8
9300MS4008LM8-4000°K - CRI>701-10v142417883546023060010.8
9300MS4016LM16-4000°K - CRI>701-10v284817883546023060010.8
9300MS4012LM12-4000°K - CRI>701-10v199716683546023060010.8
9300MS4024LM24-4000°K - CRI>701-10v399316683546023060010.8
9300MS4014LM14-4000°K - CRI>701-10v236516983546023060010.8
9300MS4029LM29-4000°K - CRI>701-10v473216383546023060010.8
9300MS4017LM17-4000°K - CRI>701-10v272416083546023060010.8
9300MS4034LM34-4000°K - CRI>701-10v544916083546023060010.8

Accessories
