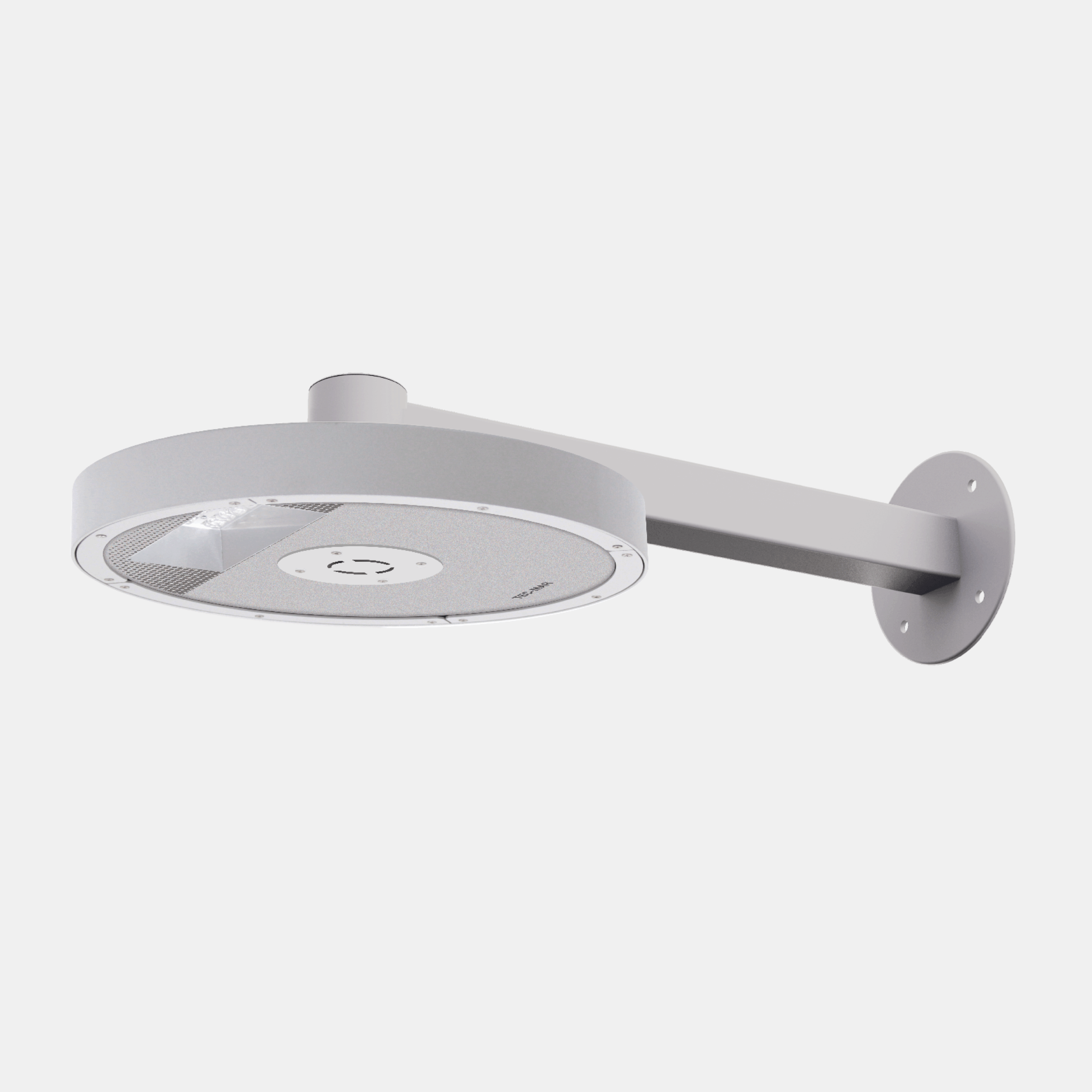

GEO – Mod. MS

(Wide asymmetric street optics Class ME)

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color silver, 4 mm thick high-transparency tempered glass, silicone gasket. Wide asymmetric street optics Class ME.

Categories: Led, GEO - 9300, Street lighting, GEO

Models: 240

Color: Silver

Catalogue abstract

Installation instructions

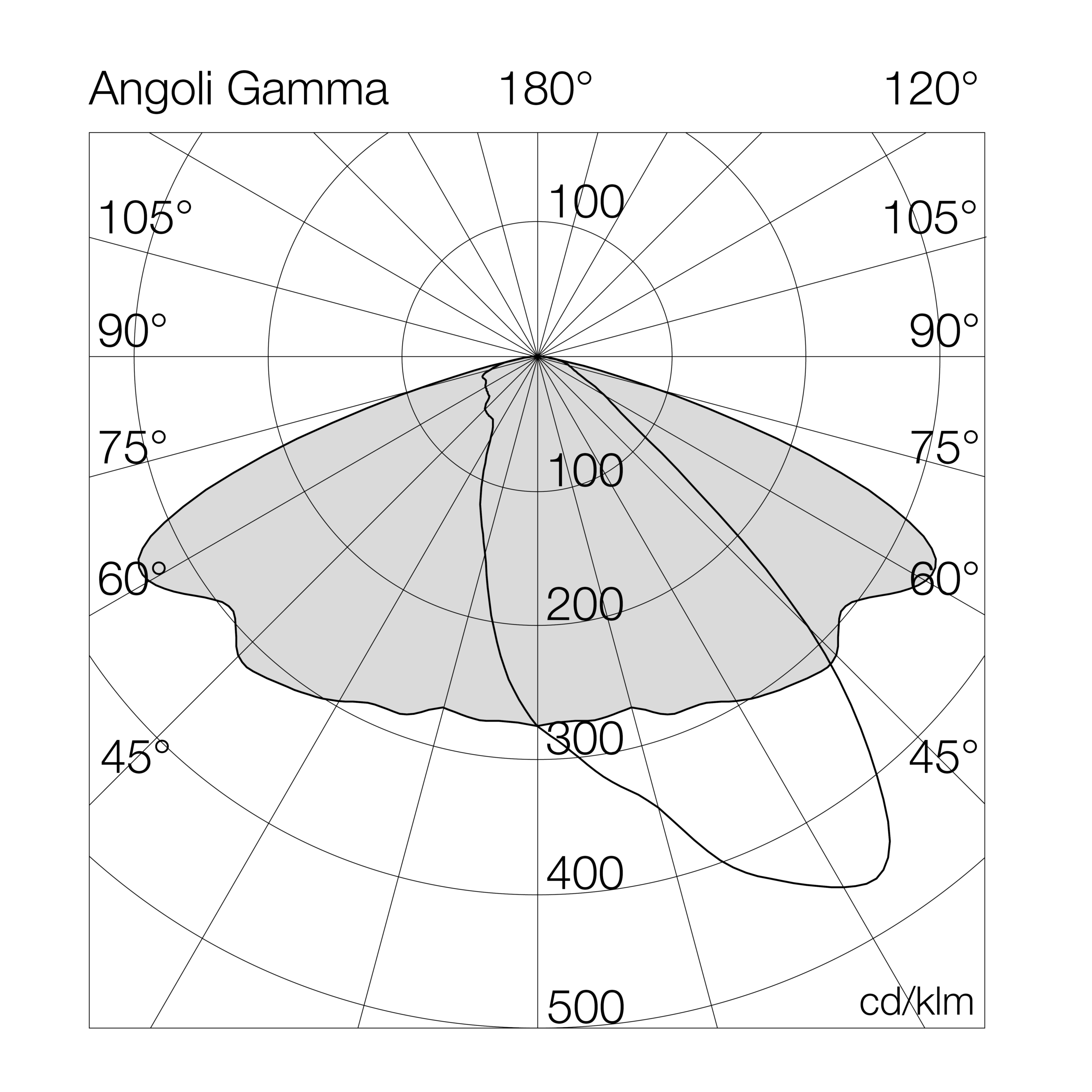

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
9300	MS	22	= ambra (CRI >70)	08	24	GL	= on/off
		30	= 3000°K (CRI >70)	12	27	GM	= 1-10v
		40	= 4000°K (CRI >70)	14	29	GD	= dali 2
		50	= 5000°K (CRI >70)	16	34	MG	= virtual midnight
				17	42	ZD	= zhaga socket D4i
				21	54

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
9300MS4008GL	8	-	4000°K - CRI>70	on/off	1424	178	835	460	230	600	10.8
9300MS4016GL	16	-	4000°K - CRI>70	on/off	2848	178	835	460	230	600	10.8
9300MS4012GL	12	-	4000°K - CRI>70	on/off	1997	166	835	460	230	600	10.8
9300MS4024GL	24	-	4000°K - CRI>70	on/off	3993	166	835	460	230	600	10.8
9300MS4014GL	14	-	4000°K - CRI>70	on/off	2365	169	835	460	230	600	10.8
9300MS4029GL	29	-	4000°K - CRI>70	on/off	4732	163	835	460	230	600	10.8
9300MS4017GL	17	-	4000°K - CRI>70	on/off	2724	160	835	460	230	600	10.8
9300MS4034GL	34	-	4000°K - CRI>70	on/off	5449	160	835	460	230	600	10.8
9300MS4021GL	21	-	4000°K - CRI>70	on/off	3179	151	835	460	230	600	10.8
9300MS4042GL	42	-	4000°K - CRI>70	on/off	6485	154	835	460	230	600	10.8
9300MS4027GL	27	-	4000°K - CRI>70	on/off	3894	144	835	460	230	600	10.8
9300MS4054GL	54	-	4000°K - CRI>70	on/off	7788	144	835	460	230	600	10.8
9300MS4008GM	8	-	4000°K - CRI>70	1-10v	1424	178	835	460	230	600	10.8
9300MS4016GM	16	-	4000°K - CRI>70	1-10v	2848	178	835	460	230	600	10.8
9300MS4012GM	12	-	4000°K - CRI>70	1-10v	1997	166	835	460	230	600	10.8
9300MS4024GM	24	-	4000°K - CRI>70	1-10v	3993	166	835	460	230	600	10.8
9300MS4014GM	14	-	4000°K - CRI>70	1-10v	2365	169	835	460	230	600	10.8
9300MS4029GM	29	-	4000°K - CRI>70	1-10v	4732	163	835	460	230	600	10.8
9300MS4017GM	17	-	4000°K - CRI>70	1-10v	2724	160	835	460	230	600	10.8
9300MS4034GM	34	-	4000°K - CRI>70	1-10v	5449	160	835	460	230	600	10.8
