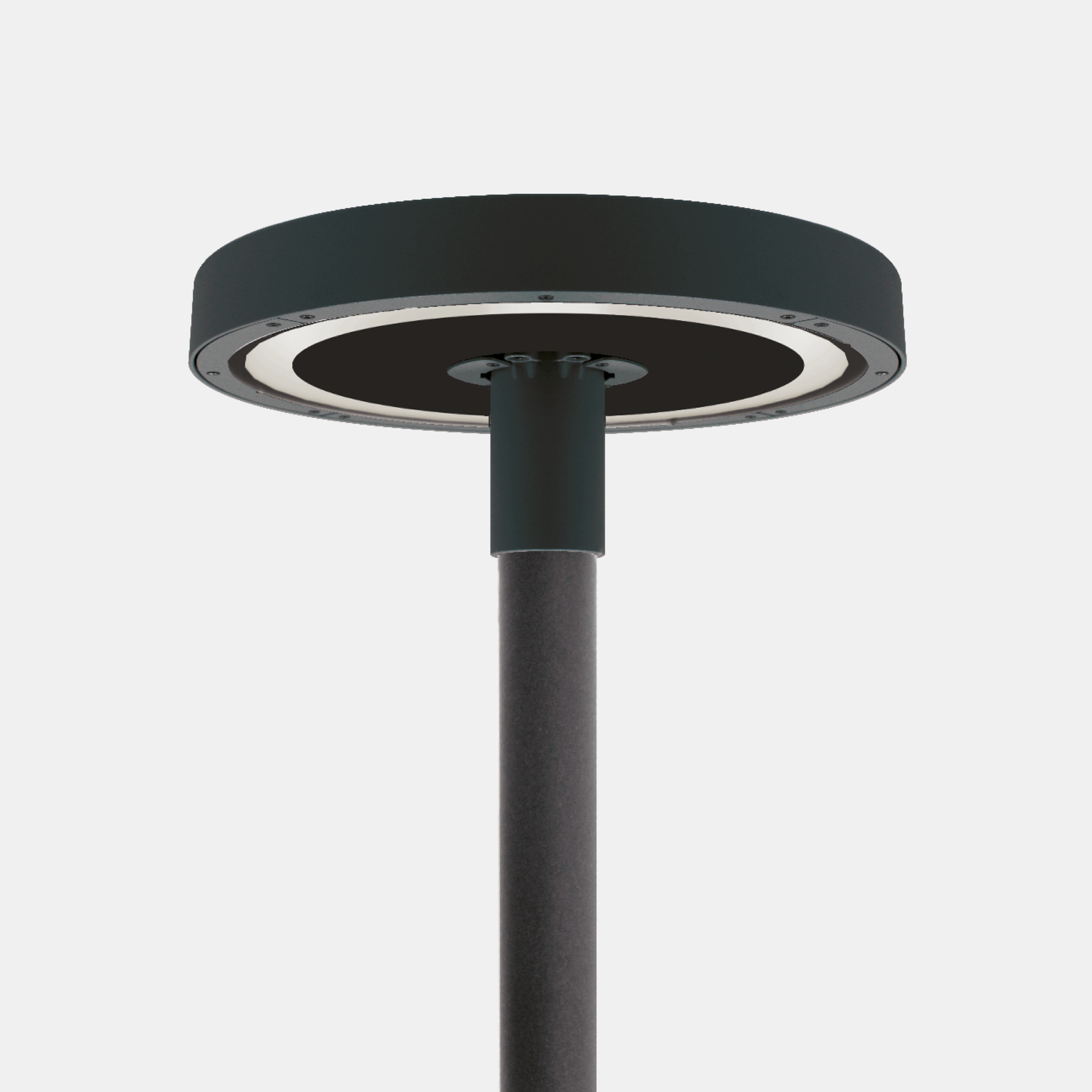

art.-9300-geo-ra-antracite

GEO – Mod. RA

(360° rotosymmetric optics)

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color anthracite, 4 mm thick high-transparency tempered glass, silicone gasket. 360° rotosymmetric optics.
Categories: Led, GEO - 9300, Street lighting, GEO
Models: 100
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300RA22= ambra (CRI >70)17EL= on/off
30= 3000°K (CRI >70)25LM= 1-10v
40= 4000°K (CRI >70)37LD= dali 2
50= 5000°K (CRI >70)47MD= virtual midnight
54DZ= zhaga socket D4i

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9300RA4017EL17-4000°K - CRI>70on/off202911946017055-7.2
9300RA4025EL25-4000°K - CRI>70on/off282811346017055-7.2
9300RA4037EL37-4000°K - CRI>70on/off419611346017055-7.2
9300RA4047EL47-4000°K - CRI>70on/off515111046017055-7.2
9300RA4054EL54-4000°K - CRI>70on/off590210946017055-7.2
9300RA4017LM17-4000°K - CRI>701-10v202911946017055-7.2
9300RA4025LM25-4000°K - CRI>701-10v282811346017055-7.2
9300RA4037LM37-4000°K - CRI>701-10v419611346017055-7.2
9300RA4047LM47-4000°K - CRI>701-10v515111046017055-7.2
9300RA4054LM54-4000°K - CRI>701-10v590210946017055-7.2
9300RA4017LD17-4000°K - CRI>70dali 2202911946017055-7.2
9300RA4025LD25-4000°K - CRI>70dali 2282811346017055-7.2
9300RA4037LD37-4000°K - CRI>70dali 2419611346017055-7.2
9300RA4047LD47-4000°K - CRI>70dali 2515111046017055-7.2
9300RA4054LD54-4000°K - CRI>70dali 2590210946017055-7.2
9300RA4017MD17-4000°K - CRI>70virtual midnight202911946017055-7.2
9300RA4025MD25-4000°K - CRI>70virtual midnight282811346017055-7.2
9300RA4037MD37-4000°K - CRI>70virtual midnight419611346017055-7.2
9300RA4047MD47-4000°K - CRI>70virtual midnight515111046017055-7.2
9300RA4054MD54-4000°K - CRI>70virtual midnight590210946017055-7.2

Accessories
