art.-9300-geo-ra-silver

GEO – Mod. RA

(360° rotosymmetric optics)

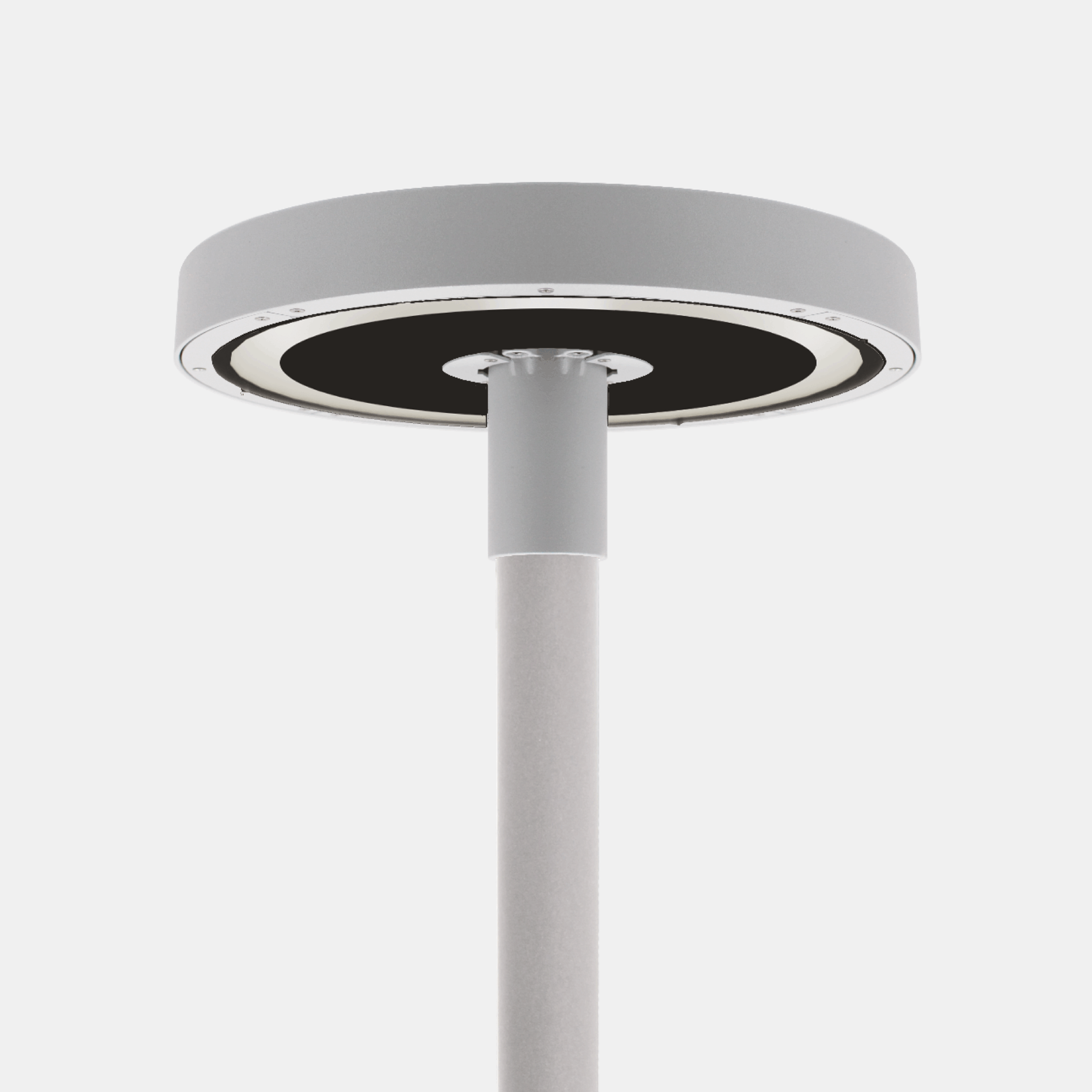

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color silver, 4 mm thick high-transparency tempered glass, silicone gasket. 360° rotosymmetric optics.
Categories: Led, GEO - 9300, Street lighting, GEO
Models: 100
Color: Silver
Catalogue abstract
Installation instructions

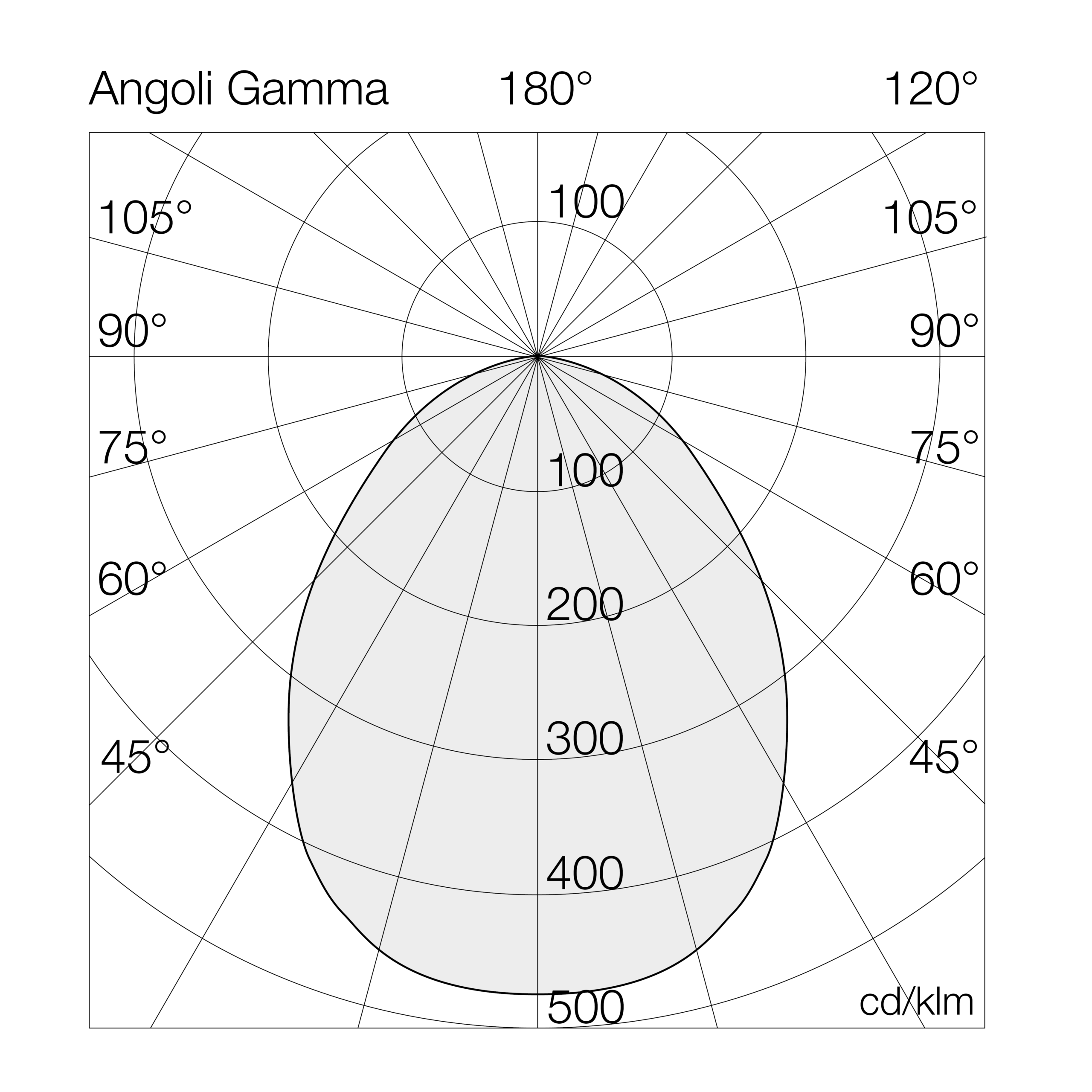

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300RA22= ambra (CRI >70)17GL= on/off
30= 3000°K (CRI >70)25GM= 1-10v
40= 4000°K (CRI >70)37GD= dali 2
50= 5000°K (CRI >70)47MG= virtual midnight
54ZD= zhaga socket D4i

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9300RA4017GL17-4000°K - CRI>70on/off202911946017055-7.2
9300RA4025GL25-4000°K - CRI>70on/off282811346017055-7.2
9300RA4037GL37-4000°K - CRI>70on/off419611346017055-7.2
9300RA4047GL47-4000°K - CRI>70on/off515111046017055-7.2
9300RA4054GL54-4000°K - CRI>70on/off590210946017055-7.2
9300RA4017GM17-4000°K - CRI>701-10v202911946017055-7.2
9300RA4025GM25-4000°K - CRI>701-10v282811346017055-7.2
9300RA4037GM37-4000°K - CRI>701-10v419611346017055-7.2
9300RA4047GM47-4000°K - CRI>701-10v515111046017055-7.2
9300RA4054GM54-4000°K - CRI>701-10v590210946017055-7.2
9300RA4017GD17-4000°K - CRI>70dali 2202911946017055-7.2
9300RA4025GD25-4000°K - CRI>70dali 2282811346017055-7.2
9300RA4037GD37-4000°K - CRI>70dali 2419611346017055-7.2
9300RA4047GD47-4000°K - CRI>70dali 2515111046017055-7.2
9300RA4054GD54-4000°K - CRI>70dali 2590210946017055-7.2
9300RA4017MG17-4000°K - CRI>70virtual midnight202911946017055-7.2
9300RA4025MG25-4000°K - CRI>70virtual midnight282811346017055-7.2
9300RA4037MG37-4000°K - CRI>70virtual midnight419611346017055-7.2
9300RA4047MG47-4000°K - CRI>70virtual midnight515111046017055-7.2
9300RA4054MG54-4000°K - CRI>70virtual midnight590210946017055-7.2

Accessories
