art.-9300-geo-ra-grafite

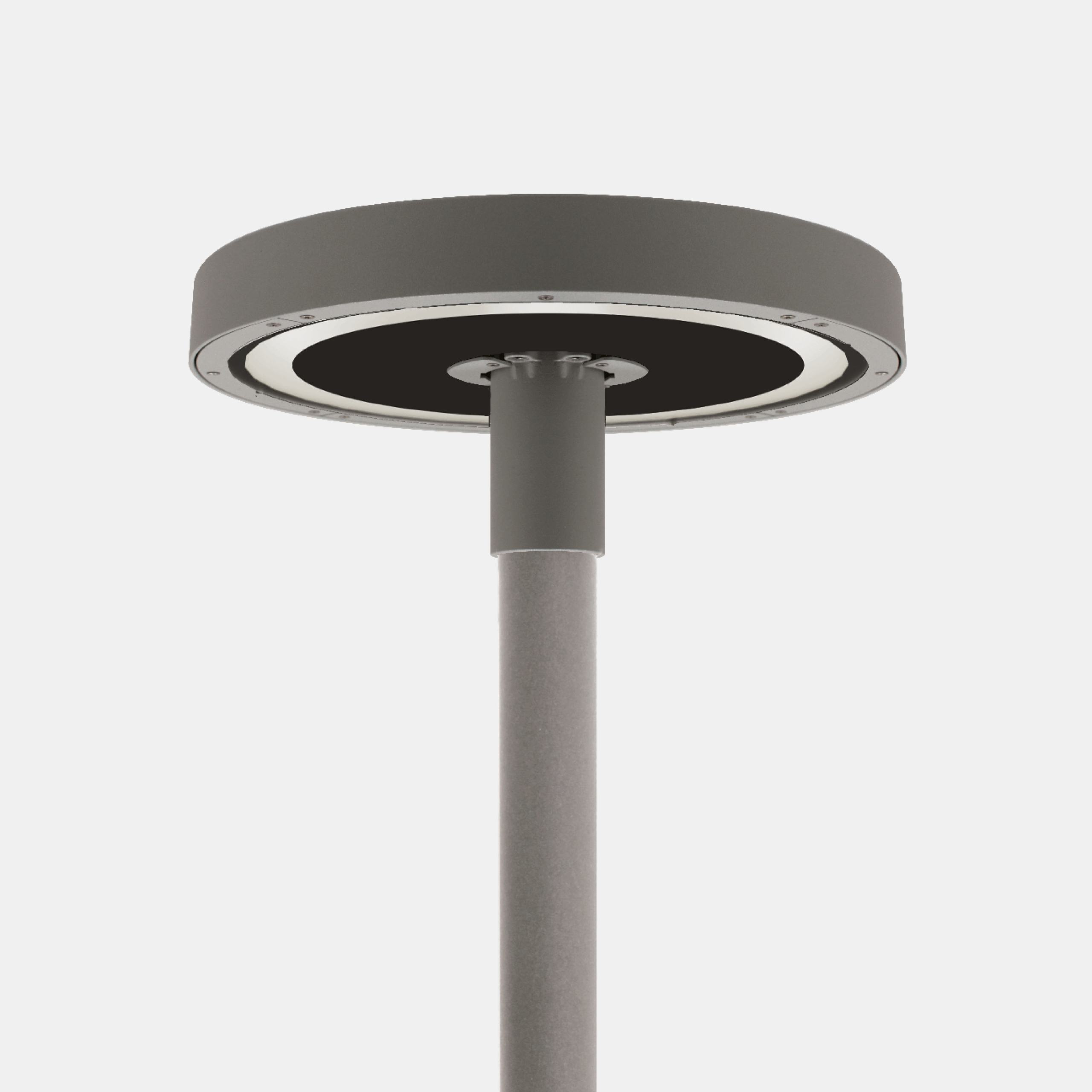

GEO – Mod. RA

(360° rotosymmetric optics)

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color graphite, 4 mm thick high-transparency tempered glass, silicone gasket. 360° rotosymmetric optics.
Categories: Led, GEO - 9300, Street lighting, GEO
Models: 100
Color: Graphite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9300RA22= ambra (CRI >70)17RL= on/off
30= 3000°K (CRI >70)25RM= 1-10v
40= 4000°K (CRI >70)37RD= dali 2
50= 5000°K (CRI >70)47MR= virtual midnight
54RZ= zhaga socket D4i

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9300RA4017RL17-4000°K - CRI>70on/off202911946017055-7.2
9300RA4025RL25-4000°K - CRI>70on/off282811346017055-7.2
9300RA4037RL37-4000°K - CRI>70on/off419611346017055-7.2
9300RA4047RL47-4000°K - CRI>70on/off515111046017055-7.2
9300RA4054RL54-4000°K - CRI>70on/off590210946017055-7.2
9300RA4017RM17-4000°K - CRI>701-10v202911946017055-7.2
9300RA4025RM25-4000°K - CRI>701-10v282811346017055-7.2
9300RA4037RM37-4000°K - CRI>701-10v419611346017055-7.2
9300RA4047RM47-4000°K - CRI>701-10v515111046017055-7.2
9300RA4054RM54-4000°K - CRI>701-10v590210946017055-7.2
9300RA4017RD17-4000°K - CRI>70dali 2202911946017055-7.2
9300RA4025RD25-4000°K - CRI>70dali 2282811346017055-7.2
9300RA4037RD37-4000°K - CRI>70dali 2419611346017055-7.2
9300RA4047RD47-4000°K - CRI>70dali 2515111046017055-7.2
9300RA4054RD54-4000°K - CRI>70dali 2590210946017055-7.2
9300RA4017MR17-4000°K - CRI>70virtual midnight202911946017055-7.2
9300RA4025MR25-4000°K - CRI>70virtual midnight282811346017055-7.2
9300RA4037MR37-4000°K - CRI>70virtual midnight419611346017055-7.2
9300RA4047MR47-4000°K - CRI>70virtual midnight515111046017055-7.2
9300RA4054MR54-4000°K - CRI>70virtual midnight590210946017055-7.2

Accessories
