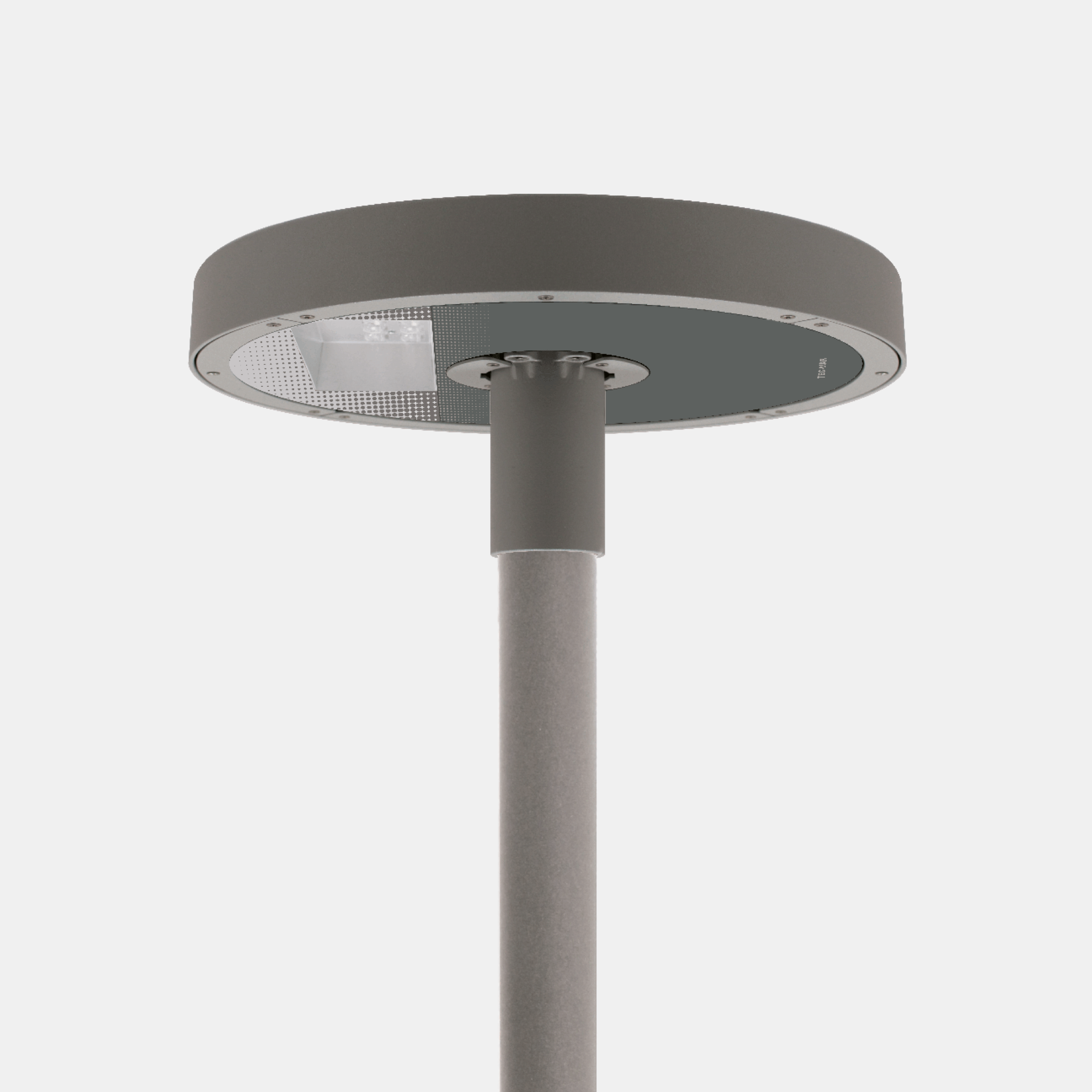

art.-9302-geo-b-t2-cp-me-grafite

GEO B/CP

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color graphite, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical, cyclopedestrian, rotosymmetrical and bi-asymmetrical street optics with high-performance PMMA lenses.
Categories: Led, GEO B - 9302, Street lighting, art. 9302 Geo B
Models: 128
Color: Graphite
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9302CP22= ambra (CRI >70)15RL= on/off
30= 3000°K (CRI >70)20RM= 1-10v
40= 4000°K (CRI >70)25RD= dali 2
50= 5000°K (CRI >70)30MR= virtual midnight
34
40
50
56

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9302CP4015RL15-4000°K - CRI>70on/off233215546017055-7.2
9302CP4020RL20-4000°K - CRI>70on/off308015446017055-7.2
9302CP4025RL25-4000°K - CRI>70on/off382115346017055-7.2
9302CP4030RL30-4000°K - CRI>70on/off456715246017055-7.2
9302CP4034RL34-4000°K - CRI>70on/off506814946017055-7.2
9302CP4040RL40-4000°K - CRI>70on/off597314946017055-7.2
9302CP4050RL50-4000°K - CRI>70on/off744614946017055-7.2
9302CP4056RL56-4000°K - CRI>70on/off811414546017055-7.2
9302CP4015RM15-4000°K - CRI>701-10v233215546017055-7.2
9302CP4020RM20-4000°K - CRI>701-10v308015446017055-7.2
9302CP4025RM25-4000°K - CRI>701-10v382115346017055-7.2
9302CP4030RM30-4000°K - CRI>701-10v456715246017055-7.2
9302CP4034RM34-4000°K - CRI>701-10v506814946017055-7.2
9302CP4040RM40-4000°K - CRI>701-10v597314946017055-7.2
9302CP4050RM50-4000°K - CRI>701-10v744614946017055-7.2
9302CP4056RM56-4000°K - CRI>701-10v811414546017055-7.2
9302CP4015RD15-4000°K - CRI>70dali 2233215546017055-7.2
9302CP4020RD20-4000°K - CRI>70dali 2308015446017055-7.2
9302CP4025RD25-4000°K - CRI>70dali 2382115346017055-7.2
9302CP4030RD30-4000°K - CRI>70dali 2456715246017055-7.2

Accessories
