art.-9302-geo-b-t2-cp-me-corten

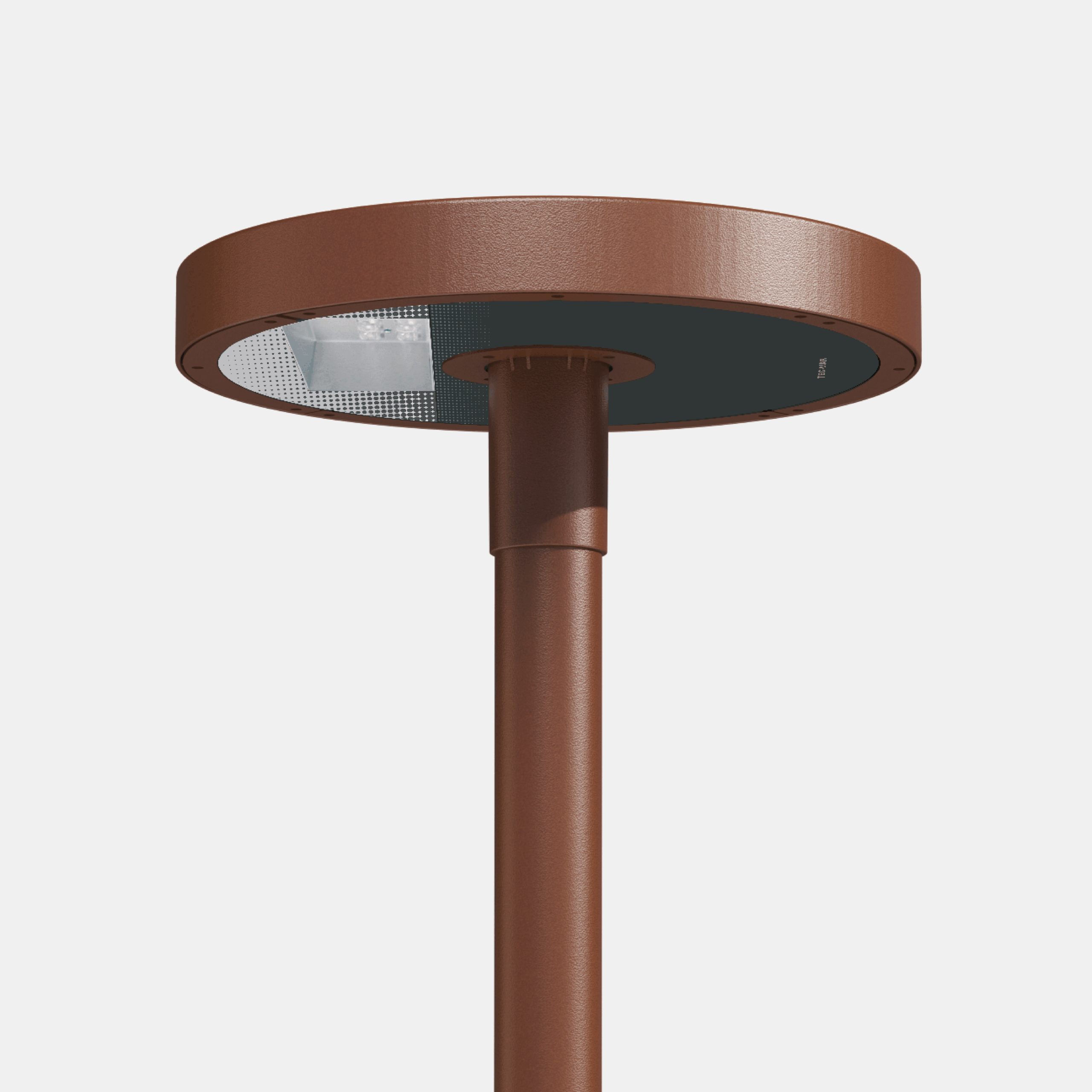

GEO B/ME

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color corten, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical, cyclopedestrian, rotosymmetrical and bi-asymmetrical street optics with high-performance PMMA lenses.
Categories: Led, GEO B - 9302, Street lighting, art. 9302 Geo B
Models: 128
Color: Corten
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9302ME22= ambra (CRI >70)15CL= on/off
30= 3000°K (CRI >70)20CM= 1-10v
40= 4000°K (CRI >70)25CD= dali 2
50= 5000°K (CRI >70)30MC= virtual midnight
34
40
50
56

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9302ME4015CL15-4000°K - CRI>70on/off234515646017055-7.2
9302ME4020CL20-4000°K - CRI>70on/off309715546017055-7.2
9302ME4025CL25-4000°K - CRI>70on/off384315446017055-7.2
9302ME4030CL30-4000°K - CRI>70on/off459215346017055-7.2
9302ME4034CL34-4000°K - CRI>70on/off509615046017055-7.2
9302ME4040CL40-4000°K - CRI>70on/off600615046017055-7.2
9302ME4050CL50-4000°K - CRI>70on/off748715046017055-7.2
9302ME4056CL56-4000°K - CRI>70on/off815914646017055-7.2
9302ME4015CM15-4000°K - CRI>701-10v234515646017055-7.2
9302ME4020CM20-4000°K - CRI>701-10v309715546017055-7.2
9302ME4025CM25-4000°K - CRI>701-10v384315446017055-7.2
9302ME4030CM30-4000°K - CRI>701-10v459215346017055-7.2
9302ME4034CM34-4000°K - CRI>701-10v509615046017055-7.2
9302ME4040CM40-4000°K - CRI>701-10v600615046017055-7.2
9302ME4050CM50-4000°K - CRI>701-10v748715046017055-7.2
9302ME4056CM56-4000°K - CRI>701-10v815914646017055-7.2
9302ME4015CD15-4000°K - CRI>70dali 2234515646017055-7.2
9302ME4020CD20-4000°K - CRI>70dali 2309715546017055-7.2
9302ME4025CD25-4000°K - CRI>70dali 2384315446017055-7.2
9302ME4030CD30-4000°K - CRI>70dali 2459215346017055-7.2

Accessories
