GEO B/RT

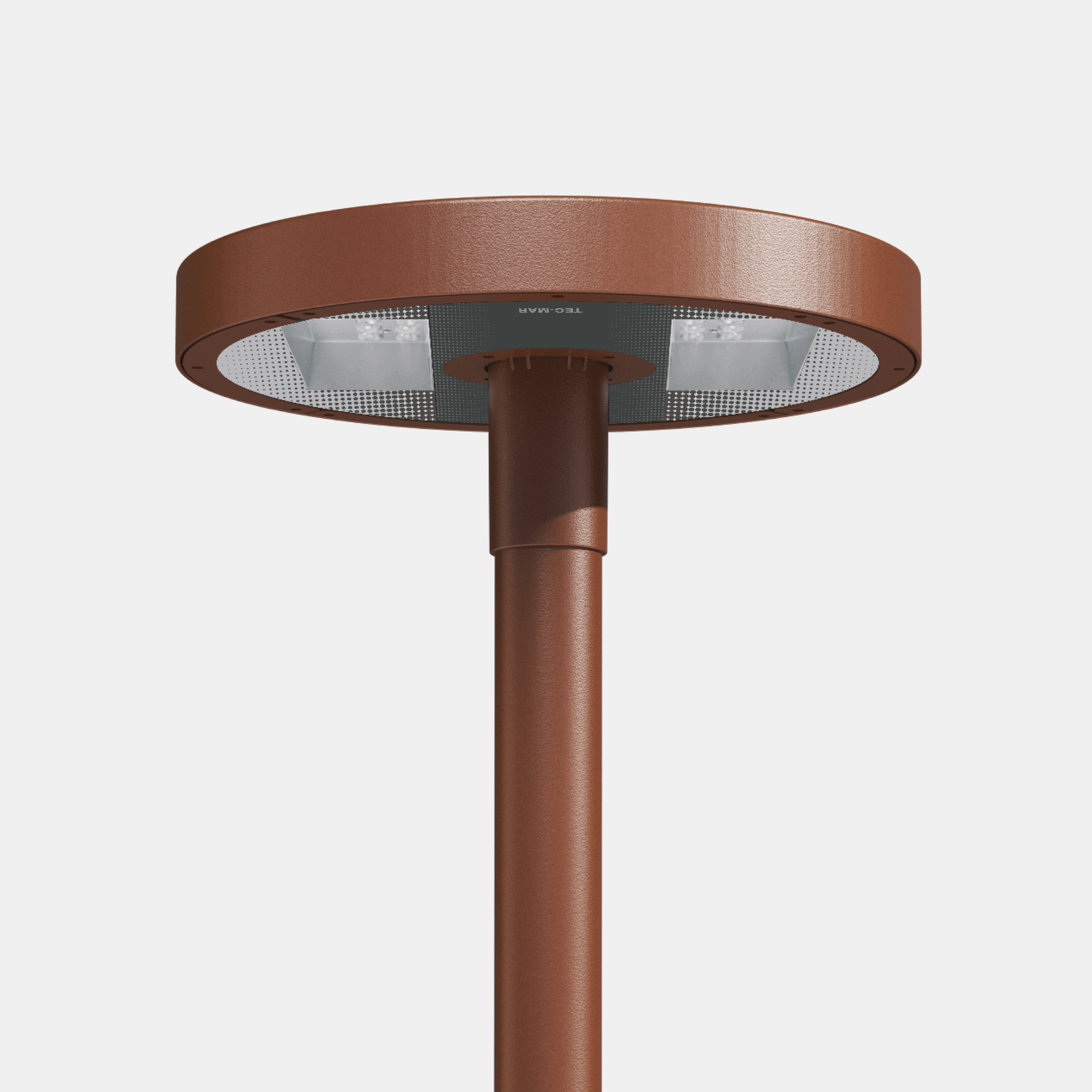

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color corten, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical, cyclopedestrian, rotosymmetrical and bi-asymmetrical street optics with high-performance PMMA lenses.
Categories: Led, GEO B - 9302, Street lighting, art. 9302 Geo B
Models: 96
Color: Corten
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9302RT22= ambra (CRI >70)15CL= on/off
30= 3000°K (CRI >70)20CM= 1-10v
40= 4000°K (CRI >70)25CD= dali 2
50= 5000°K (CRI >70)30MC= virtual midnight
34
40
50
56

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9302RT4015CL15-4000°K - CRI>70on/off249816746017055-7.2
9302RT4020CL20-4000°K - CRI>70on/off318915946017055-7.2
9302RT4025CL25-4000°K - CRI>70on/off400216046017055-7.2
9302RT4030CL30-4000°K - CRI>70on/off474315846017055-7.2
9302RT4034CL34-4000°K - CRI>70on/off534815746017055-7.2
9302RT4040CL40-4000°K - CRI>70on/off622915646017055-7.2
9302RT4050CL50-4000°K - CRI>70on/off773115546017055-7.2
9302RT4056CL56-4000°K - CRI>70on/off847615146017055-7.2
9302RT4015CM15-4000°K - CRI>701-10v249816746017055-7.2
9302RT4020CM20-4000°K - CRI>701-10v318915946017055-7.2
9302RT4025CM25-4000°K - CRI>701-10v400216046017055-7.2
9302RT4030CM30-4000°K - CRI>701-10v474315846017055-7.2
9302RT4034CM34-4000°K - CRI>701-10v534815746017055-7.2
9302RT4040CM40-4000°K - CRI>701-10v622915646017055-7.2
9302RT4050CM50-4000°K - CRI>701-10v773115546017055-7.2
9302RT4056CM56-4000°K - CRI>701-10v847615146017055-7.2
9302RT4015CD15-4000°K - CRI>70dali 2249816746017055-7.2
9302RT4020CD20-4000°K - CRI>70dali 2318915946017055-7.2
9302RT4025CD25-4000°K - CRI>70dali 2400216046017055-7.2
9302RT4030CD30-4000°K - CRI>70dali 2474315846017055-7.2

Accessories
