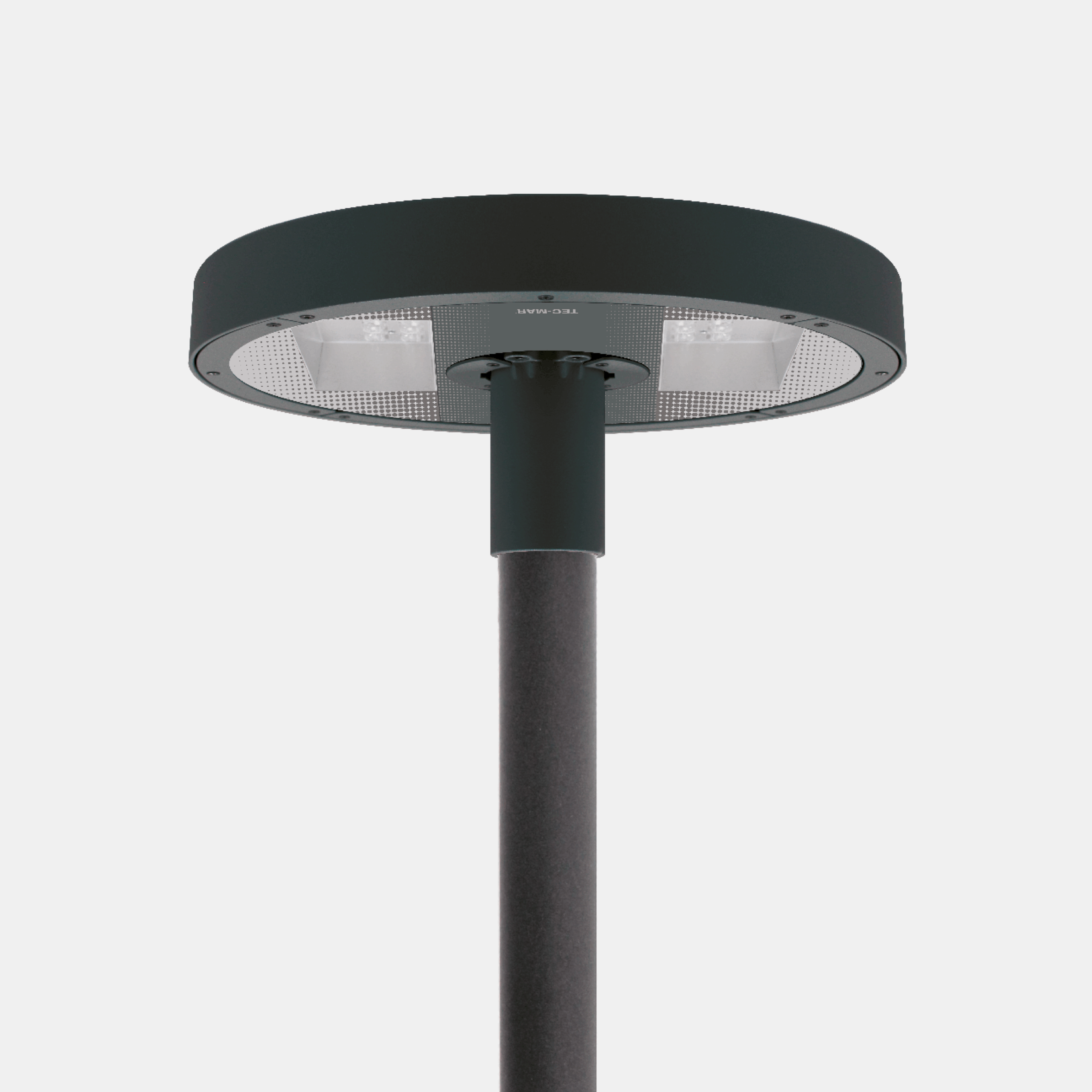

GEO B/RT

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color anthracite, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical, cyclopedestrian, rotosymmetrical and bi-asymmetrical street optics with high-performance PMMA lenses.
Categories: Led, GEO B - 9302, Street lighting, art. 9302 Geo B
Models: 128
Color: Anthracite

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9302RT22= ambra (CRI >70)15EL= on/off
30= 3000°K (CRI >70)20LM= 1-10v
40= 4000°K (CRI >70)25LD= dali 2
50= 5000°K (CRI >70)30MD= virtual midnight
34
40
50
56

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9302RT4015EL15-4000°K - CRI>70on/off249816746017055-7.2
9302RT4020EL20-4000°K - CRI>70on/off318915946017055-7.2
9302RT4025EL25-4000°K - CRI>70on/off400216046017055-7.2
9302RT4030EL30-4000°K - CRI>70on/off474315846017055-7.2
9302RT4034EL34-4000°K - CRI>70on/off534815746017055-7.2
9302RT4040EL40-4000°K - CRI>70on/off622915646017055-7.2
9302RT4050EL50-4000°K - CRI>70on/off773115546017055-7.2
9302RT4056EL56-4000°K - CRI>70on/off847615146017055-7.2
9302RT4015LM15-4000°K - CRI>701-10v249816746017055-7.2
9302RT4020LM20-4000°K - CRI>701-10v318915946017055-7.2
9302RT4025LM25-4000°K - CRI>701-10v400216046017055-7.2
9302RT4030LM30-4000°K - CRI>701-10v474315846017055-7.2
9302RT4034LM34-4000°K - CRI>701-10v534815746017055-7.2
9302RT4040LM40-4000°K - CRI>701-10v622915646017055-7.2
9302RT4050LM50-4000°K - CRI>701-10v773115546017055-7.2
9302RT4056LM56-4000°K - CRI>701-10v847615146017055-7.2
9302RT4015LD15-4000°K - CRI>70dali 2249816746017055-7.2
9302RT4020LD20-4000°K - CRI>70dali 2318915946017055-7.2
9302RT4025LD25-4000°K - CRI>70dali 2400216046017055-7.2
9302RT4030LD30-4000°K - CRI>70dali 2474315846017055-7.2
