art.-9302-geo-b-rt-silver

GEO B/RT

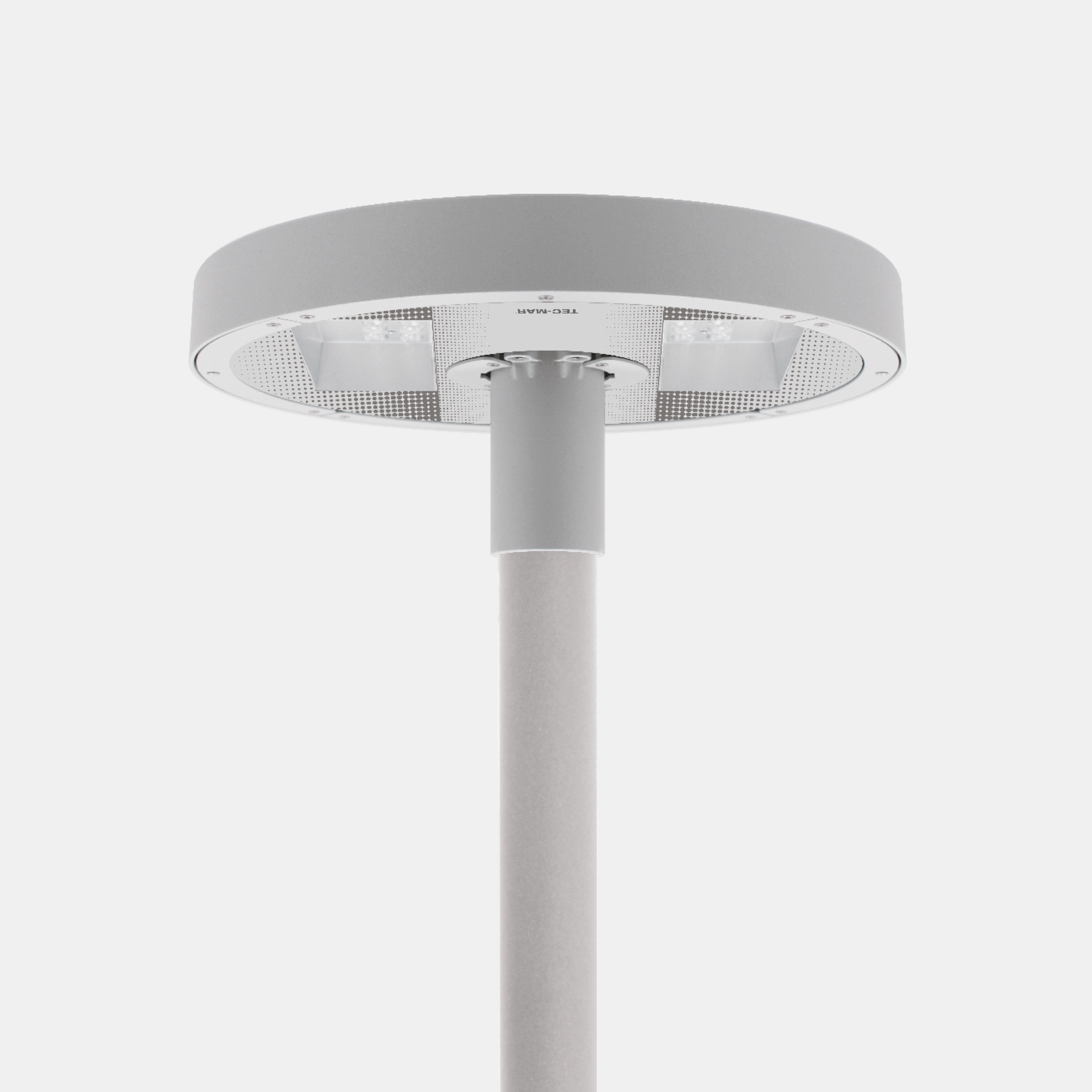

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color silver, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical, cyclopedestrian, rotosymmetrical and bi-asymmetrical street optics with high-performance PMMA lenses.
Categories: Led, GEO B - 9302, Street lighting, art. 9302 Geo B
Models: 128
Color: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9302RT22= ambra (CRI >70)15GL= on/off
30= 3000°K (CRI >70)20GM= 1-10v
40= 4000°K (CRI >70)25GD= dali 2
50= 5000°K (CRI >70)30MG= virtual midnight
34
40
50
56

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9302RT4015GL15-4000°K - CRI>70on/off249816746017055-7.2
9302RT4020GL20-4000°K - CRI>70on/off318915946017055-7.2
9302RT4025GL25-4000°K - CRI>70on/off400216046017055-7.2
9302RT4030GL30-4000°K - CRI>70on/off474315846017055-7.2
9302RT4034GL34-4000°K - CRI>70on/off534815746017055-7.2
9302RT4040GL40-4000°K - CRI>70on/off622915646017055-7.2
9302RT4050GL50-4000°K - CRI>70on/off773115546017055-7.2
9302RT4056GL56-4000°K - CRI>70on/off847615146017055-7.2
9302RT4015GM15-4000°K - CRI>701-10v249816746017055-7.2
9302RT4020GM20-4000°K - CRI>701-10v318915946017055-7.2
9302RT4025GM25-4000°K - CRI>701-10v400216046017055-7.2
9302RT4030GM30-4000°K - CRI>701-10v474315846017055-7.2
9302RT4034GM34-4000°K - CRI>701-10v534815746017055-7.2
9302RT4040GM40-4000°K - CRI>701-10v622915646017055-7.2
9302RT4050GM50-4000°K - CRI>701-10v773115546017055-7.2
9302RT4056GM56-4000°K - CRI>701-10v847615146017055-7.2
9302RT4015GD15-4000°K - CRI>70dali 2249816746017055-7.2
9302RT4020GD20-4000°K - CRI>70dali 2318915946017055-7.2
9302RT4025GD25-4000°K - CRI>70dali 2400216046017055-7.2
9302RT4030GD30-4000°K - CRI>70dali 2474315846017055-7.2

Accessories
