art.-9302-geo-b-t2-cp-me-silver

GEO B/T2

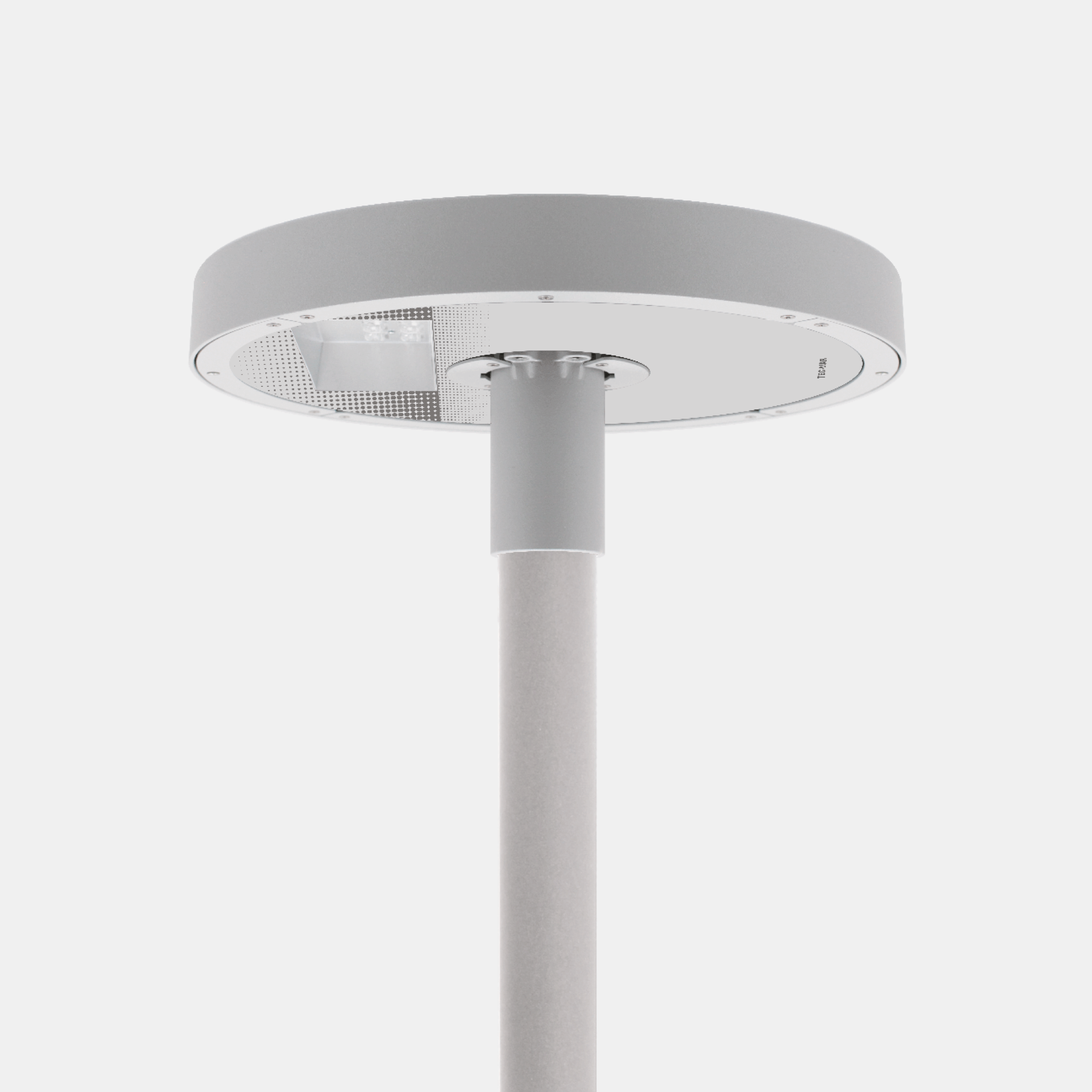

LED fixture for street, bicycle and pedestrian and urban lighting. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder color silver, 4 mm thick high-transparency tempered glass, silicone gasket. Asymmetrical, cyclopedestrian, rotosymmetrical and bi-asymmetrical street optics with high-performance PMMA lenses.
Categories: Led, GEO B - 9302, Street lighting, art. 9302 Geo B
Models: 128
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9302T222= ambra (CRI >70)15GL= on/off
30= 3000°K (CRI >70)20GM= 1-10v
40= 4000°K (CRI >70)25GD= dali 2
50= 5000°K (CRI >70)30MG= virtual midnight
34
40
50
56

Models

W tot.
°K - CRI
Options

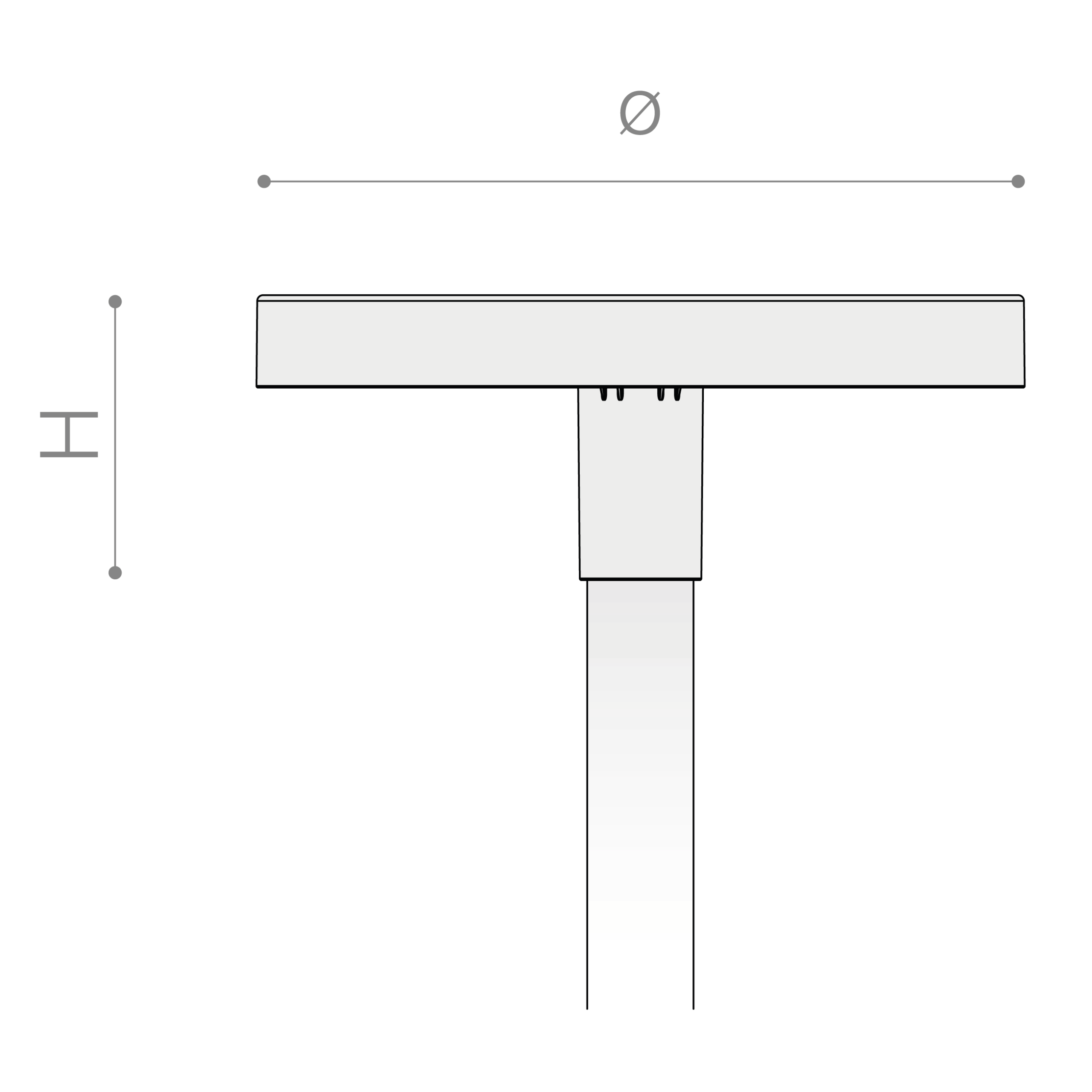

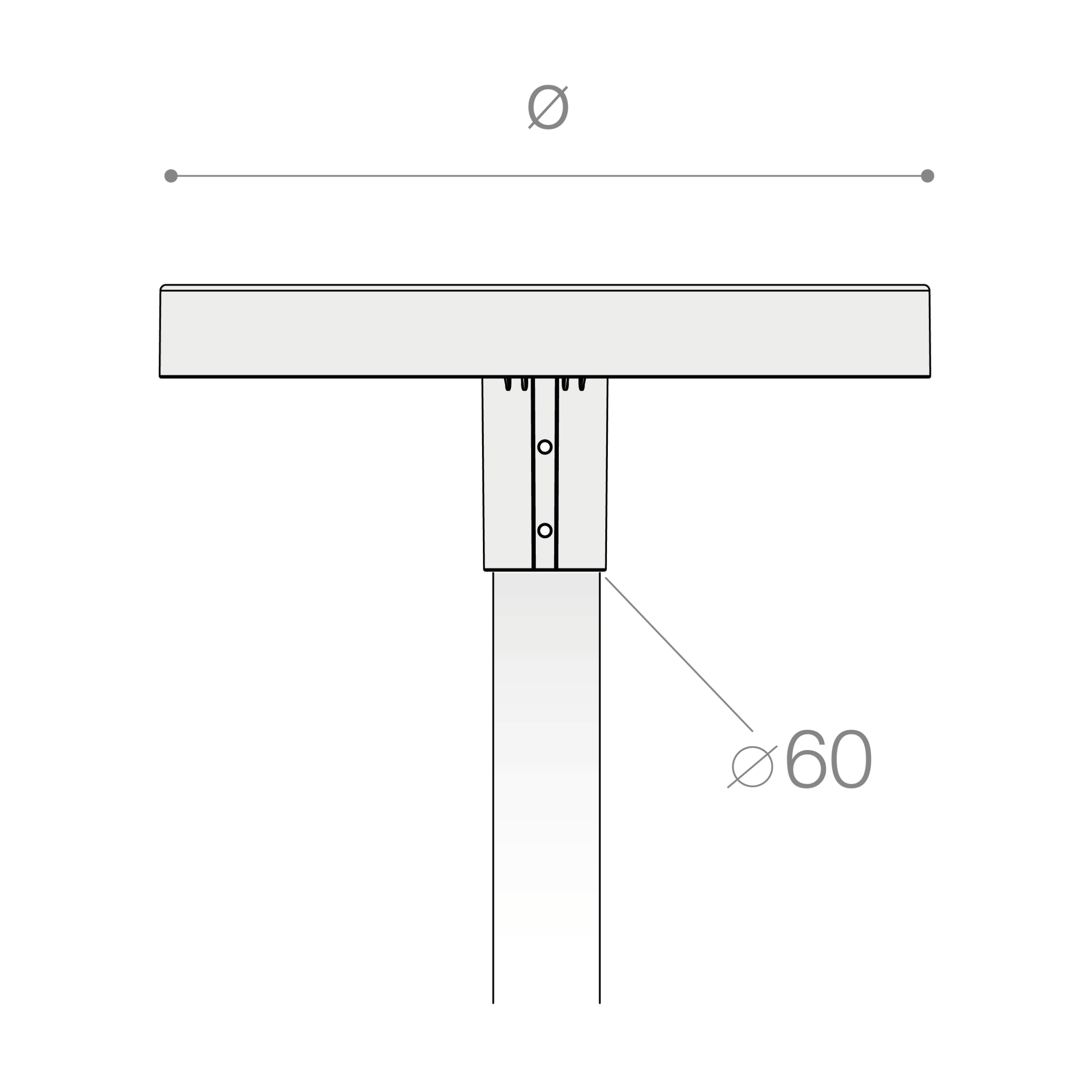

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9302T24015GL15-4000°K - CRI>70on/off234715646017055-7.2
9302T24020GL20-4000°K - CRI>70on/off310115546017055-7.2
9302T24025GL25-4000°K - CRI>70on/off384715446017055-7.2
9302T24030GL30-4000°K - CRI>70on/off459715346017055-7.2
9302T24034GL34-4000°K - CRI>70on/off510115046017055-7.2
9302T24040GL40-4000°K - CRI>70on/off601315046017055-7.2
9302T24050GL50-4000°K - CRI>70on/off749515046017055-7.2
9302T24056GL56-4000°K - CRI>70on/off816814646017055-7.2
9302T24015GM15-4000°K - CRI>701-10v234715646017055-7.2
9302T24020GM20-4000°K - CRI>701-10v310115546017055-7.2
9302T24025GM25-4000°K - CRI>701-10v384715446017055-7.2
9302T24030GM30-4000°K - CRI>701-10v459715346017055-7.2
9302T24034GM34-4000°K - CRI>701-10v510115046017055-7.2
9302T24040GM40-4000°K - CRI>701-10v601315046017055-7.2
9302T24050GM50-4000°K - CRI>701-10v749515046017055-7.2
9302T24056GM56-4000°K - CRI>701-10v816814646017055-7.2
9302T24015GD15-4000°K - CRI>70dali 2234715646017055-7.2
9302T24020GD20-4000°K - CRI>70dali 2310115546017055-7.2
9302T24025GD25-4000°K - CRI>70dali 2384715446017055-7.2
9302T24030GD30-4000°K - CRI>70dali 2459715346017055-7.2

Accessories
