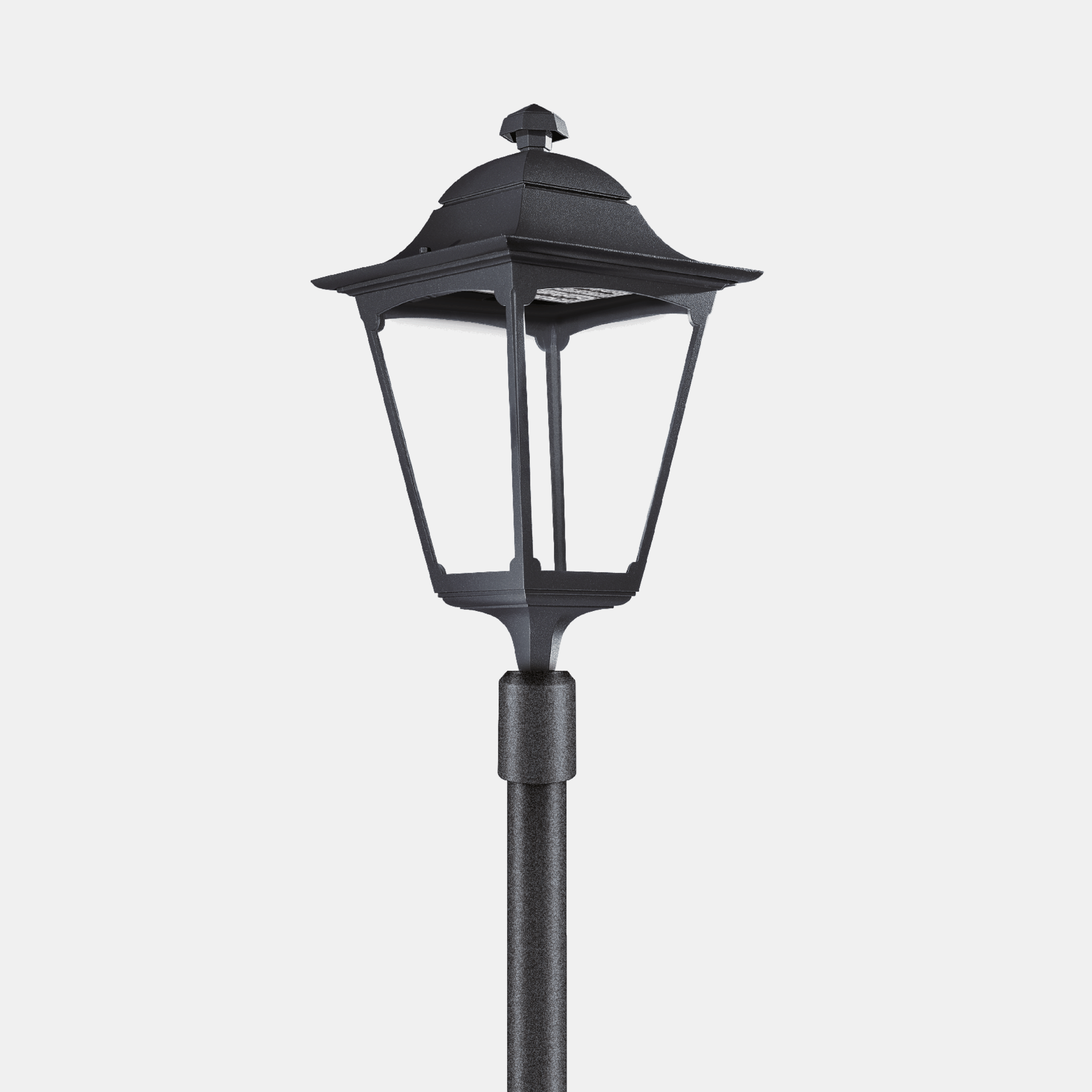

LIZ – Mod. A1

(IESNA Type II 45° Medium Asymmetric Street Light)

Led street lighting lantern for illuminating public gardens, historical centers, squares, villages and arcades. Suitable for installation on vertical pole head, suspension or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating black color, asymmetric street optics with high-performance PMMA lenses.
Categories: Led, LIZ - P902, Street lighting, LIZ
Models: 96
Color: Matt black
Catalogue abstract
Installation instructions

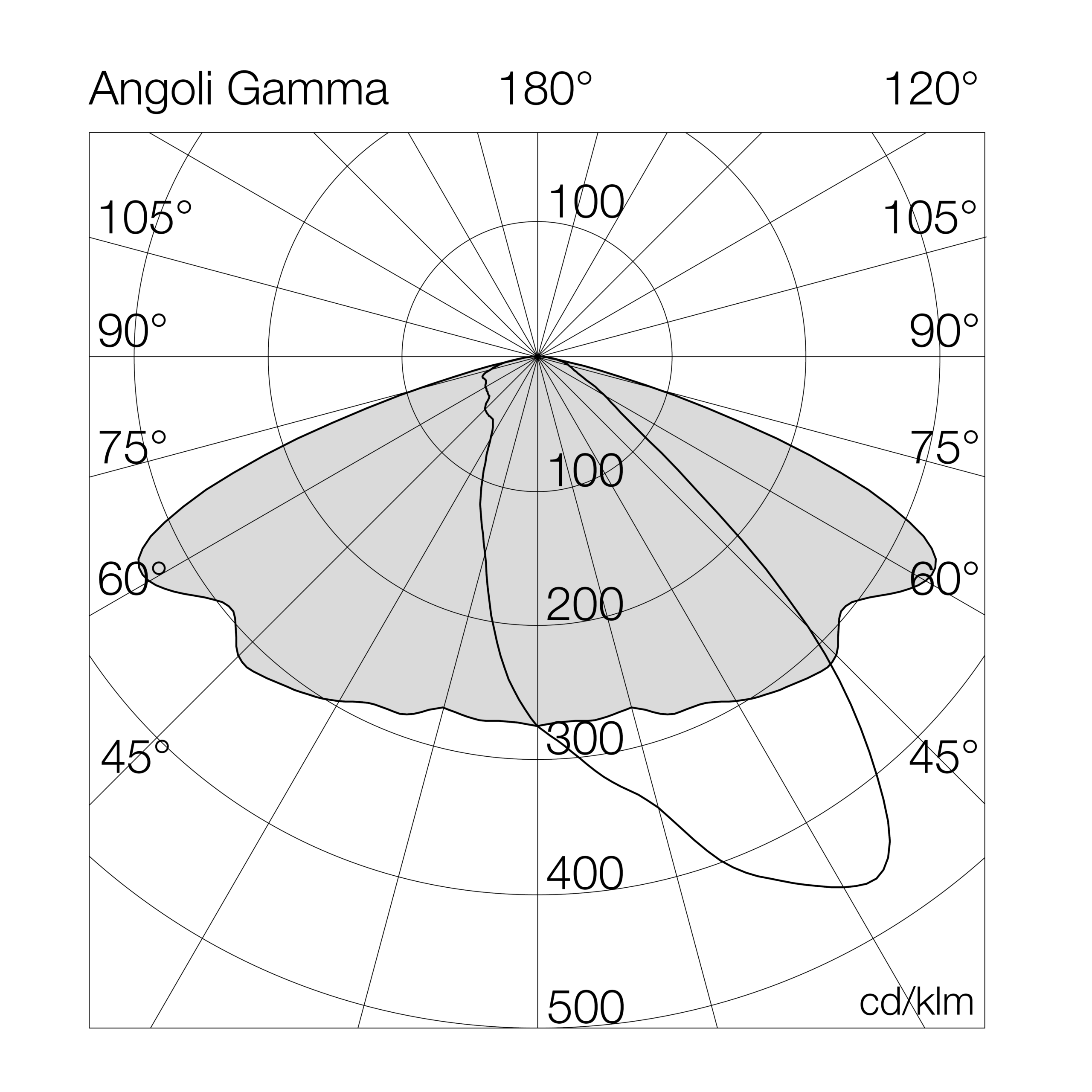

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
P902A172= ambra (CRI >70) 12PL= on/off
73= 3000°K (CRI >70)16PM= 1-10v
74= 4000°K (CRI >70)24PD= dali 2
25PA= virtual midnight
30
33
48
60

Models

W tot.
°K - CRI
Options

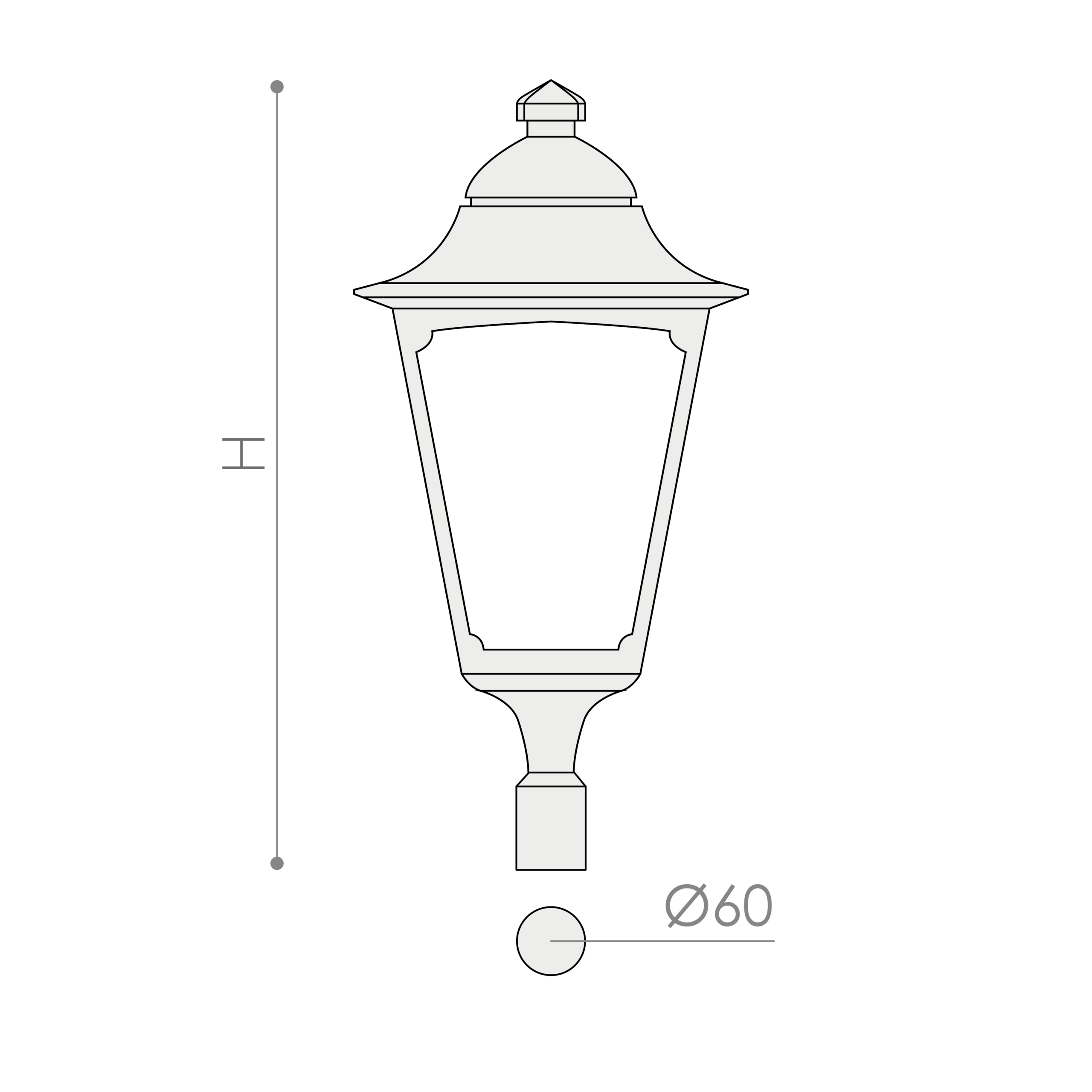

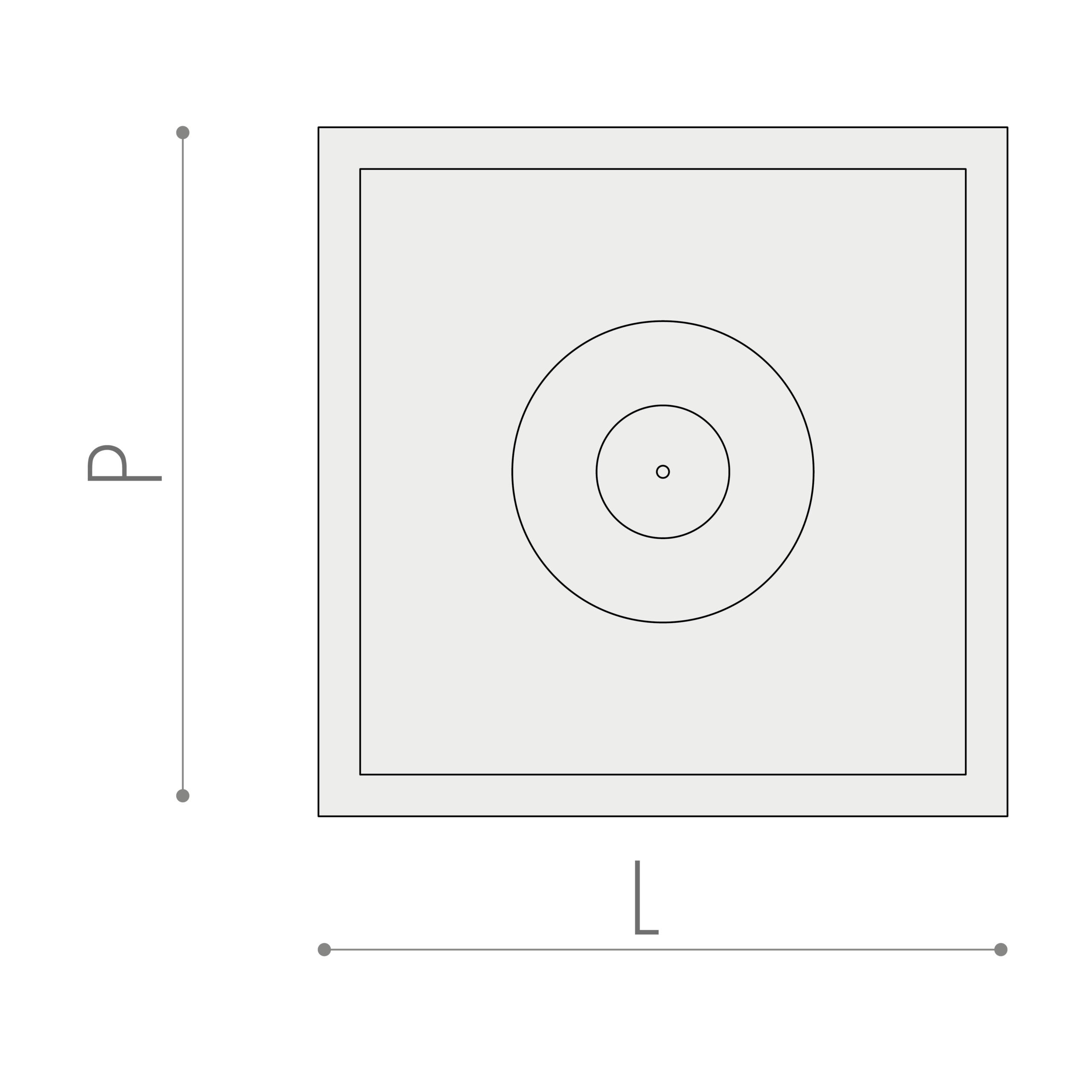

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
P902A17412PL12-4000°K - CRI>70on/off2008167330330680-5.8
P902A17416PL16-4000°K - CRI>70on/off2514157330330680-5.8
P902A17424PL24-4000°K - CRI>70on/off3471145330330680-5.8
P902A17425PL25-4000°K - CRI>70on/off4018161330330680-5.8
P902A17430PL30-4000°K - CRI>70on/off4139138330330680-5.8
P902A17433PL33-4000°K - CRI>70on/off5028152330330680-5.8
P902A17448PL48-4000°K - CRI>70on/off6941145330330680-5.8
P902A17460PL60-4000°K - CRI>70on/off8280138330330680-5.8
P902A17412PM12-4000°K - CRI>701-10v2008167330330680-5.8
P902A17416PM16-4000°K - CRI>701-10v2514157330330680-5.8
P902A17424PM24-4000°K - CRI>701-10v3471145330330680-5.8
P902A17425PM25-4000°K - CRI>701-10v4018161330330680-5.8
P902A17430PM30-4000°K - CRI>701-10v4139138330330680-5.8
P902A17433PM33-4000°K - CRI>701-10v5028152330330680-5.8
P902A17448PM48-4000°K - CRI>701-10v6941145330330680-5.8
P902A17460PM60-4000°K - CRI>701-10v8280138330330680-5.8
P902A17412PD12-4000°K - CRI>70dali 22008167330330680-5.8
P902A17416PD16-4000°K - CRI>70dali 22514157330330680-5.8
P902A17424PD24-4000°K - CRI>70dali 23471145330330680-5.8
P902A17425PD25-4000°K - CRI>70dali 24018161330330680-5.8

Accessories
