art.-p902-liz-a2-r2

LIZ – Mod. A2

(IESNA Type II 45° Medium Asymmetric Street Light)

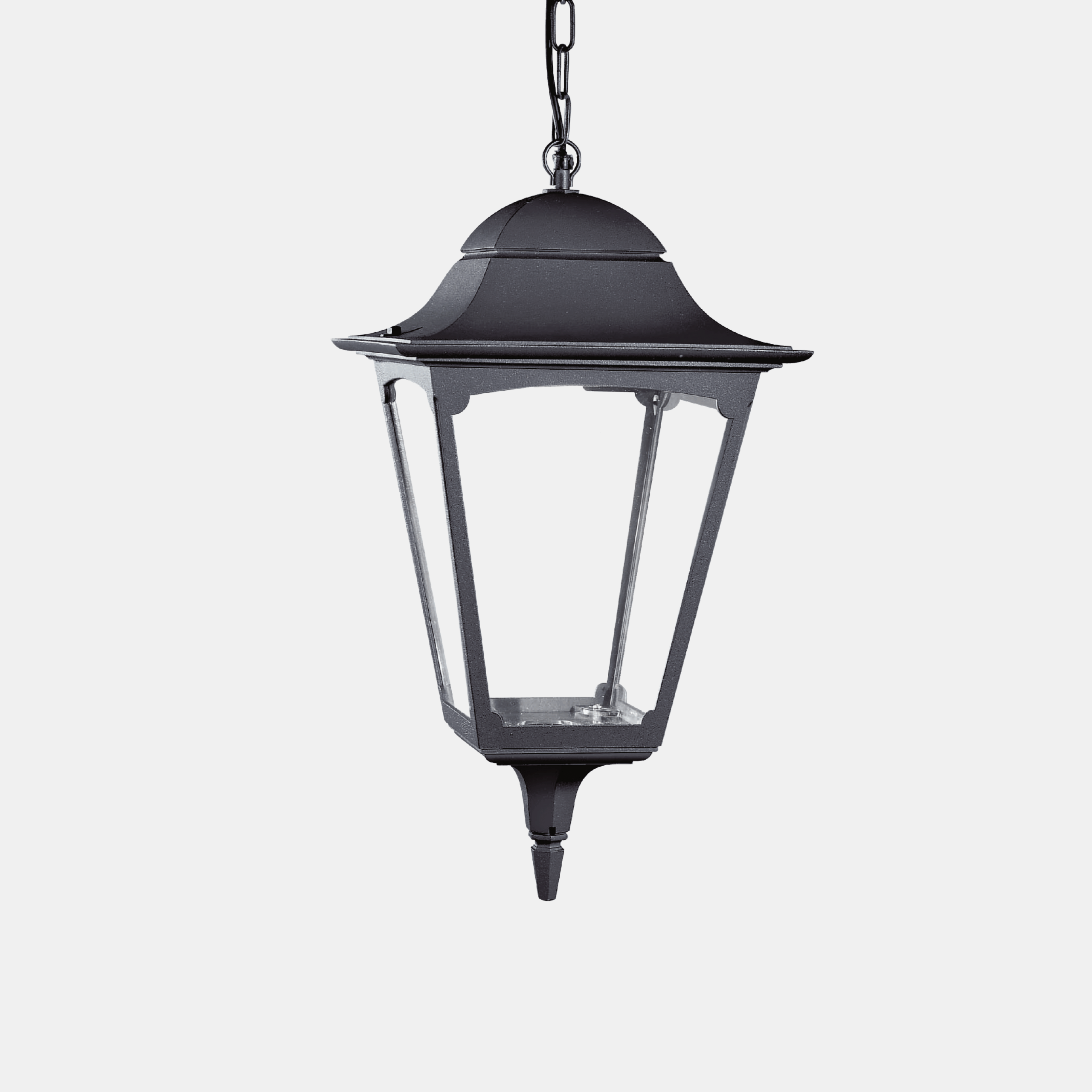

Led street lighting lantern for illuminating public gardens, historical centers, squares, villages and arcades. Suitable for installation on vertical pole head, suspension or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating black color, asymmetric street optics with high-performance PMMA lenses.
Categories: Led, LIZ - P902, Street lighting, LIZ
Models: 96
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
P902A272= ambra (CRI >70) 12PL= on/off
73= 3000°K (CRI >70)16PM= 1-10v
74= 4000°K (CRI >70)24PD= dali 2
25PA= virtual midnight
30
33
48
60

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
P902A27412PL12-4000°K - CRI>70on/off2008167330330650-5.6
P902A27416PL16-4000°K - CRI>70on/off2514157330330650-5.6
P902A27424PL24-4000°K - CRI>70on/off3471145330330650-5.6
P902A27425PL25-4000°K - CRI>70on/off4018161330330650-5.6
P902A27430PL30-4000°K - CRI>70on/off4139138330330650-5.6
P902A27433PL33-4000°K - CRI>70on/off5028152330330650-5.6
P902A27448PL48-4000°K - CRI>70on/off6941145330330650-5.6
P902A27460PL60-4000°K - CRI>70on/off8280138330330650-5.6
P902A27412PM12-4000°K - CRI>701-10v2008167330330650-5.6
P902A27416PM16-4000°K - CRI>701-10v2514157330330650-5.6
P902A27424PM24-4000°K - CRI>701-10v3471145330330650-5.6
P902A27425PM25-4000°K - CRI>701-10v4018161330330650-5.6
P902A27430PM30-4000°K - CRI>701-10v4139138330330650-5.6
P902A27433PM33-4000°K - CRI>701-10v5028152330330650-5.6
P902A27448PM48-4000°K - CRI>701-10v6941145330330650-5.6
P902A27460PM60-4000°K - CRI>701-10v8280138330330650-5.6
P902A27412PD12-4000°K - CRI>70dali 22008167330330650-5.6
P902A27416PD16-4000°K - CRI>70dali 22514157330330650-5.6
P902A27424PD24-4000°K - CRI>70dali 23471145330330650-5.6
P902A27425PD25-4000°K - CRI>70dali 24018161330330650-5.6

Accessories

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
