LIZ – Mod. A3

(IESNA Type II 45° Medium Asymmetric Street Light)

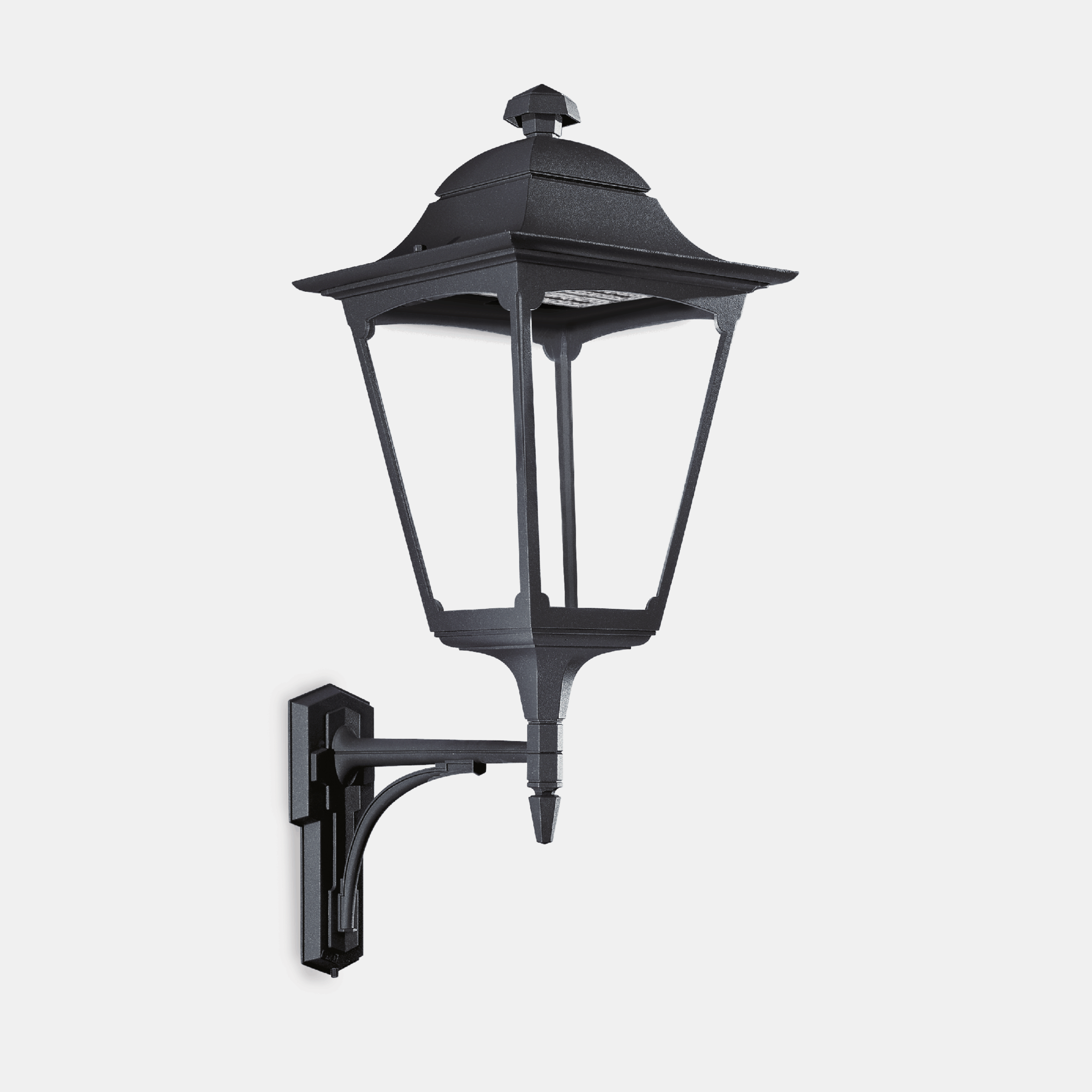

Led street lighting lantern for illuminating public gardens, historical centers, squares, villages and arcades. Suitable for installation on vertical pole head, suspension or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating black color, asymmetric street optics with high-performance PMMA lenses.
Categories: Led, LIZ - P902, Street lighting, LIZ
Models: 96
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
P902A372= ambra (CRI >70) 12PL= on/off
73= 3000°K (CRI >70)16PM= 1-10v
74= 4000°K (CRI >70)24PD= dali 2
25PA= virtual midnight
30
33
48
60

Models

W tot.
°K - CRI
Options

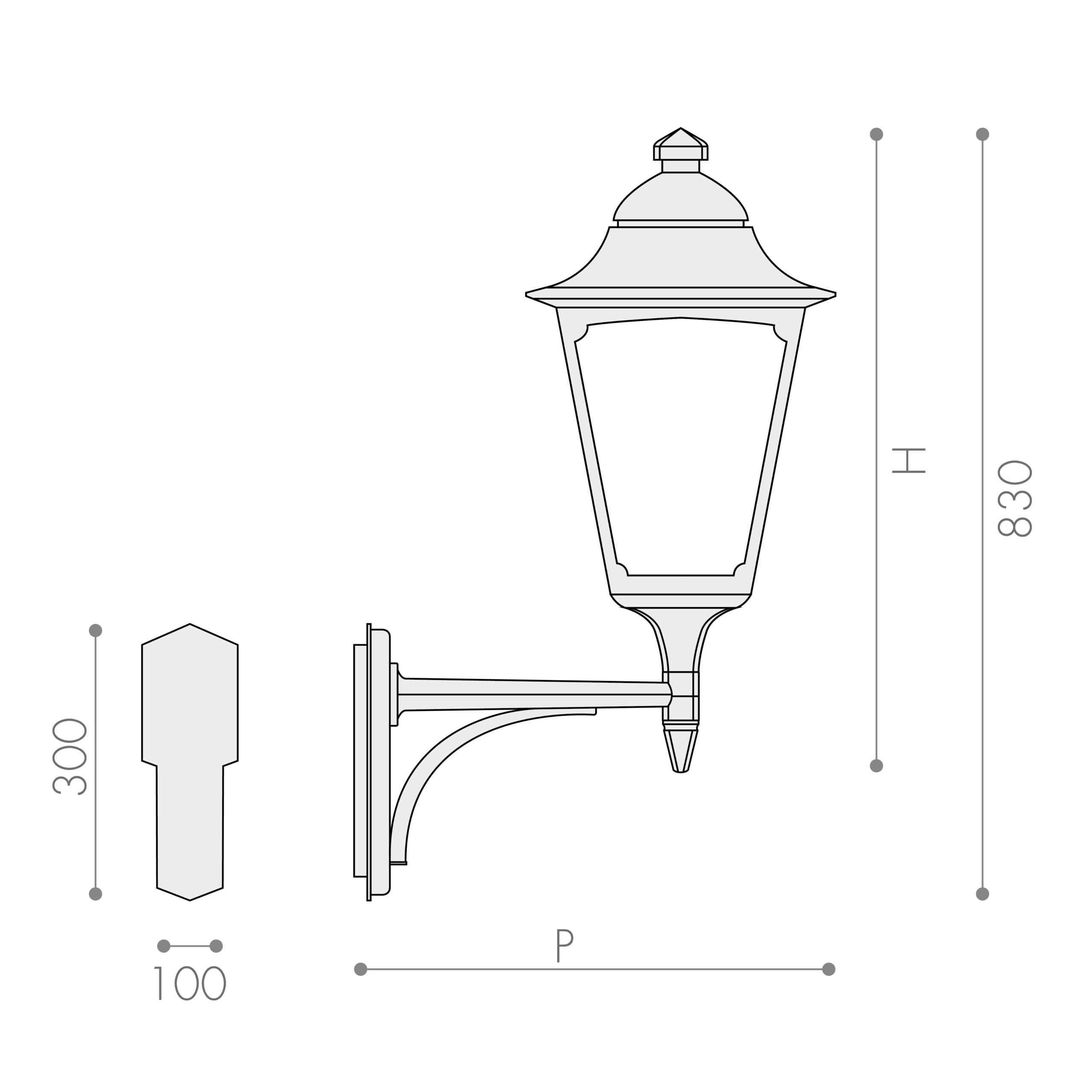

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
P902A37412PL124000°K - CRI>70on/off2008167330330710-6.7
P902A37416PL164000°K - CRI>70on/off2514157330330710-6.7
P902A37424PL244000°K - CRI>70on/off3471145330330710-6.7
P902A37425PL254000°K - CRI>70on/off4018161330330710-6.7
P902A37430PL304000°K - CRI>70on/off4139138330330710-6.7
P902A37433PL334000°K - CRI>70on/off5028152330330710-6.7
P902A37448PL484000°K - CRI>70on/off6941145330330710-6.7
P902A37460PL604000°K - CRI>70on/off8280138330330710-6.7
P902A37412PM124000°K - CRI>701-10v2008167330330710-6.7
P902A37416PM164000°K - CRI>701-10v2514157330330710-6.7
P902A37424PM244000°K - CRI>701-10v3471145330330710-6.7
P902A37425PM254000°K - CRI>701-10v4018161330330710-6.7
P902A37430PM304000°K - CRI>701-10v4139138330330710-6.7
P902A37433PM334000°K - CRI>701-10v5028152330330710-6.7
P902A37448PM484000°K - CRI>701-10v6941145330330710-6.7
P902A37460PM604000°K - CRI>701-10v8280138330330710-6.7
P902A37412PD124000°K - CRI>70dali 22008167330330710-6.7
P902A37416PD164000°K - CRI>70dali 22514157330330710-6.7
P902A37424PD244000°K - CRI>70dali 23471145330330710-6.7
P902A37425PD254000°K - CRI>70dali 24018161330330710-6.7

Accessories
