GIOTTO XF/E1

Outdoor LED linear projector suitable for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in six types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel plate reflectors painted matte black: four spot optics (8°-11°-13°-30°), one 45° medium optic and one 40°x13° elliptical optic
Categories: Led, GIOTTO XF - 3005, art. 3005 Giotto XF, Architectural Outdoor, art. 3005 Giotto XF
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

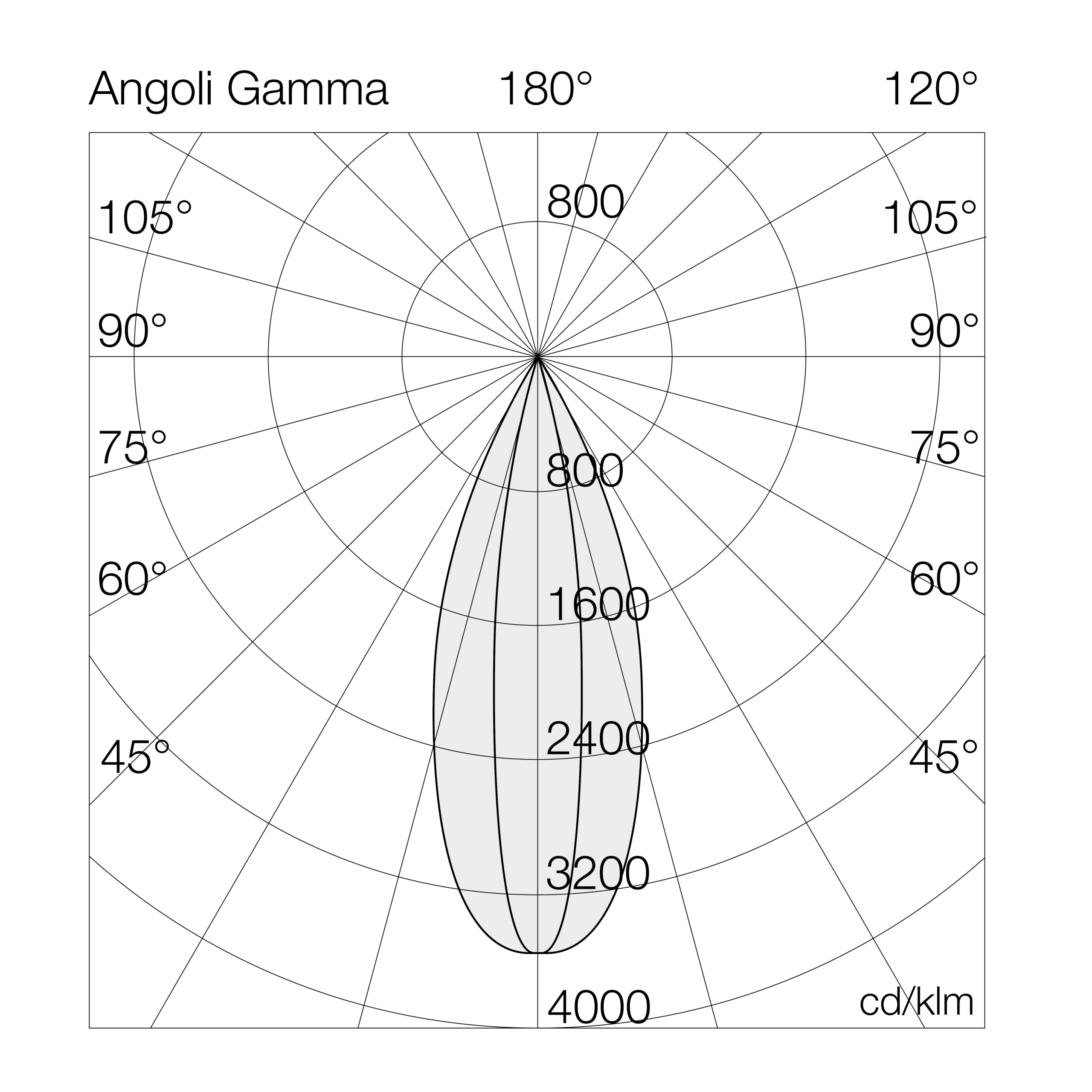

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001E127= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
1649FC= continuous row
1752
2461
2670
3288
35

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3005E14008GL8-4000°K - CRI>80on/off10061266231575--
3005E14012GL12-4000°K - CRI>80on/off13831156231575--
3005E14017GL17-4000°K - CRI>80on/off18451096231575--
3005E14016GL16-4000°K - CRI>80on/off20121266259575--
3005E14024GL24-4000°K - CRI>80on/off27671156259575--
3005E14035GL35-4000°K - CRI>80on/off36901056259575--
3005E14026GL26-4000°K - CRI>80on/off32121246287575--
3005E14036GL36-4000°K - CRI>80on/off41511156287575--
3005E14052GL52-4000°K - CRI>80on/off55351066287575--
3005E14032GL32-4000°K - CRI>80on/off402412662117575--
3005E14049GL49-4000°K - CRI>80on/off553511362117575--
3005E14070GL70-4000°K - CRI>80on/off738010562117575--
3005E14042GL42-4000°K - CRI>80on/off503012062145575--
3005E14061GL61-4000°K - CRI>80on/off691811362145575--
3005E14088GL88-4000°K - CRI>80on/off922510562145575--
3005E14008GD8-4000°K - CRI>80dali 210061266231575--
3005E14012GD12-4000°K - CRI>80dali 213831156231575--
3005E14017GD17-4000°K - CRI>80dali 218451096231575--
3005E14016GD16-4000°K - CRI>80dali 220121266259575--
3005E14024GD24-4000°K - CRI>80dali 227671156259575--

Accessories
