art.-7024-micro-ar-marrone

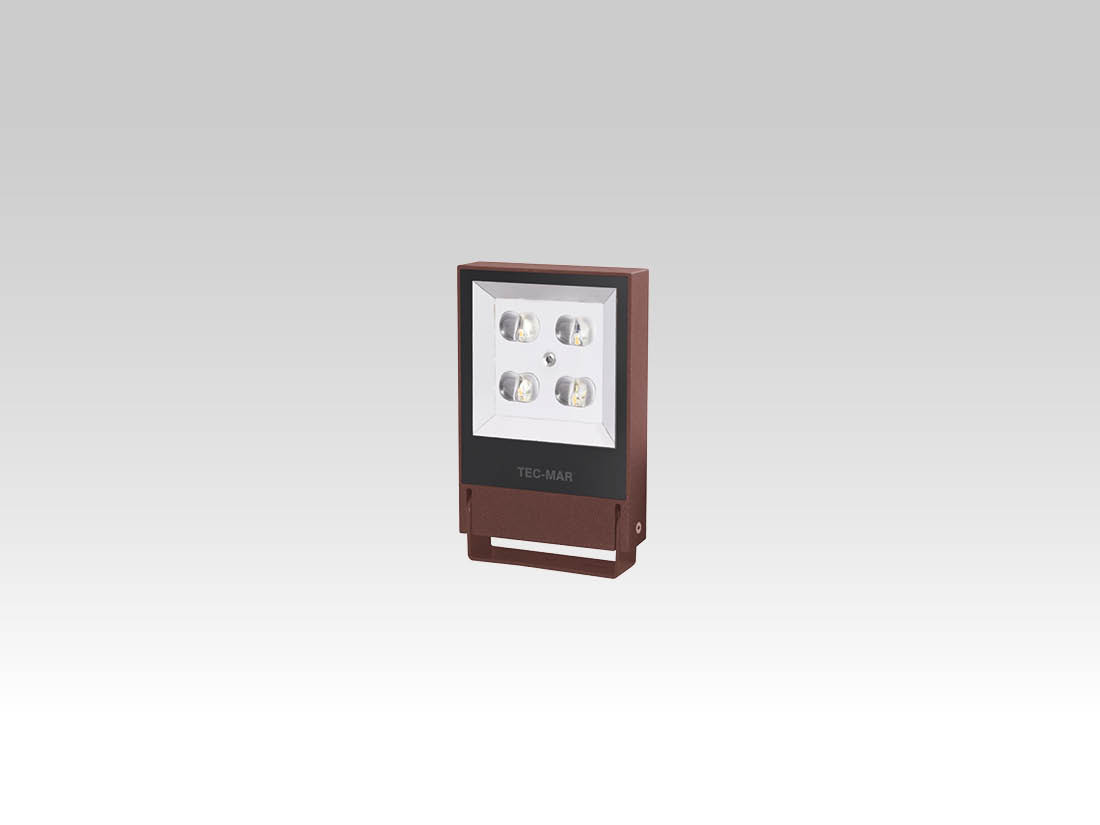

MICRO/AR

Proiettore led per esterni ed interni. Corpo in alluminio pressofuso anticorrosione, verniciato con polveri epossidiche, colore marrone scuro, tensione di rete 220-240V, 50/60 Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Outdoor, Micro
Codici: 16
Colore: Marrone scuro

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7024AR27= 2700°K (CRI >80)15CL= Input 230Vac
30= 3000°K (CRI >80)20C4= Input 240Vac
40= 4000°K (CRI >80)
50= 5000°K (CRI >80)

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7024AR2720C420-2700°K - CRI>80input 240Vac21971109525155-0.6
7024AR2715C415-2700°K - CRI>80input 240Vac16151089525155-0.6
7024AR2720CL20-2700°K - CRI>80on/off21971109525155-0.6
7024AR2715CL15-2700°K - CRI>80on/off16151089525155-0.6
7024AR5020C420-5000°K - CRI>80input 240Vac22911159525155-0.6
7024AR5015C415-5000°K - CRI>80input 240Vac16841129525155-0.6
7024AR5020CL20-5000°K - CRI>80on/off22911159525155-0.6
7024AR5015CL15-5000°K - CRI>80on/off16841129525155-0.6
7024AR3020C420-3000°K - CRI>80input 240Vac22621139525155-0.6
7024AR3015C415-3000°K - CRI>80input 240Vac16631119525155-0.6
7024AR3020CL20-3000°K - CRI>80on/off22621139525155-0.6
7024AR3015CL15-3000°K - CRI>80on/off16631119525155-0.6
7024AR4020C420-4000°K - CRI>80input 240Vac22801149525155-0.6
7024AR4015C415-4000°K - CRI>80input 240Vac16761129525155-0.6
7024AR4020CL20-4000°K - CRI>80on/off22801149525155-0.6
7024AR4015CL15-4000°K - CRI>80on/off16761129525155-0.6

Accessori
