art.-8057-cosmic 2-m6-c3-s1

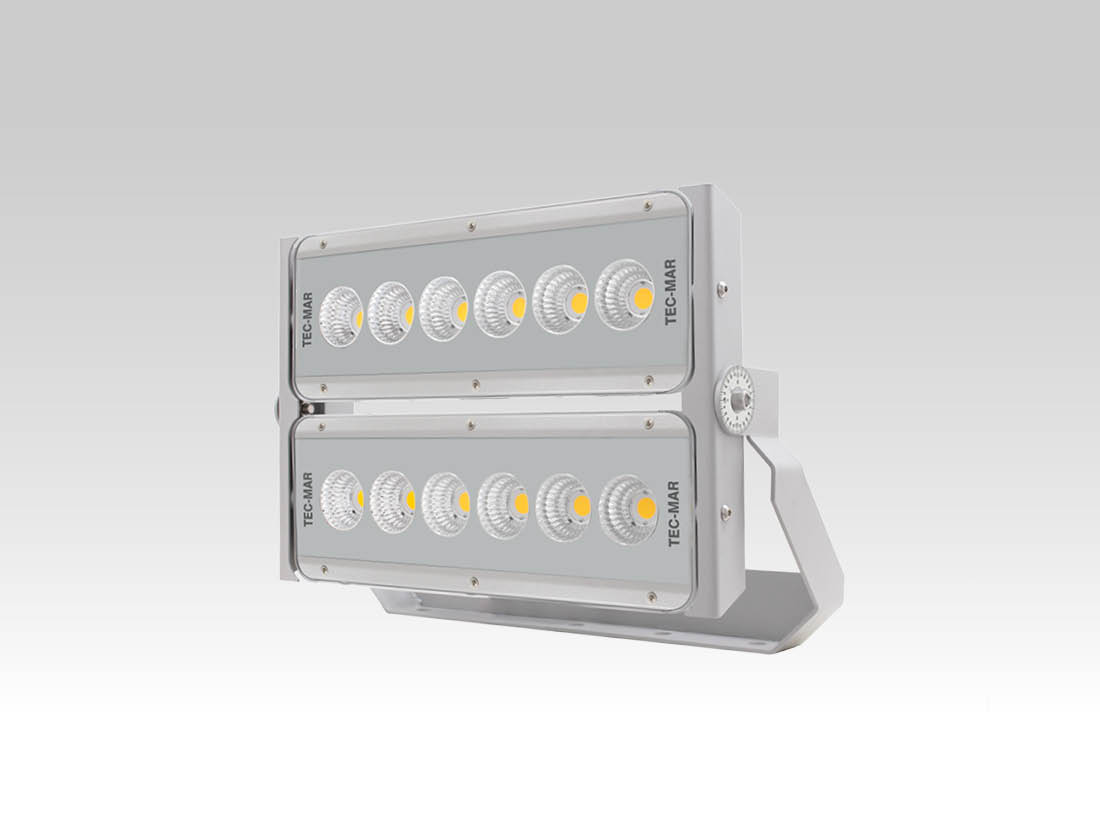

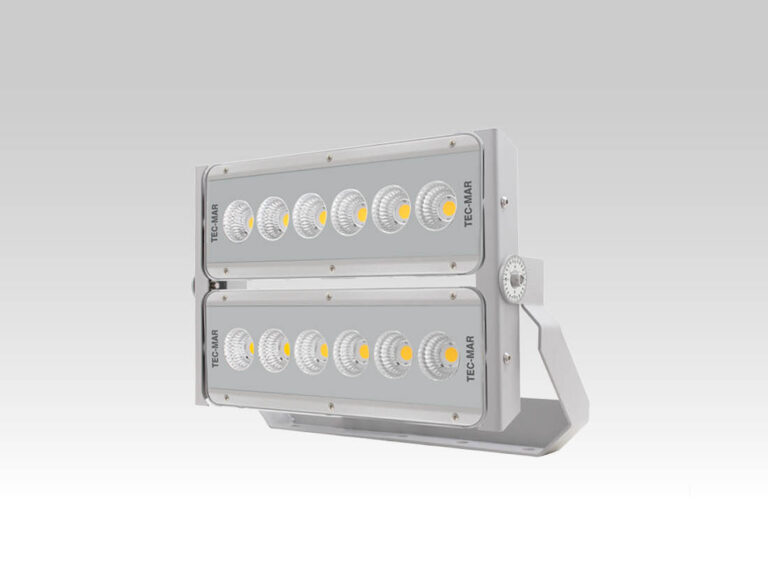

COSMIC 2/S1

(Ottica Concentrante 24°)

Proiettore led per interni ed esterni adatto per l’illuminazione di grandi aree ed impianti sportivi. Corpo in alluminio trafilato ossidato silver, staffa zincata, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, COSMIC 2 - 8057, Proiettori, art. 8057 Cosmic 2
Codici: 360
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8057S13= 3000°K (CRI >70)475GL= on/off
4= 4000°K (CRI >70)545GM= 1-10v
5= 5000°K (CRI >70)600GD= dali
7= 5700°K (CRI >70)900G4= input 400Vac
R= 5700°K (CRI >90)GX= 1-10v + dmx
MG= mezzanotte virtuale

Codici

W tot.
°K - CRI
Opzioni

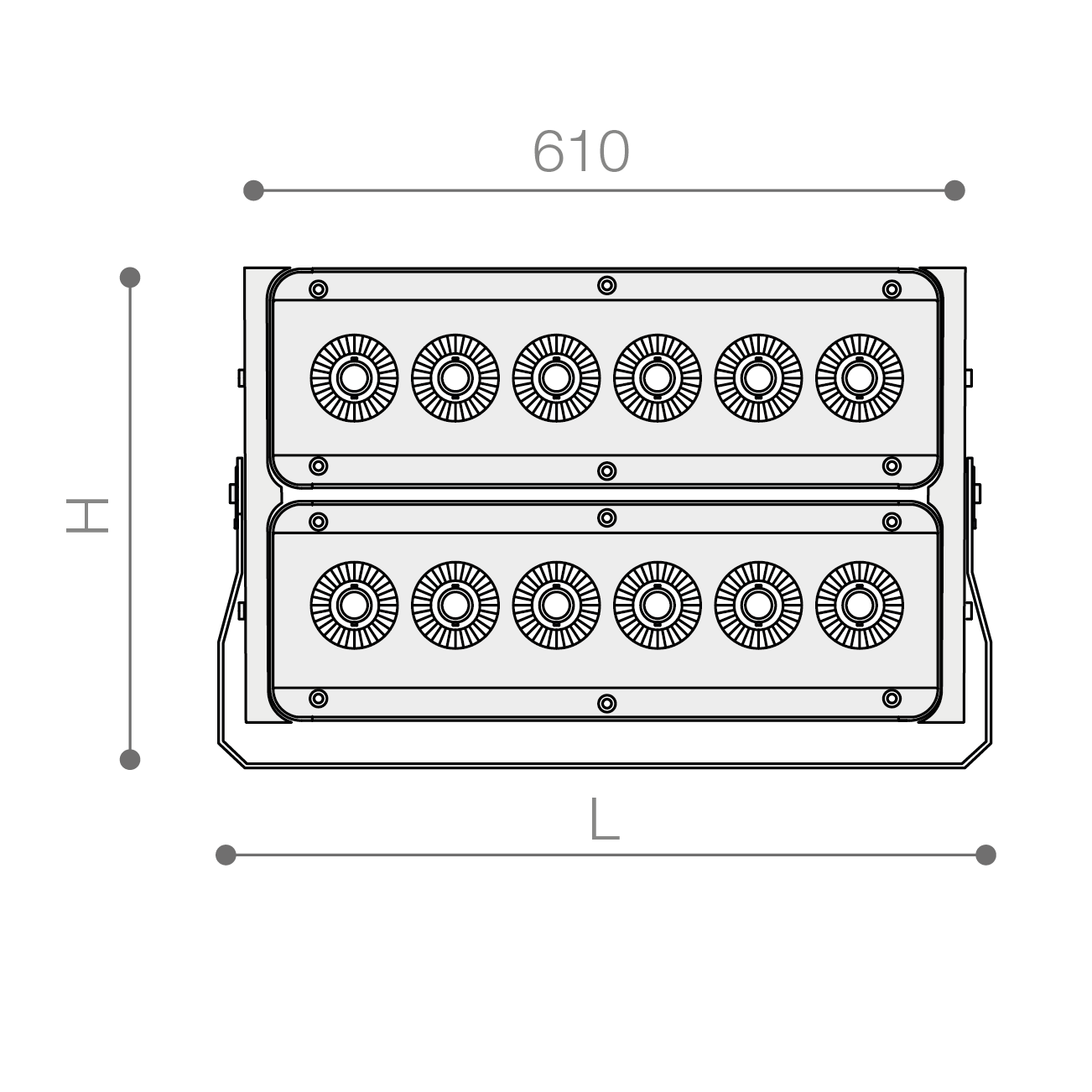

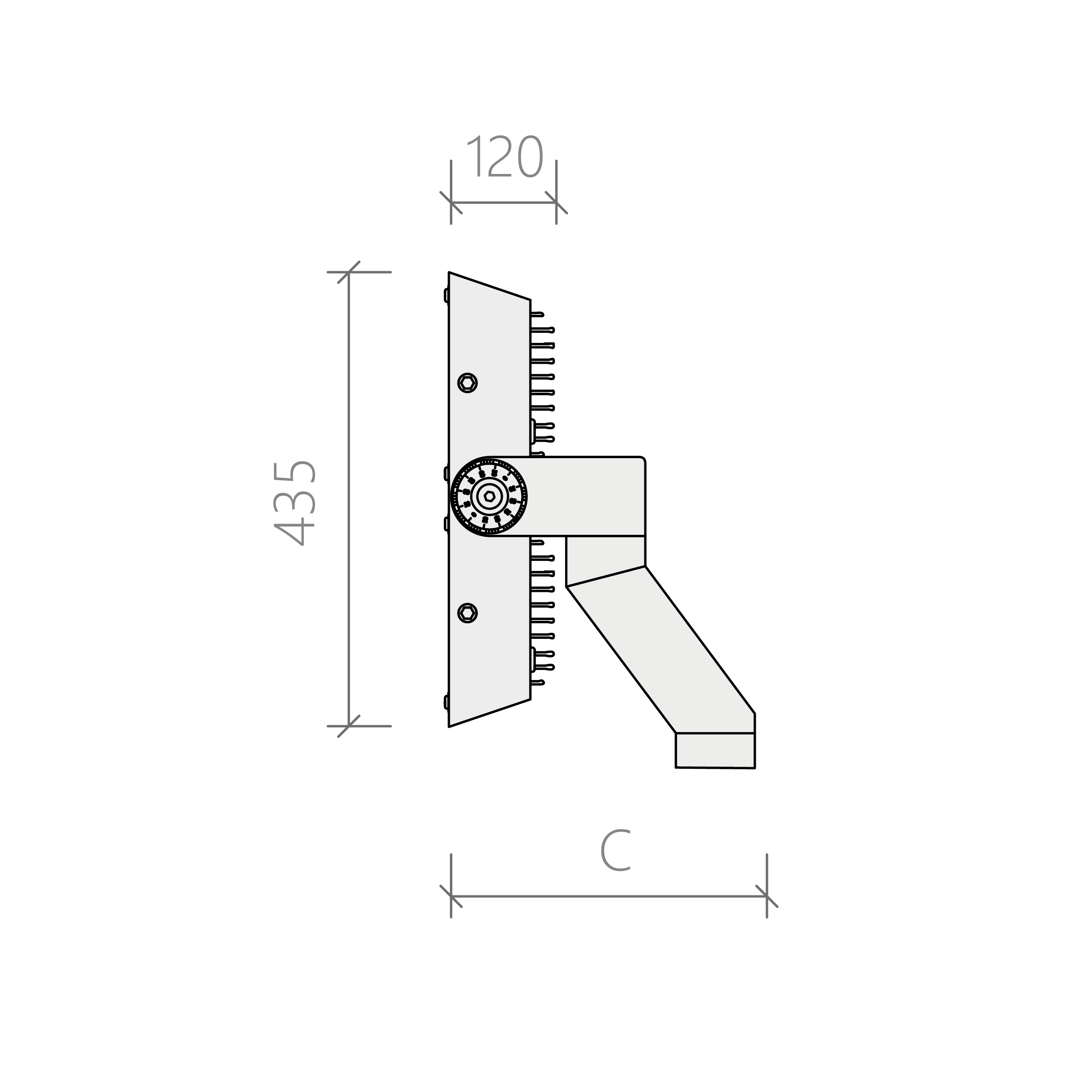

CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8057S14475GL475-4000°K - CRI>70on/off7955816968049025561020.5
8057S14545GL545-4000°K - CRI>70on/off9446817568049025561020.5
8057S14600GL600-4000°K - CRI>70on/off10175817168049025561020.5
8057S14900GL900-4000°K - CRI>70on/off14182815868049025561020.5
8057S14475GM475-4000°K - CRI>701-10v7955816968049025561020.5
8057S14545GM545-4000°K - CRI>701-10v9446817568049025561020.5
8057S14600GM600-4000°K - CRI>701-10v10175817168049025561020.5
8057S14900GM900-4000°K - CRI>701-10v14182815868049025561020.5
8057S14475GD475-4000°K - CRI>70dali7955816968049025561020.5
8057S14545GD545-4000°K - CRI>70dali9446817568049025561020.5
8057S14600GD600-4000°K - CRI>70dali10175817168049025561020.5
8057S14900GD900-4000°K - CRI>70dali14182815868049025561020.5
8057S14475G4475-4000°K - CRI>70input 400Vac7955816968049025561020.5
8057S14545G4545-4000°K - CRI>70input 400Vac9446817568049025561020.5
8057S14600G4600-4000°K - CRI>70input 400Vac10175817168049025561020.5
8057S14900G4900-4000°K - CRI>70input 400Vac14182815868049025561020.5
8057S14475GX475-4000°K - CRI>701-10v + dmx7955816968049025561020.5
8057S14545GX545-4000°K - CRI>701-10v + dmx9446817568049025561020.5
8057S14600GX600-4000°K - CRI>701-10v + dmx10175817168049025561020.5
8057S14900GX900-4000°K - CRI>701-10v + dmx14182815868049025561020.5

Accessori
