FLAT 1/S5

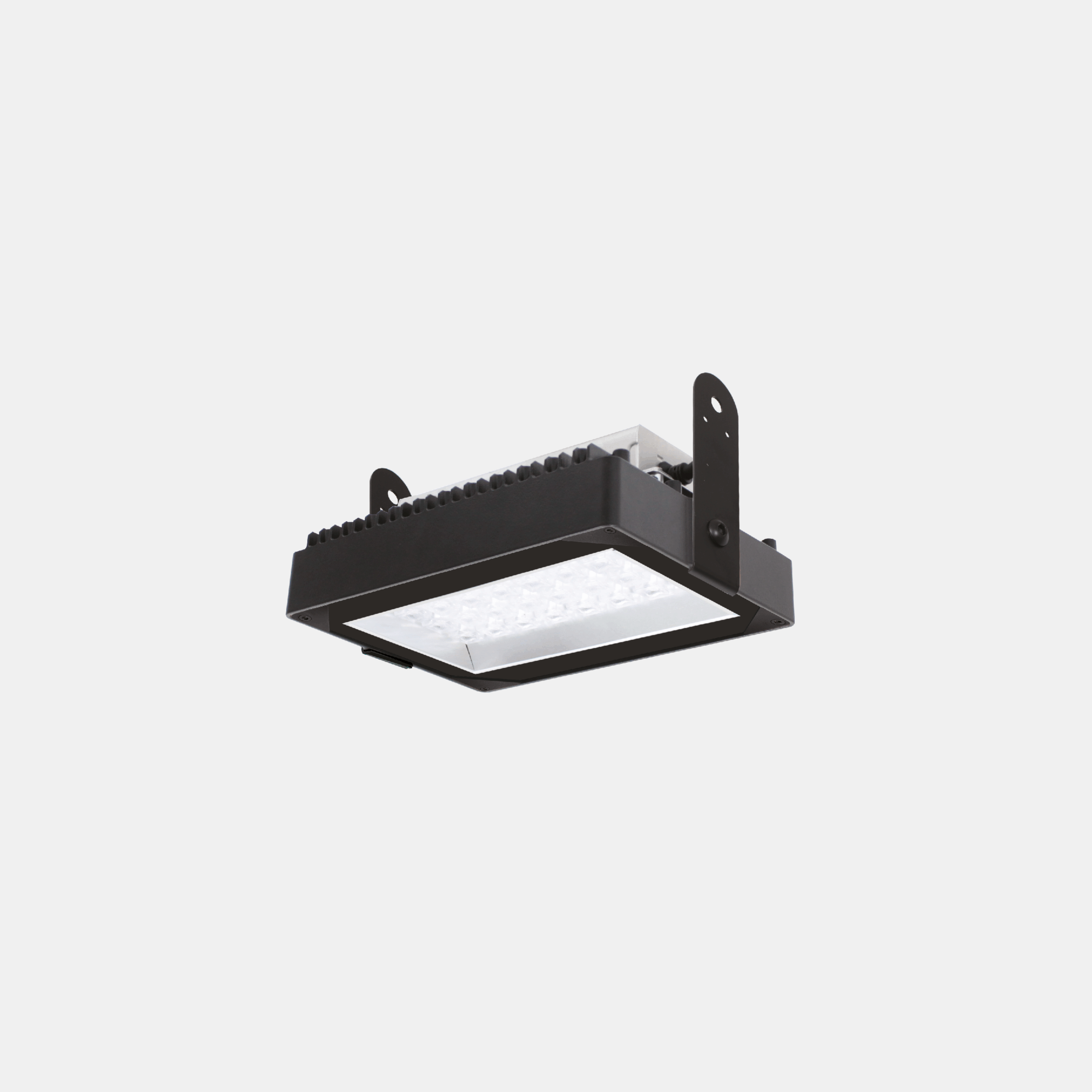

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore nero, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, art. 8310 Flat 1
Codici: 140
Colore: Nero opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8310S53= 3000°K (CRI >80)056EL= on/off
4= 4000°K (CRI >80)080LD= dali
5= 5000°K (CRI >80)090D1= dali + em. 1h
9= 4000°K (CRI >90)100E1= em. 1h
120E3= em. 3h
130
140

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8310S59140E3140-4000°K - CRI>90em. 3h16883121265195155-3.9
8310S59130E3130-4000°K - CRI>90em. 3h15970123265195155-3.9
8310S59120E3120-4000°K - CRI>90em. 3h15018125265195155-3.9
8310S59100E3100-4000°K - CRI>90em. 3h12995130265195155-3.9
8310S59090E390-4000°K - CRI>90em. 3h12465139265195155-3.9
8310S59080E380-4000°K - CRI>90em. 3h11045138265195155-3.9
8310S59056E356-4000°K - CRI>90em. 3h7896141265195155-3.9
8310S59140E1140-4000°K - CRI>90em. 1h16883121265195155-3.9
8310S59130E1130-4000°K - CRI>90em. 1h15970123265195155-3.9
8310S59120E1120-4000°K - CRI>90em. 1h15018125265195155-3.9
8310S59100E1100-4000°K - CRI>90em. 1h12995130265195155-3.9
8310S59090E190-4000°K - CRI>90em. 1h12465139265195155-3.9
8310S59080E180-4000°K - CRI>90em. 1h11045138265195155-3.9
8310S59056E156-4000°K - CRI>90em. 1h7896141265195155-3.9
8310S59140D1140-4000°K - CRI>90dali + em. 1h16883121265195155-3.9
8310S59130D1130-4000°K - CRI>90dali + em. 1h15970123265195155-3.9
8310S59120D1120-4000°K - CRI>90dali + em. 1h15018125265195155-3.9
8310S59100D1100-4000°K - CRI>90dali + em. 1h12995130265195155-3.9
8310S59090D190-4000°K - CRI>90dali + em. 1h12465139265195155-3.9
8310S59080D180-4000°K - CRI>90dali + em. 1h11045138265195155-3.9
