AGAPE 2/C3

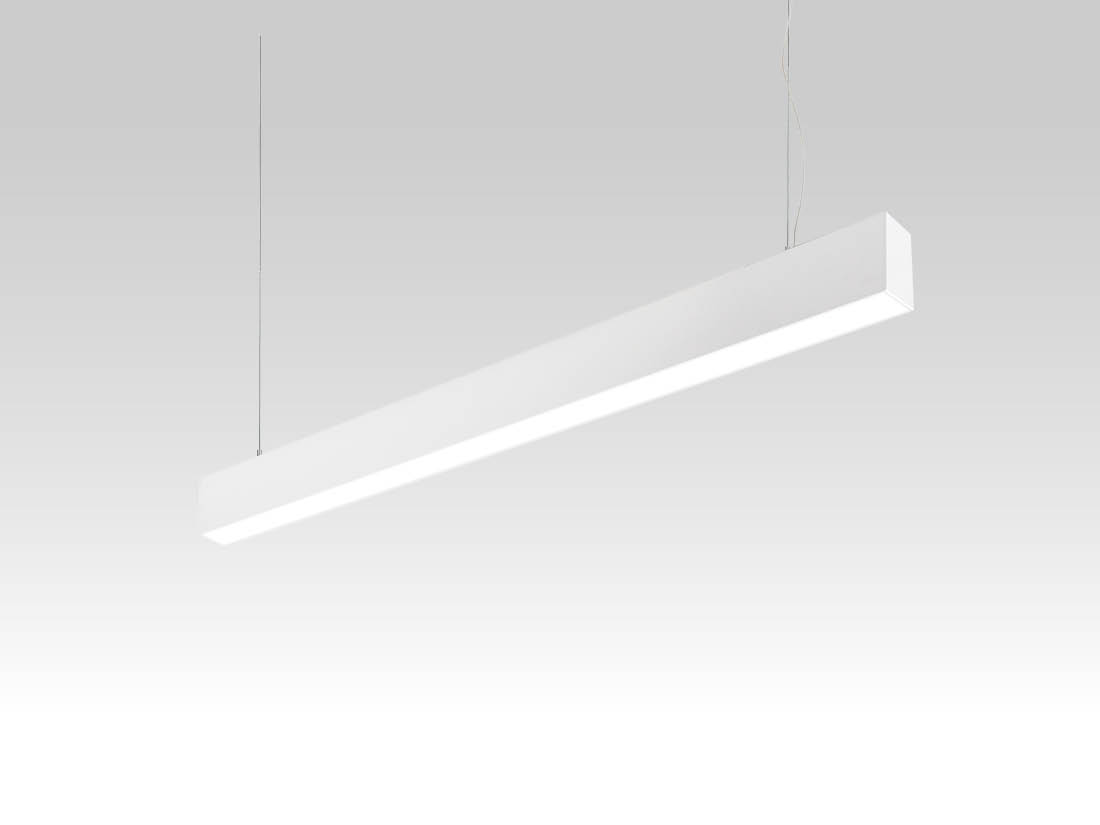

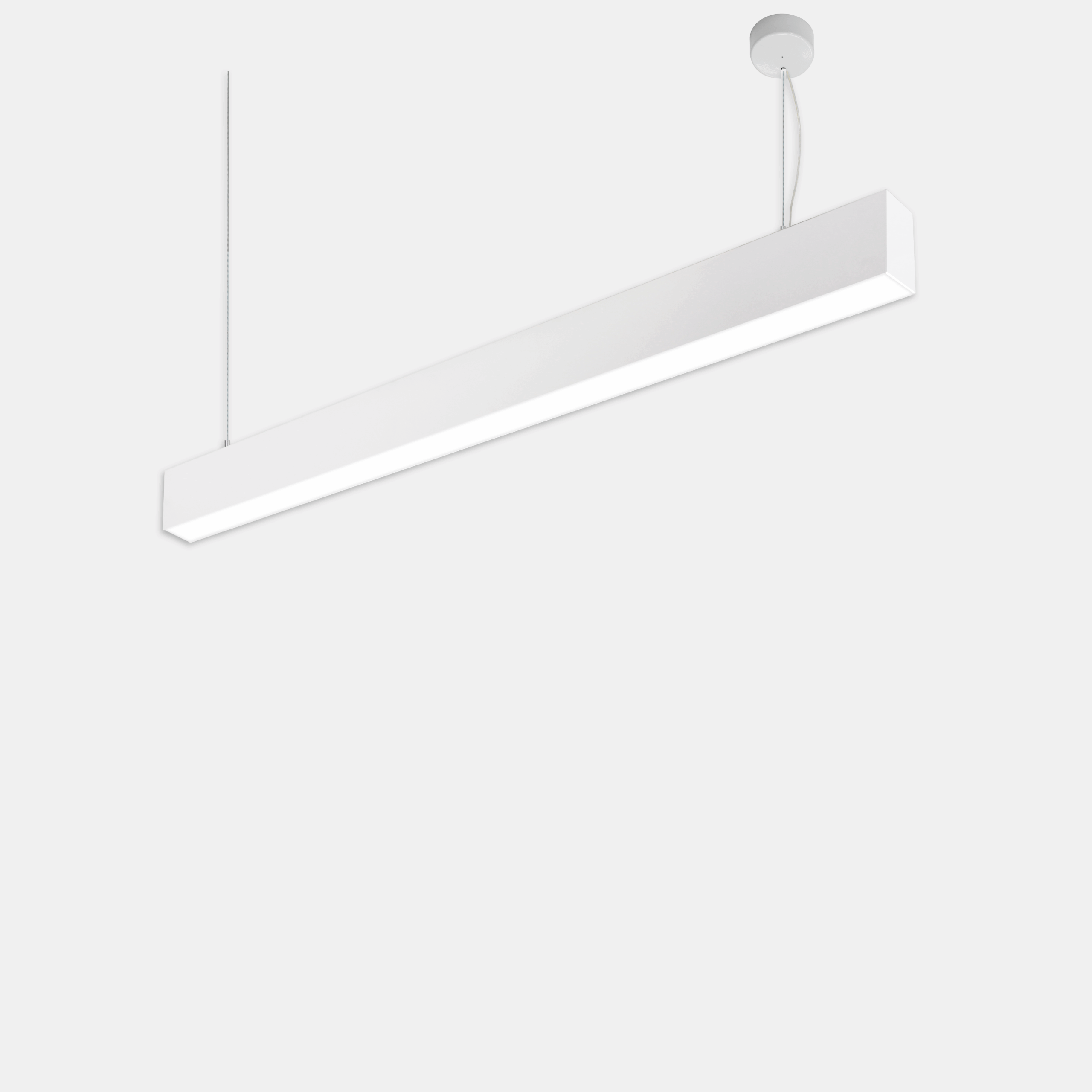

Led linear suspended fitting. Extruded aluminum body, painted with embossed matt white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, AGAPE 2 - 2007, Architectural Indoor, art. 2007 Agape 2

Models: 340

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.			Options
2007	C3	27	= 2700°K (CRI >80)	14	58		EL	= on/off
		30	= 3000°K (CRI >80)	20	60		LD	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	27	62		L7	= dali 2 / dali 2 push (6P+T)
		93	= 3000°K (CRI >90)	31	71		D1	= dali 2 + em. 1h (6P+T)
		94	= 4000°K (CRI >90)	40	76		E1	= em. 1h
				45	90		E3	= em. 3h
				49	12	= 120W

Models

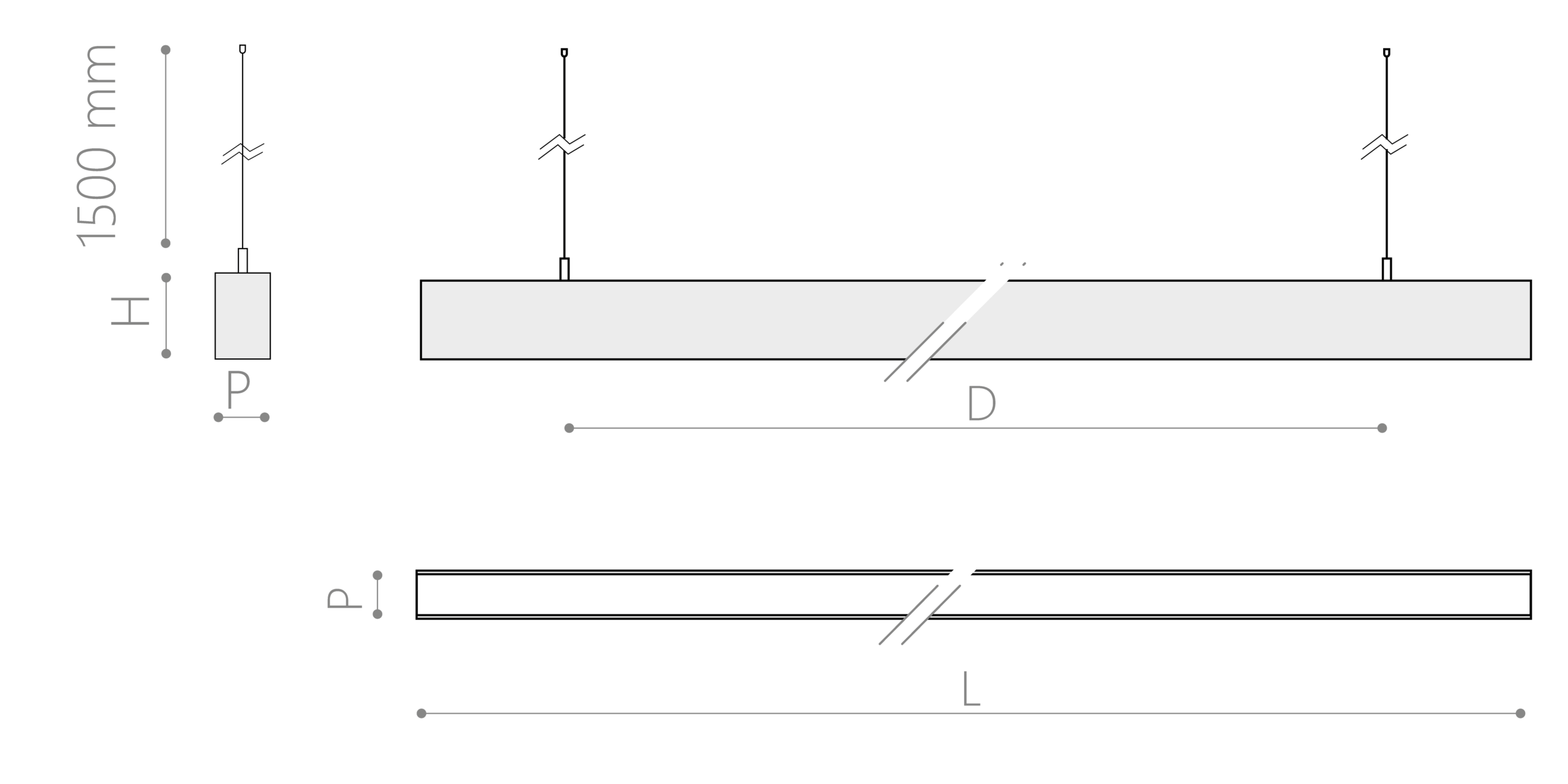

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2007C34014EL	14	250	4000°K - CRI>80	on/off	1964	140	56	90	565	320	1.6
2007C34031EL	31	250	4000°K - CRI>80	on/off	4321	139	56	90	1125	880	2.8
2007C34040EL	40	250	4000°K - CRI>80	on/off	5500	137	56	90	1405	1160	3.5
2007C34049EL	49	250	4000°K - CRI>80	on/off	6678	136	56	90	1685	1440	4.4
2007C34020EL	20	350	4000°K - CRI>80	on/off	2695	135	56	90	565	320	1.6
2007C34045EL	45	350	4000°K - CRI>80	on/off	5929	132	56	90	1125	880	2.8
2007C34058EL	58	350	4000°K - CRI>80	on/off	7546	130	56	90	1405	1160	3.5
2007C34062EL	62	250	4000°K - CRI>80	on/off	8643	139	56	90	2250	2005	5.6
2007C34071EL	71	350	4000°K - CRI>80	on/off	9163	129	56	90	1685	1440	4.4
2007C34027EL	27	450	4000°K - CRI>80	on/off	3396	126	56	90	565	320	1.6
2007C34060EL	60	450	4000°K - CRI>80	on/off	7471	125	56	90	1125	880	2.8
2007C34076EL	76	450	4000°K - CRI>80	on/off	9509	125	56	90	1405	1160	3.5
2007C34090EL	90	350	4000°K - CRI>80	on/off	11857	132	56	90	2250	2005	5.6
2007C34012EL	120	450	4000°K - CRI>80	on/off	14942	125	56	90	2250	2005	5.6
2007C34014LD	14	250	4000°K - CRI>80	dali 2 / dali 2 push	1964	140	56	90	565	320	1.6
2007C34031LD	31	250	4000°K - CRI>80	dali 2 / dali 2 push	4321	139	56	90	1125	880	2.8
2007C34040LD	40	250	4000°K - CRI>80	dali 2 / dali 2 push	5500	137	56	90	1405	1160	3.5
2007C34049LD	49	250	4000°K - CRI>80	dali 2 / dali 2 push	6678	136	56	90	1685	1440	4.4
2007C34020LD	20	350	4000°K - CRI>80	dali 2 / dali 2 push	2695	135	56	90	565	320	1.6
2007C34045LD	45	350	4000°K - CRI>80	dali 2 / dali 2 push	5929	132	56	90	1125	880	2.8
