AGAPE 2 – Mod. MC

(Blind Module)

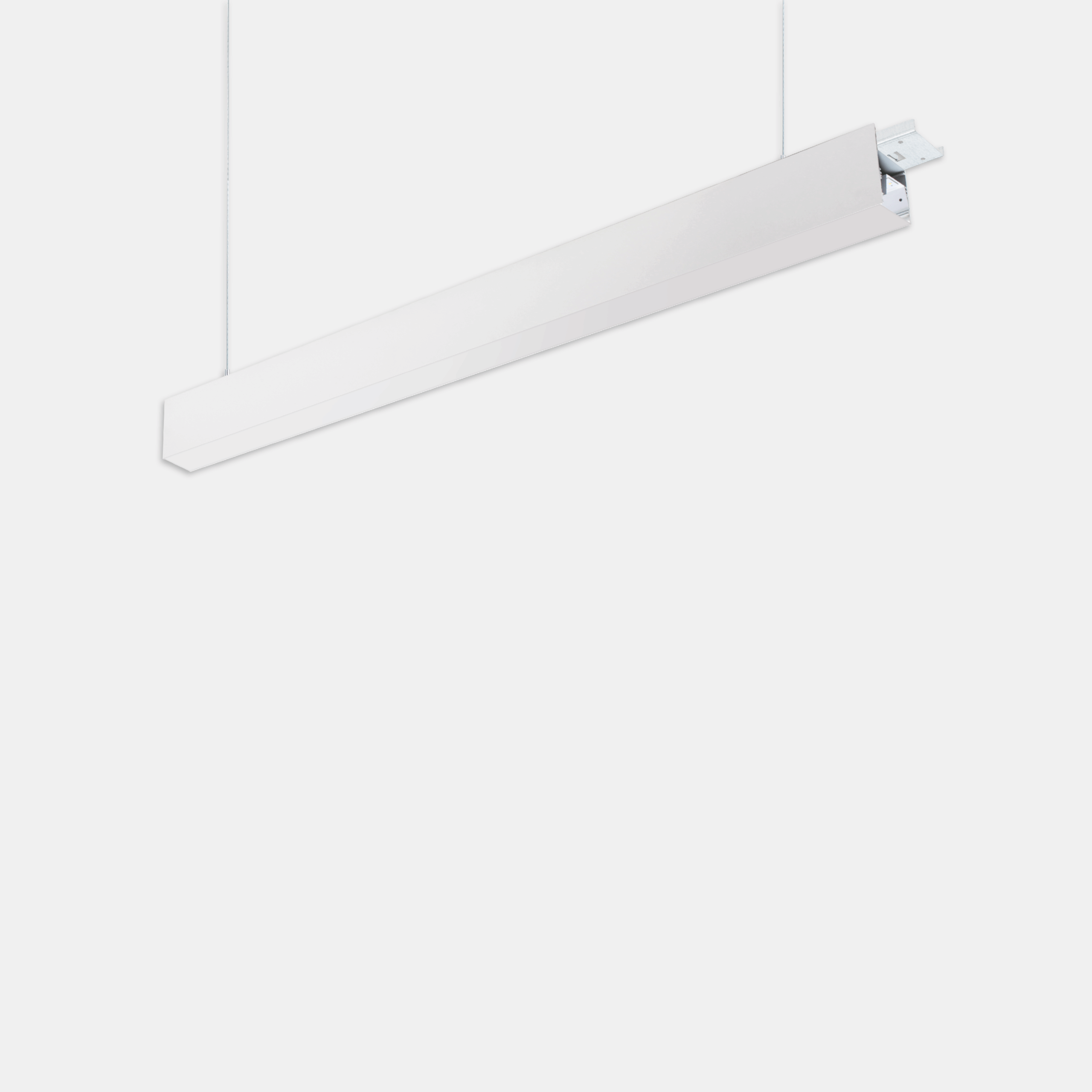

Blind module without LED modules with color-painted sheet steel lower cover and upper cover with frosted opal diffuser. Linear joint included. 1.5m steel suspension cables included. Power cord and rosette not included. Epoxy-polyester powder-coated extruded aluminum body inmatte white non-yellowing with fine embossed finish.

Categories: Led, AGAPE 2, Architectural Indoor, AGAPE 2

Models: 15

Color: Matt white

Catalogue abstract

Installation instructions

Legenda

Art.	Mod.	Dimension		Options
2007	MC	0006	= 565 mm	E3	= 2P+T
		0012	= 1125 mm	E5	= 4P+T
		0015	= 1405 mm	E7	= 6P+T
		0017	= 1685 mm
		0022	= 2250 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2007MC0006E3	-	-	-	-	-	-	56	90	565	320	1.4
2007MC0012E3	-	-	-	-	-	-	56	90	1125	880	2.8
2007MC0015E3	-	-	-	-	-	-	56	90	1405	1160	3.5
2007MC0017E3	-	-	-	-	-	-	56	90	1685	1440	4.4
2007MC0022E3	-	-	-	-	-	-	56	90	2250	1950	5.6
2007MC0006E5	-	-	-	-	-	-	56	90	565	320	1.4
2007MC0012E5	-	-	-	-	-	-	56	90	1125	880	2.8
2007MC0015E5	-	-	-	-	-	-	56	90	1405	1160	3.5
2007MC0017E5	-	-	-	-	-	-	56	90	1685	1440	4.4
2007MC0022E5	-	-	-	-	-	-	56	90	2250	1950	5.6
2007MC0006E7	-	-	-	-	-	-	56	90	565	320	1.4
2007MC0012E7	-	-	-	-	-	-	56	90	1125	880	2.8
2007MC0015E7	-	-	-	-	-	-	56	90	1405	1160	3.5
2007MC0017E7	-	-	-	-	-	-	56	90	1685	1440	4.4
2007MC0022E7	-	-	-	-	-	-	56	90	2250	1950	5.6
