art.-2009-space-r2-bianco

SPACE/R2

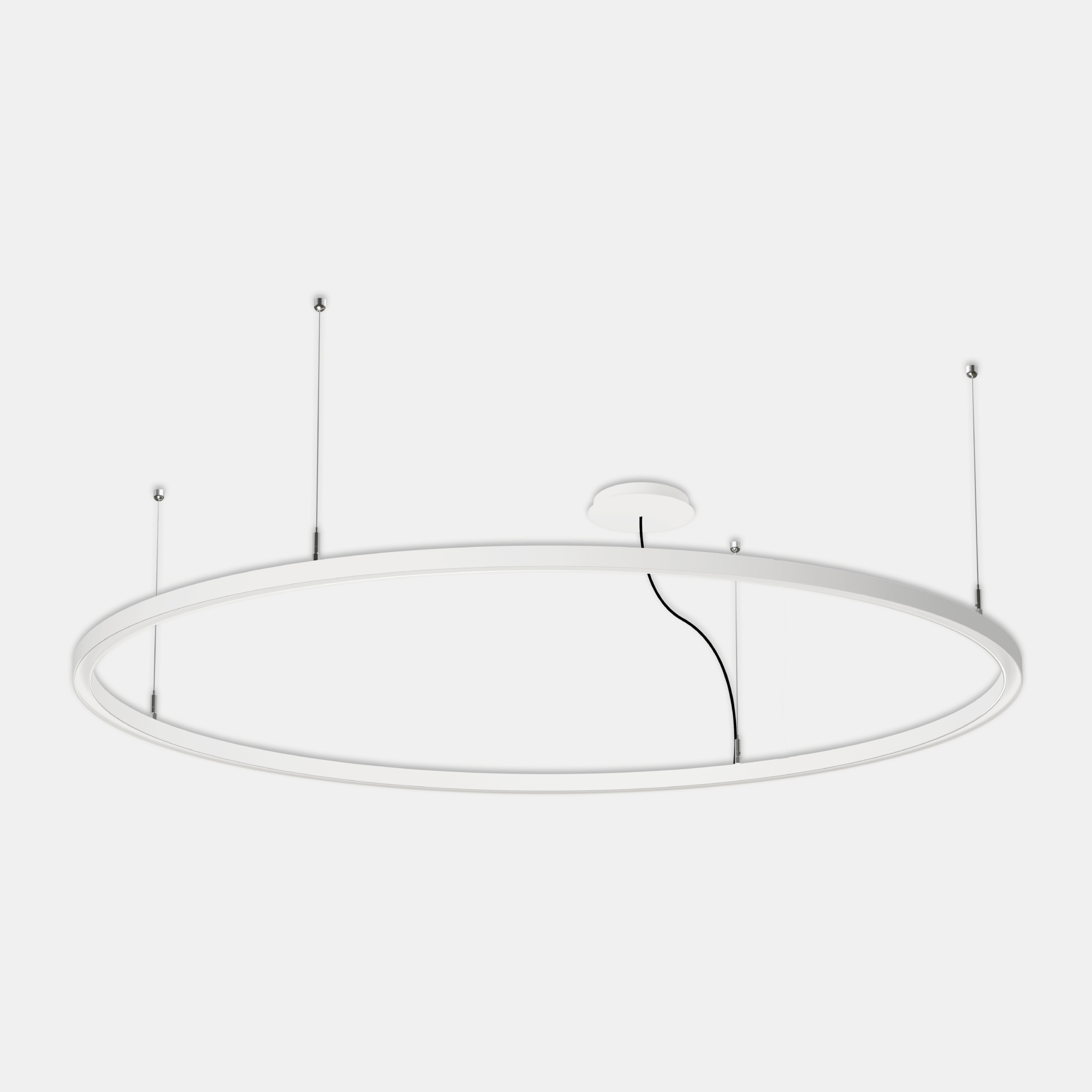

Circular LED fixture suitable for pendant installation. Body made of extruded and calendered aluminum, painted with epoxy-polyester powders in white non-yellowing color with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort.
Categories: Led, SPACE - 2009, art. 2009 Space, Architectural Indoor, art. 2009 Space
Models: 6
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2009R297= 2700°K (CRI >90)88BL= on/off
93= 3000°K (CRI >90)BD= dali 2 / dali 2 push
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2009R29488BL88-4000°K - CRI>90on/off6671761270-25--
2009R29388BL88-3000°K - CRI>90on/off6418731270-25--
2009R29788BL88-2700°K - CRI>90on/off6304721270-25--
2009R29488BD88-4000°K - CRI>90dali 2 / dali 2 push6671761270-25--
2009R29388BD88-3000°K - CRI>90dali 2 / dali 2 push6418731270-25--
2009R29788BD88-2700°K - CRI>90dali 2 / dali 2 push6304721270-25--
