art.-2009-space-r2-nero

SPACE – Mod. R2

(Satin diffuser – UGR<22)

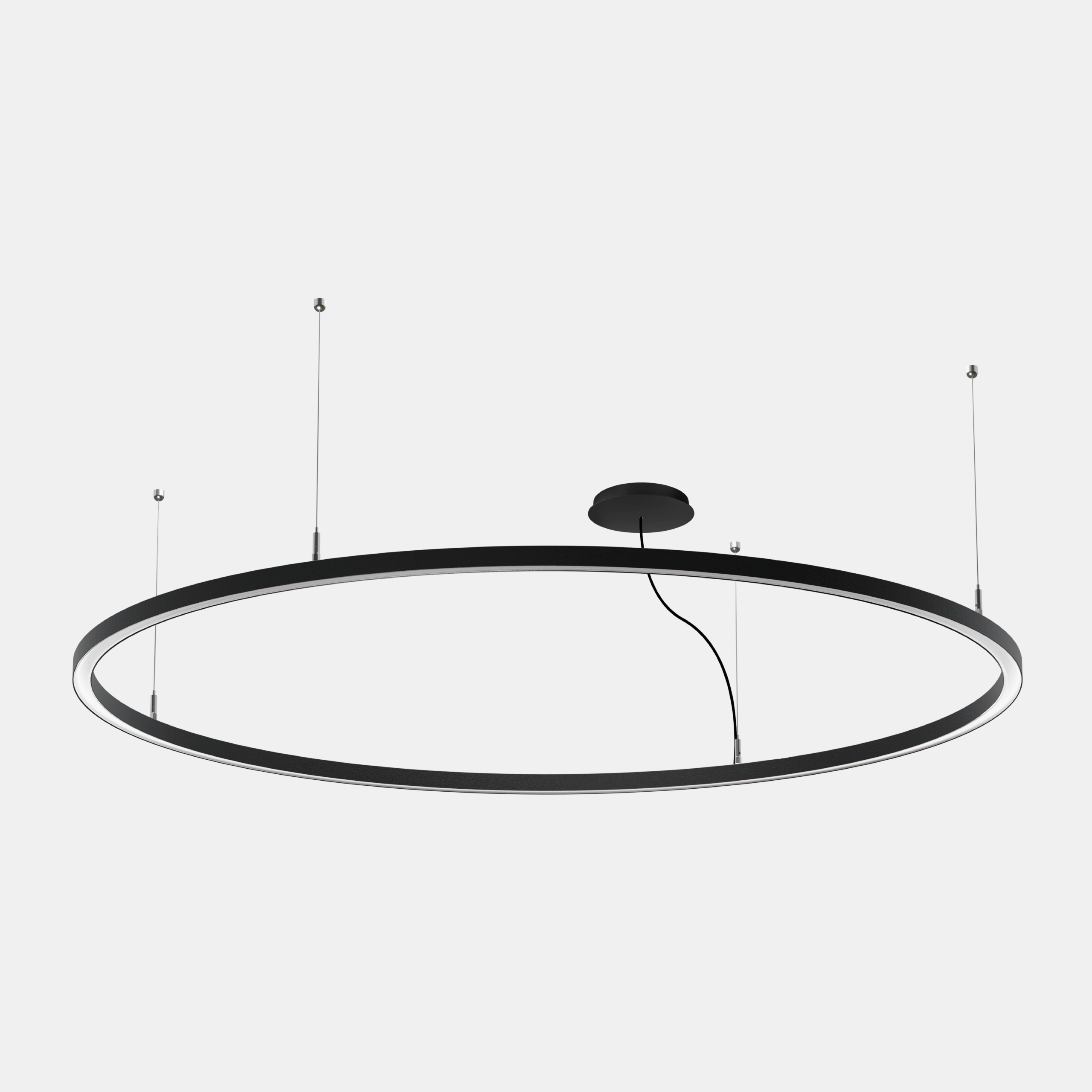

Circular LED fixture suitable for pendant installation. Body made of extruded and calendered aluminum, painted with epoxy-polyester powders in black non-yellowing color with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort.
Categories: Led, SPACE, SPACE - 2009, Architectural Indoor, SPACE
Models: 6
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2009R297= 2700°K (CRI >90)88NL= on/off
93= 3000°K (CRI >90)ND= dali 2 / dali 2 push
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2009R29488NL88-4000°K - CRI>90on/off6671761270-25--
2009R29388NL88-3000°K - CRI>90on/off6418731270-25--
2009R29788NL88-2700°K - CRI>90on/off6304721270-25--
2009R29488ND88-4000°K - CRI>90dali 2 / dali 2 push6671761270-25--
2009R29388ND88-3000°K - CRI>90dali 2 / dali 2 push6418731270-25--
2009R29788ND88-2700°K - CRI>90dali 2 / dali 2 push6304721270-25--
