SPACE – Mod. R6

(Satin diffuser – UGR<22)

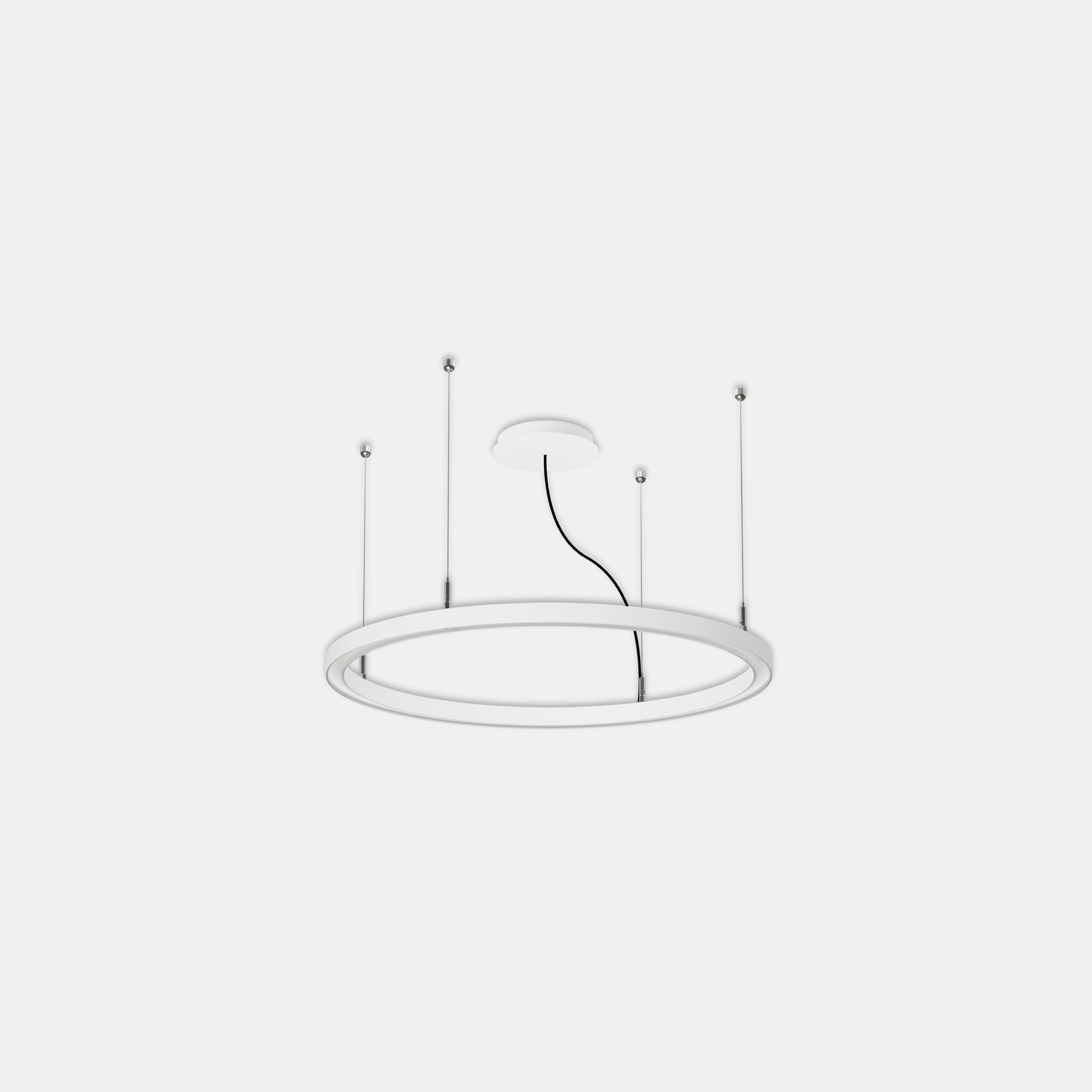

Circular LED fixture suitable for pendant installation. Body made of extruded and calendered aluminum, painted with epoxy-polyester powders in white non-yellowing color with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort.
Categories: Led, SPACE, SPACE - 2009, Architectural Indoor, SPACE
Models: 6
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2009R697= 2700°K (CRI >90)41BL= on/off
93= 3000°K (CRI >90)BD= dali 2 / dali 2 push
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2009R69441BL41-4000°K - CRI>90on/off310876600-25--
2009R69341BL41-3000°K - CRI>90on/off299073600-25--
2009R69741BL41-2700°K - CRI>90on/off293772600-25--
2009R69441BD41-4000°K - CRI>90dali 2 / dali 2 push310876600-25--
2009R69341BD41-3000°K - CRI>90dali 2 / dali 2 push299073600-25--
2009R69741BD41-2700°K - CRI>90dali 2 / dali 2 push293772600-25--
