art.-2009-space-r9-grigio

SPACE/R9

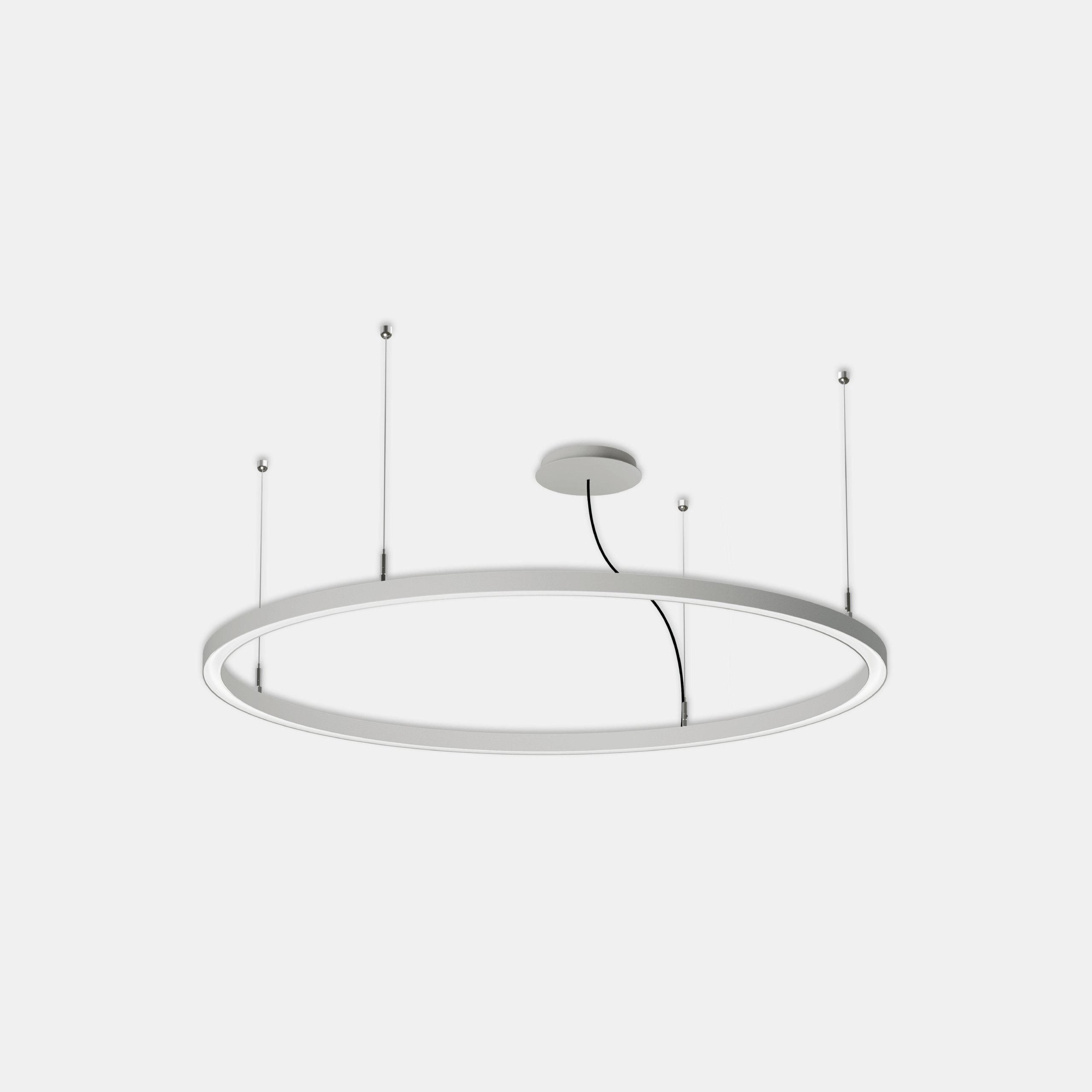

Circular LED fixture suitable for pendant installation. Body made of extruded and calendered aluminum, painted with epoxy-polyester powders in grey non-yellowing color with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort.
Categories: Led, SPACE - 2009, art. 2009 Space, Architectural Indoor, art. 2009 Space
Models: 6
Color: Matt grey
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2009R997= 2700°K (CRI >90)63GL= on/off
93= 3000°K (CRI >90)GD= dali 2 / dali 2 push
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2009R99463GL63-4000°K - CRI>90on/off477676920-25--
2009R99363GL63-3000°K - CRI>90on/off459573920-25--
2009R99763GL63-2700°K - CRI>90on/off451372920-25--
2009R99463GD63-4000°K - CRI>90dali 2 / dali 2 push477676920-25--
2009R99363GD63-3000°K - CRI>90dali 2 / dali 2 push459573920-25--
2009R99763GD63-2700°K - CRI>90dali 2 / dali 2 push451372920-25--
