art.-7030-polar-hp-ar-antracite

POLAR HP/AR

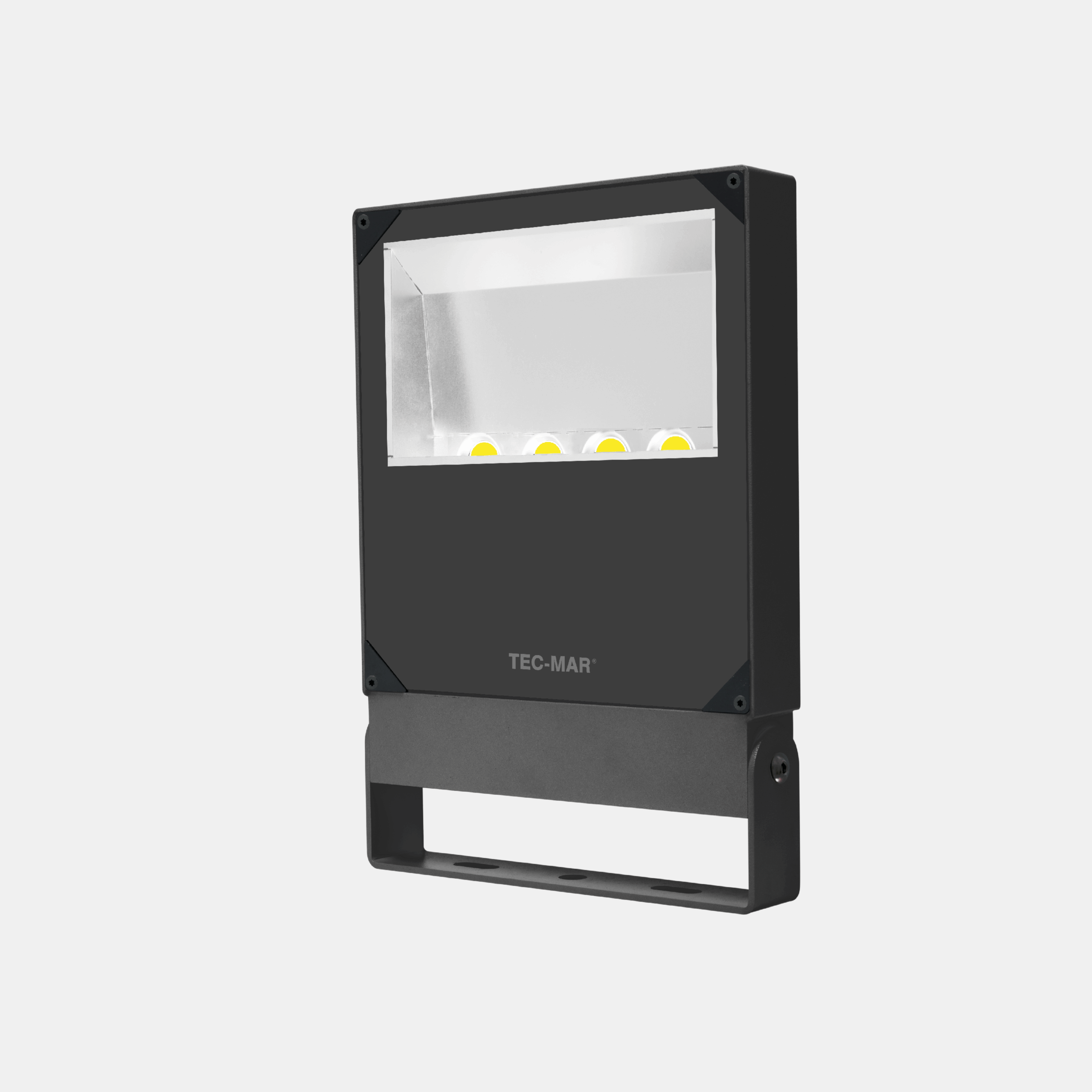

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, Floodlights, art. 7037 Polar HP
Models: 468
Color: Anthracite
Catalogue abstract
Installation instructions

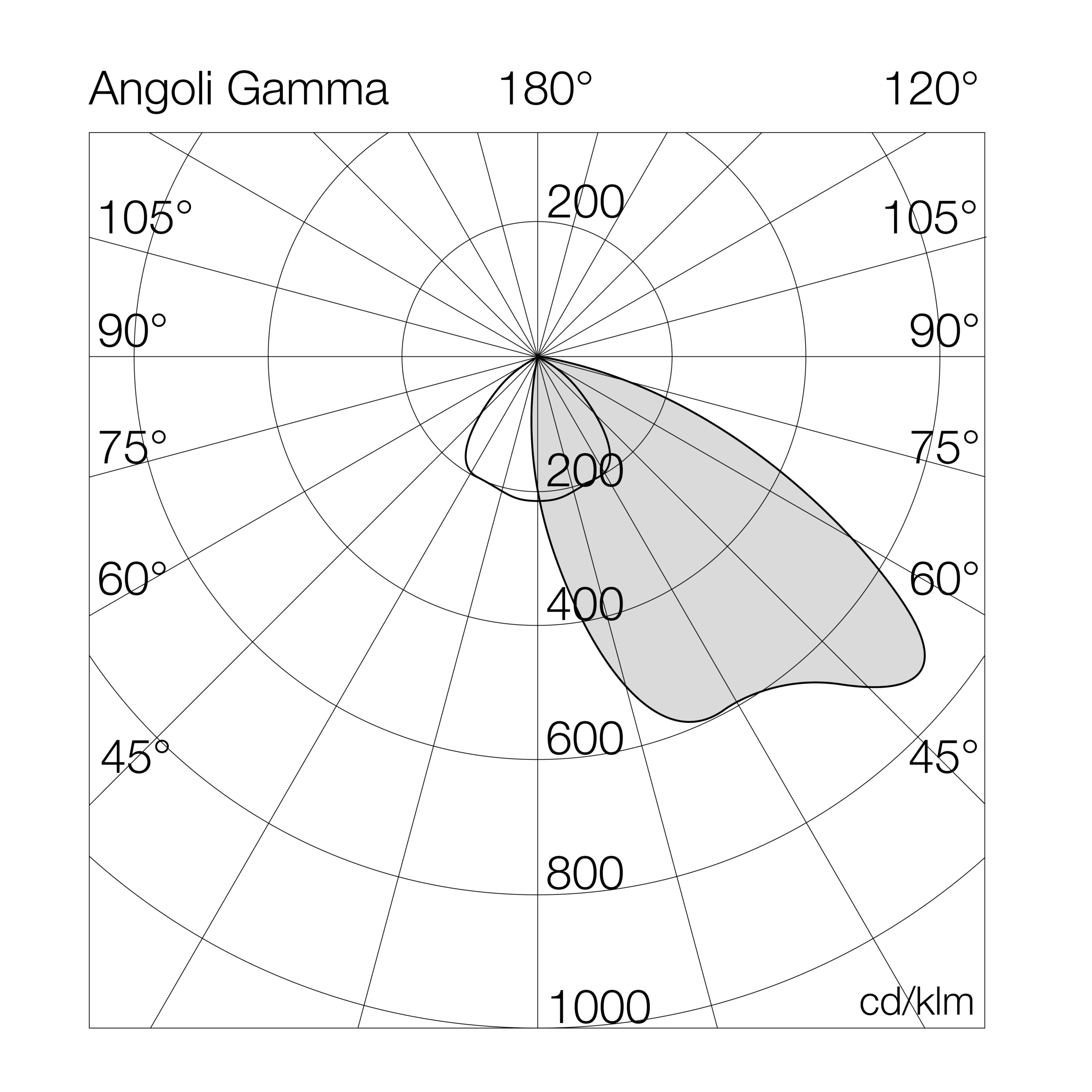

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7030AR2= ambra (CRI >80) 040EL= on/off
3= 3000°K (CRI >80)050LD= dali
4= 4000°K (CRI >80)060VA= acid-etched glass
5= 5000°K (CRI >80)070E2= class II
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
R= 5700°K (CRI >70)130
150
160
175
190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7030AR4040EL404000°K - CRI>80on/off7146179295554255.6
7030AR4050EL504000°K - CRI>80on/off8879178295554255.6
7030AR4060EL604000°K - CRI>80on/off10581176295554255.6
7030AR4070EL704000°K - CRI>80on/off12237175295554255.6
7030AR4080EL804000°K - CRI>80on/off14389180295554255.6
7030AR4090EL904000°K - CRI>80on/off15852176295554255.6
7030AR4100EL1004000°K - CRI>80on/off17620176295554255.6
7030AR4120EL1204000°K - CRI>80on/off20207168295554255.6
7030AR4130EL1304000°K - CRI>80on/off21772167295554255.6
7030AR4150EL1504000°K - CRI>80on/off24082161295554255.6
7030AR4160EL1604000°K - CRI>80on/off26354165295554255.6
7030AR4175EL1754000°K - CRI>80on/off27842159295554255.6
7030AR4190EL1904000°K - CRI>80on/off31232164295554255.6
7030AR4040LD404000°K - CRI>80dali7146179295554255.6
7030AR4050LD504000°K - CRI>80dali8879178295554255.6
7030AR4060LD604000°K - CRI>80dali10581176295554255.6
7030AR4070LD704000°K - CRI>80dali12237175295554255.6
7030AR4080LD804000°K - CRI>80dali14389180295554255.6
7030AR4090LD904000°K - CRI>80dali15852176295554255.6
7030AR4100LD1004000°K - CRI>80dali17620176295554255.6

Accessories
