art.-7030-polar-hp-cr-antracite

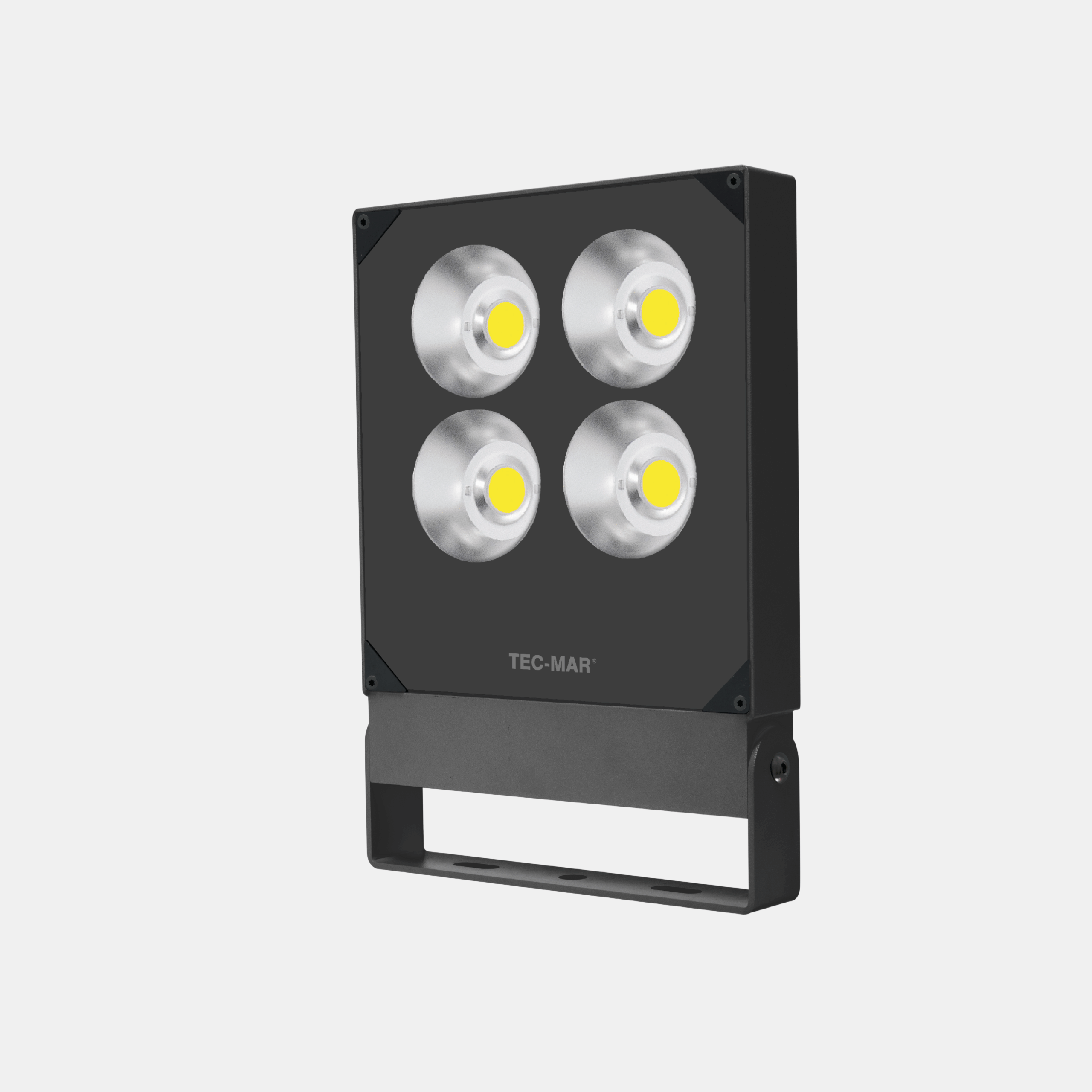

POLAR HP/CR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, Floodlights, art. 7037 Polar HP
Models: 468
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7030CR2= ambra (CRI >80) 040EL= on/off
3= 3000°K (CRI >80)050LD= dali
4= 4000°K (CRI >80)060VA= acid-etched glass
5= 5000°K (CRI >80)070E2= class II
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
R= 5700°K (CRI >70)130
150
160
175
190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7030CR4040EL404000°K - CRI>80on/off7269182295554255.6
7030CR4050EL504000°K - CRI>80on/off9032181295554255.6
7030CR4060EL604000°K - CRI>80on/off10764179295554255.6
7030CR4070EL704000°K - CRI>80on/off12448178295554255.6
7030CR4080EL804000°K - CRI>80on/off14637183295554255.6
7030CR4090EL904000°K - CRI>80on/off16125179295554255.6
7030CR4100EL1004000°K - CRI>80on/off17923179295554255.6
7030CR4120EL1204000°K - CRI>80on/off20555171295554255.6
7030CR4130EL1304000°K - CRI>80on/off22147170295554255.6
7030CR4150EL1504000°K - CRI>80on/off24497163295554255.6
7030CR4160EL1604000°K - CRI>80on/off26808168295554255.6
7030CR4175EL1754000°K - CRI>80on/off28323162295554255.6
7030CR4190EL1904000°K - CRI>80on/off31770167295554255.6
7030CR4040LD404000°K - CRI>80dali7269182295554255.6
7030CR4050LD504000°K - CRI>80dali9032181295554255.6
7030CR4060LD604000°K - CRI>80dali10764179295554255.6
7030CR4070LD704000°K - CRI>80dali12448178295554255.6
7030CR4080LD804000°K - CRI>80dali14637183295554255.6
7030CR4090LD904000°K - CRI>80dali16125179295554255.6
7030CR4100LD1004000°K - CRI>80dali17923179295554255.6

Accessories
