art.-7030-polar-hp-pr-antracite

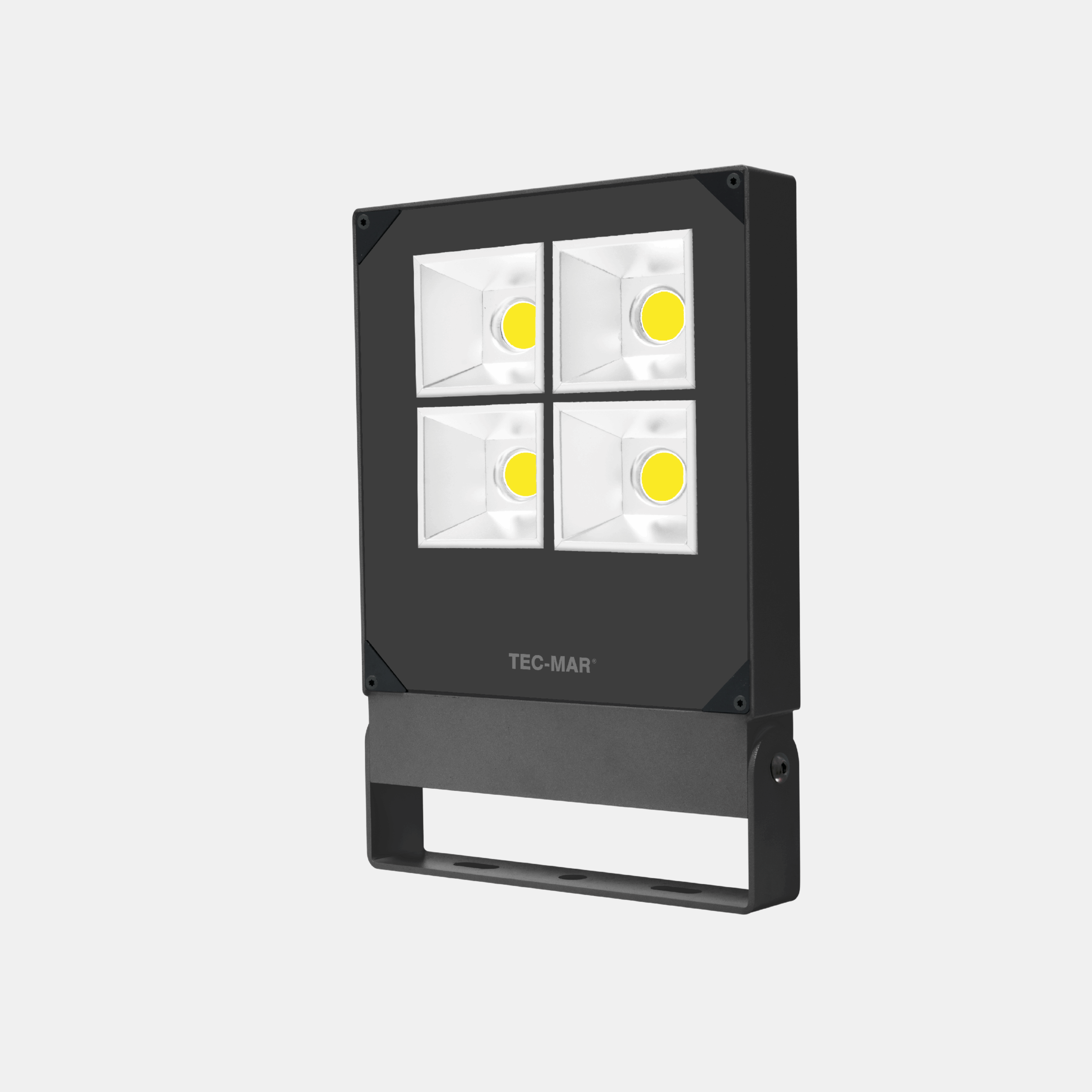

POLAR HP/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR HP - 7030, POLAR, Floodlights, art. 7037 Polar HP
Models: 468
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7030PR2= ambra (CRI >80) 040EL= on/off
3= 3000°K (CRI >80)050LD= dali 2
4= 4000°K (CRI >80)060VA= acid-etched glass
5= 5000°K (CRI >80)070E2= class II
080
090
100
120
130
150
160
175
190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7030PR4040EL40-4000°K - CRI>80on/off754818929555425-5.6
7030PR4050EL50-4000°K - CRI>80on/off937918829555425-5.6
7030PR4060EL60-4000°K - CRI>80on/off1117718629555425-5.6
7030PR4070EL70-4000°K - CRI>80on/off1292618529555425-5.6
7030PR4080EL80-4000°K - CRI>80on/off1519919029555425-5.6
7030PR4090EL90-4000°K - CRI>80on/off1674518629555425-5.6
7030PR4100EL100-4000°K - CRI>80on/off1861218629555425-5.6
7030PR4120EL120-4000°K - CRI>80on/off2134517829555425-5.6
7030PR4130EL130-4000°K - CRI>80on/off2299817729555425-5.6
7030PR4150EL150-4000°K - CRI>80on/off2543817029555425-5.6
7030PR4160EL160-4000°K - CRI>80on/off2783817429555425-5.6
7030PR4175EL175-4000°K - CRI>80on/off2941116829555425-5.6
7030PR4190EL190-4000°K - CRI>80on/off3299117429555425-5.6
7030PR4040LD40-4000°K - CRI>80dali754818929555425-5.6
7030PR4050LD50-4000°K - CRI>80dali937918829555425-5.6
7030PR4060LD60-4000°K - CRI>80dali1117718629555425-5.6
7030PR4070LD70-4000°K - CRI>80dali1292618529555425-5.6
7030PR4080LD80-4000°K - CRI>80dali1519919029555425-5.6
7030PR4090LD90-4000°K - CRI>80dali1674518629555425-5.6
7030PR4100LD100-4000°K - CRI>80dali1861218629555425-5.6

Accessories
