art.-7051-snap-c3-c6-p3-p6-corten

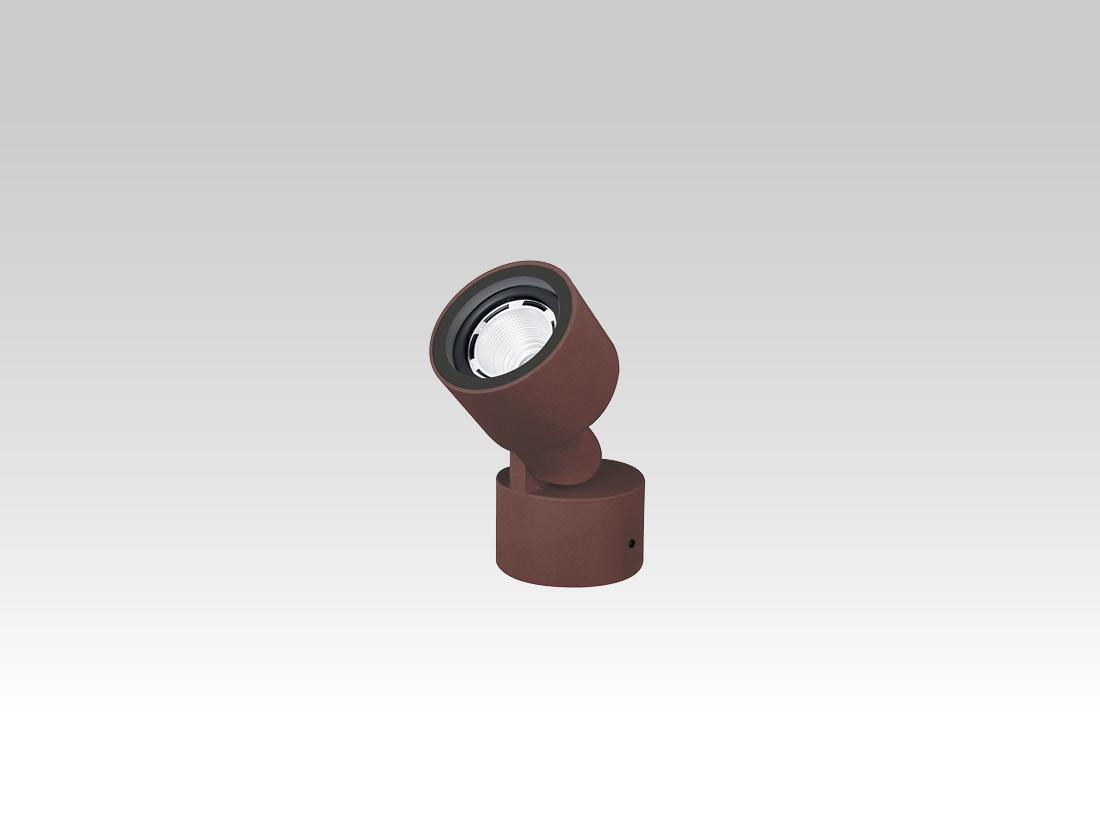

SNAP/C3

Indoor and outdoor led floodlight. Die-cast aluminum body painted with corten epoxy powders. AC direct 220-240V 50/60Hz led boards. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, SNAP, SNAP - 7051, Architectural Outdoor, art. 7051 Snap
Models: 9
Color: Corten
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7051C327= 2700°K (CRI >80)05CL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7051C34005CL5-4000°K - CRI>80on/off5011006545124-0.50
7051C34010CL10-4000°K - CRI>80on/off10021006545124-0.50
7051C34015CL15-4000°K - CRI>80on/off15021006545124-0.50
7051C33005CL5-3000°K - CRI>80on/off468946545124-0.50
7051C33010CL10-3000°K - CRI>80on/off937946545124-0.50
7051C33015CL15-3000°K - CRI>80on/off1404946545124-0.50
7051C32705CL5-2700°K - CRI>80on/off453916545124-0.50
7051C32710CL10-2700°K - CRI>80on/off907916545124-0.50
7051C32715CL15-2700°K - CRI>80on/off1359916545124-0.50

Accessories
