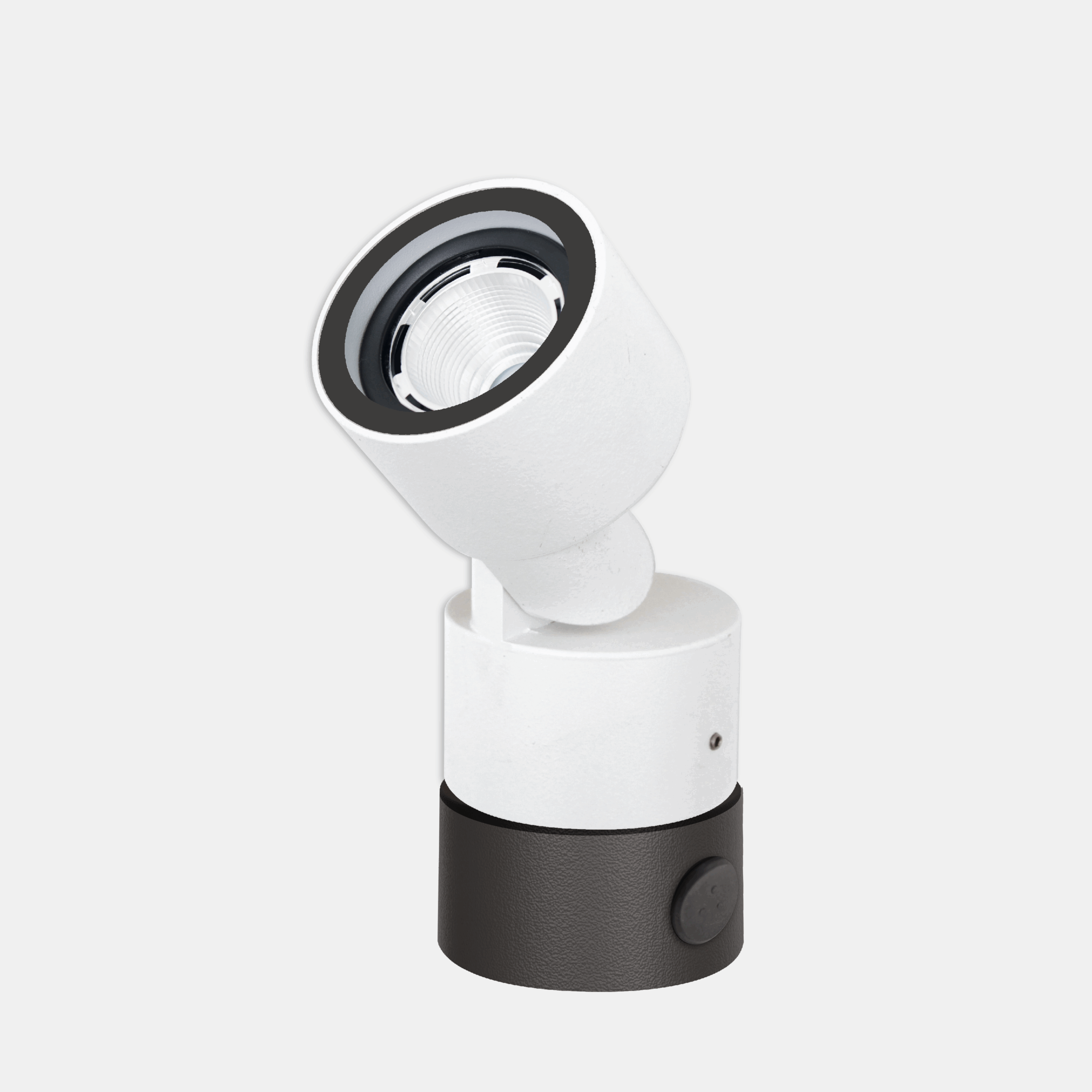

SNAP – Mod. P3

(30° rotosymmetric spot optics)

Outdoor and indoor led spotlight, suitable for ground/floor, wall and ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color white. Extra-clear tempered flat glass diffuser 4 mm thick. Optics with metallized polycarbonate reflector with high flux efficiency, anti-glare and anti-reflection, 30° rotosymmetric spot optics.
Categories: Led, SNAP - 7051, Architectural Outdoor, SNAP
Models: 18
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7051P327= 2700°K (CRI >80)05BL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7051P34005BL5-4000°K - CRI>80on/off5011007045164-0.60
7051P34010BL10-4000°K - CRI>80on/off10021007045164-0.60
7051P34015BL15-4000°K - CRI>80on/off15021007045164-0.60
7051P33005BL5-3000°K - CRI>80on/off468947045164-0.60
7051P33010BL10-3000°K - CRI>80on/off937947045164-0.60
7051P33015BL15-3000°K - CRI>80on/off1404947045164-0.60
7051P32705BL5-2700°K - CRI>80on/off453917045164-0.60
7051P32710BL10-2700°K - CRI>80on/off907917045164-0.60
7051P32715BL15-2700°K - CRI>80on/off1359917045164-0.60
7051P34005BL5-4000°K - CRI>80on/off5011007045164-0.60
7051P34010BL10-4000°K - CRI>80on/off10021007045164-0.60
7051P34015BL15-4000°K - CRI>80on/off15021007045164-0.60
7051P33005BL5-3000°K - CRI>80on/off468947045164-0.60
7051P33010BL10-3000°K - CRI>80on/off937947045164-0.60
7051P33015BL15-3000°K - CRI>80on/off1404947045164-0.60
7051P32705BL5-2700°K - CRI>80on/off453917045164-0.60
7051P32710BL10-2700°K - CRI>80on/off907917045164-0.60
7051P32715BL15-2700°K - CRI>80on/off1359917045164-0.60
