art.-7051-snap-p3-p6-verde

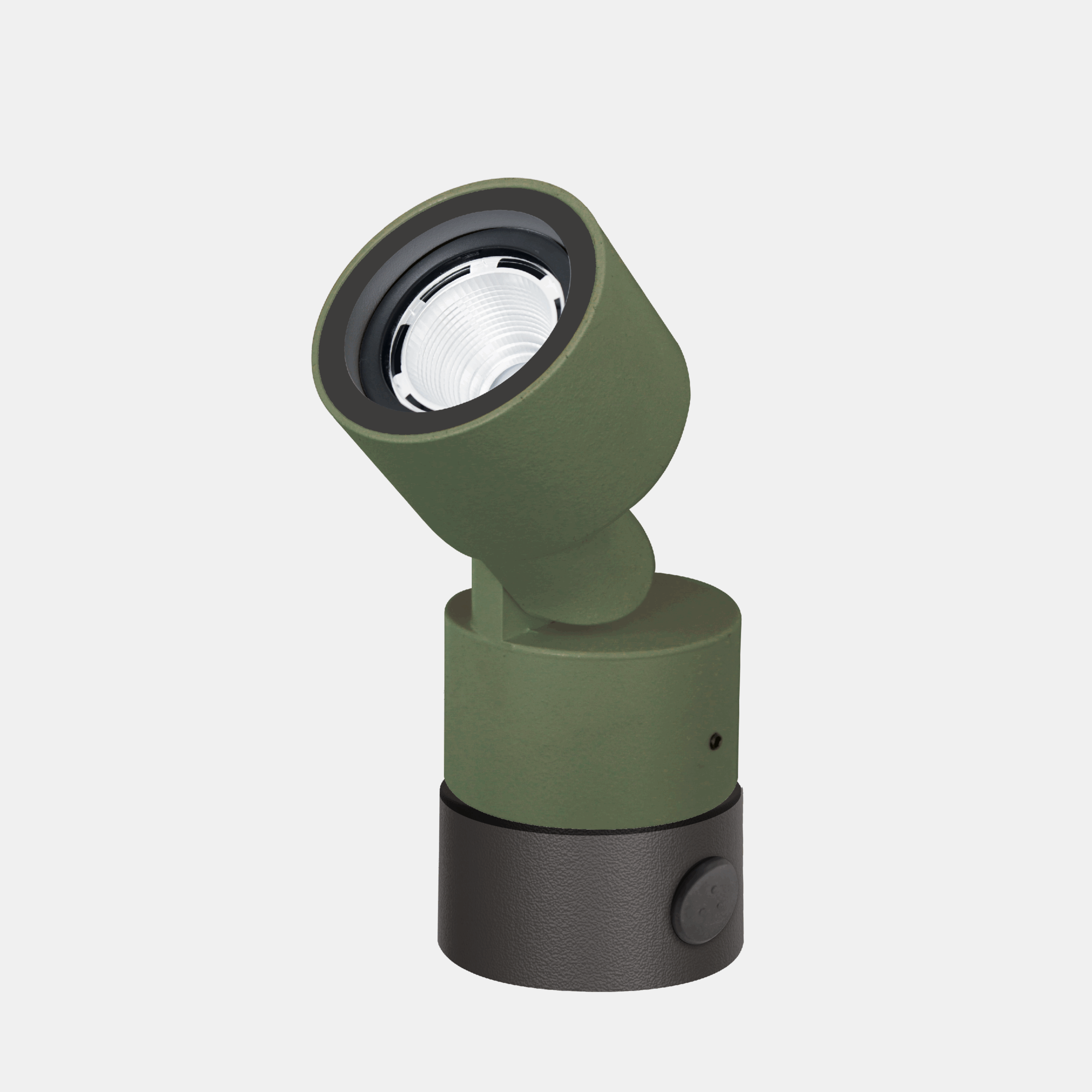

SNAP – Mod. P3

(30° rotosymmetric spot optics)

Outdoor and indoor led spotlight, suitable for ground/floor, wall and ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color green. Extra-clear tempered flat glass diffuser 4 mm thick. Optics with metallized polycarbonate reflector with high flux efficiency, anti-glare and anti-reflection, 30° rotosymmetric spot optics.
Categories: Led, SNAP - 7051, Architectural Outdoor, SNAP
Models: 18
Color: Green
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7051P327= 2700°K (CRI >80)05VL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7051P34005VL5-4000°K - CRI>80on/off5011007045164-0.60
7051P34010VL10-4000°K - CRI>80on/off10021007045164-0.60
7051P34015VL15-4000°K - CRI>80on/off15021007045164-0.60
7051P33005VL5-3000°K - CRI>80on/off468947045164-0.60
7051P33010VL10-3000°K - CRI>80on/off937947045164-0.60
7051P33015VL15-3000°K - CRI>80on/off1404947045164-0.60
7051P32705VL5-2700°K - CRI>80on/off453917045164-0.60
7051P32710VL10-2700°K - CRI>80on/off907917045164-0.60
7051P32715VL15-2700°K - CRI>80on/off1359917045164-0.60
7051P34005VL5-4000°K - CRI>80on/off5011007045164-0.60
7051P34010VL10-4000°K - CRI>80on/off10021007045164-0.60
7051P34015VL15-4000°K - CRI>80on/off15021007045164-0.60
7051P33005VL5-3000°K - CRI>80on/off468947045164-0.60
7051P33010VL10-3000°K - CRI>80on/off937947045164-0.60
7051P33015VL15-3000°K - CRI>80on/off1404947045164-0.60
7051P32705VL5-2700°K - CRI>80on/off453917045164-0.60
7051P32710VL10-2700°K - CRI>80on/off907917045164-0.60
7051P32715VL15-2700°K - CRI>80on/off1359917045164-0.60

Accessories
