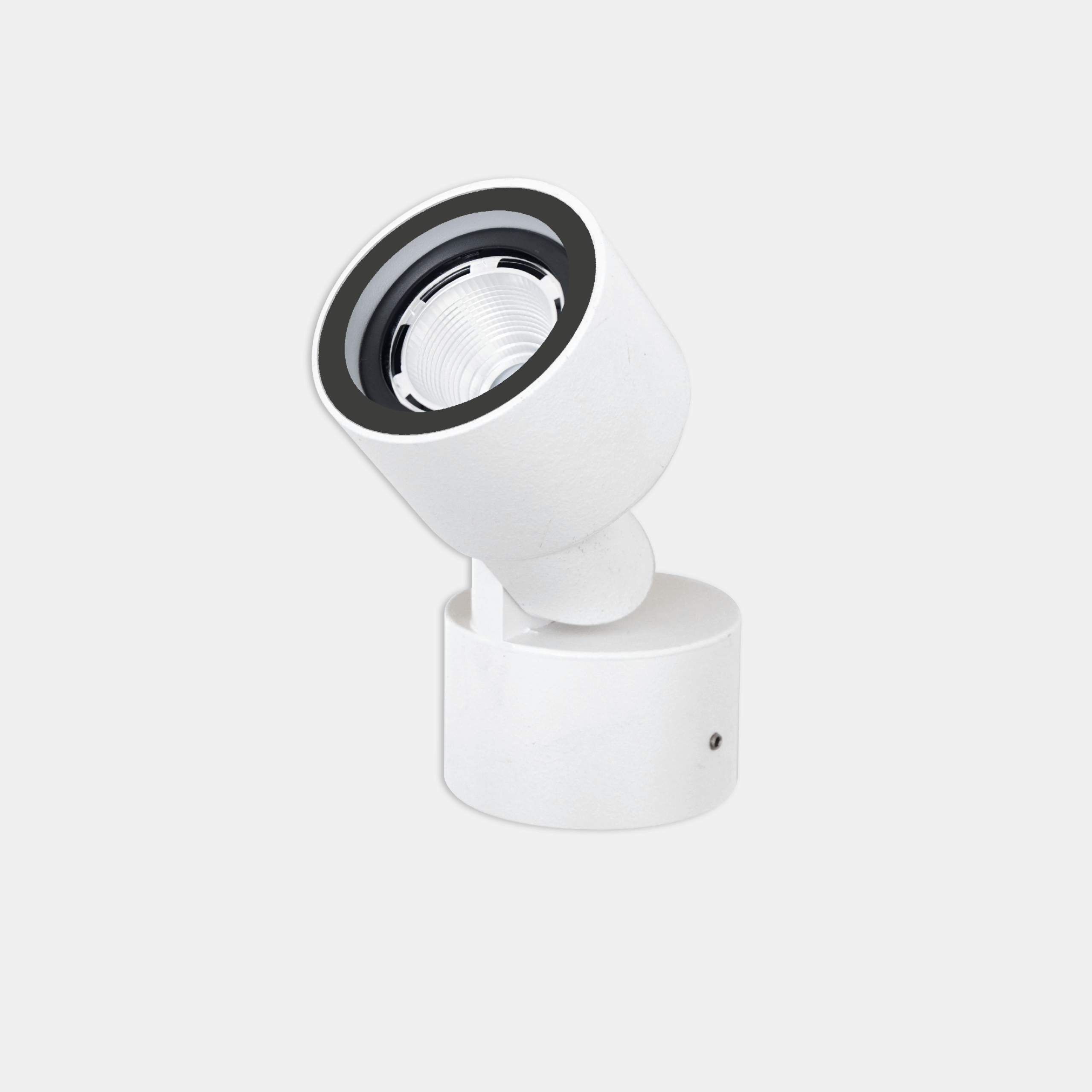

SNAP – Mod. P6

(60° medium diffusing rotosymmetric optics)

Outdoor and indoor led spotlight, suitable for ground/floor, wall and ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color white. Extra-clear tempered flat glass diffuser 4 mm thick. Optics with metallized polycarbonate reflector with high flux efficiency, anti-glare and anti-reflection, 60° medium diffusing rotosymmetric optics.
Categories: Led, SNAP - 7051, Architectural Outdoor, SNAP
Models: 18
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7051P627= 2700°K (CRI >80)05BL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7051P64005BL5-4000°K - CRI>80on/off5131037045164-0.60
7051P64010BL10-4000°K - CRI>80on/off10271037045164-0.60
7051P64015BL15-4000°K - CRI>80on/off15401037045164-0.60
7051P63005BL5-3000°K - CRI>80on/off480967045164-0.60
7051P63010BL10-3000°K - CRI>80on/off960967045164-0.60
7051P63015BL15-3000°K - CRI>80on/off1440967045164-0.60
7051P62705BL5-2700°K - CRI>80on/off464937045164-0.60
7051P62710BL10-2700°K - CRI>80on/off929937045164-0.60
7051P62715BL15-2700°K - CRI>80on/off1394937045164-0.60
7051P64005BL5-4000°K - CRI>80on/off5131037045164-0.60
7051P64010BL10-4000°K - CRI>80on/off10271037045164-0.60
7051P64015BL15-4000°K - CRI>80on/off15401037045164-0.60
7051P63005BL5-3000°K - CRI>80on/off480967045164-0.60
7051P63010BL10-3000°K - CRI>80on/off960967045164-0.60
7051P63015BL15-3000°K - CRI>80on/off1440967045164-0.60
7051P62705BL5-2700°K - CRI>80on/off464937045164-0.60
7051P62710BL10-2700°K - CRI>80on/off929937045164-0.60
7051P62715BL15-2700°K - CRI>80on/off1394937045164-0.60

Accessories
