art.-7051-snap-c3-c6-p3-p6-corten

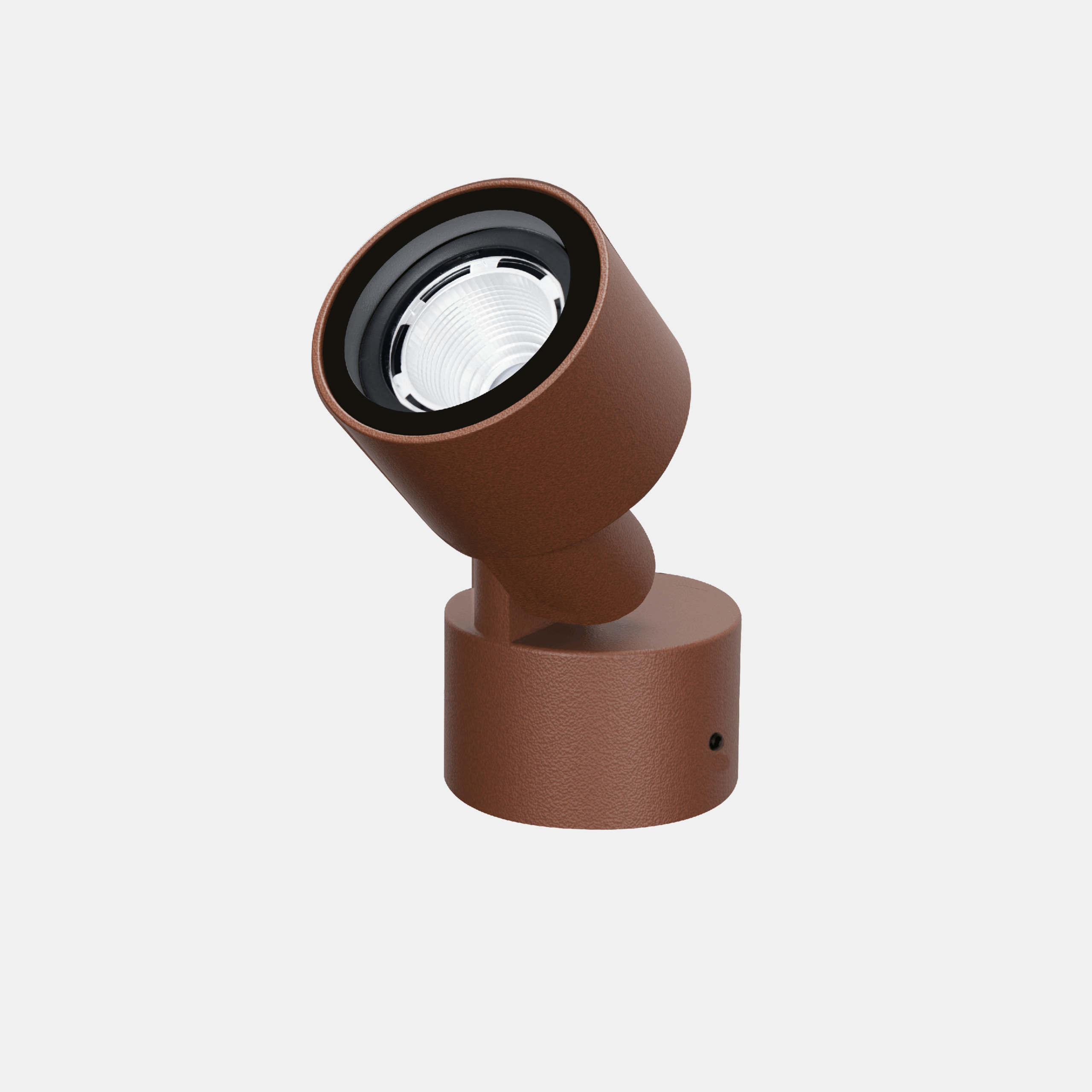

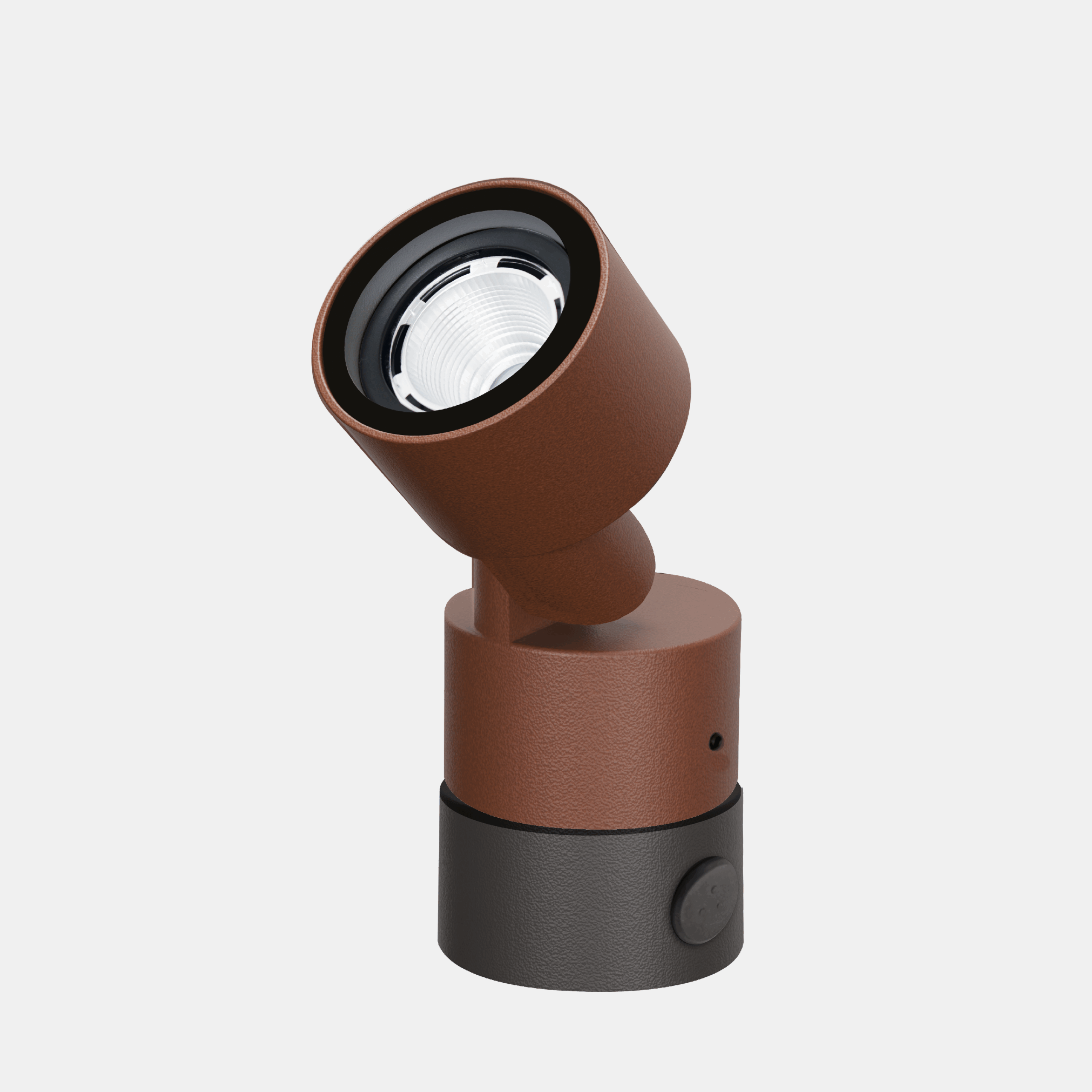

SNAP/P6

Indoor and outdoor led floodlight. Die-cast aluminum body painted with corten epoxy powders. AC direct 220-240V 50/60Hz led boards. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, SNAP - 7051, Architectural Outdoor, art. 7051 Snap, SNAP
Models: 18
Color: Corten
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7051P627= 2700°K (CRI >80)05CL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options

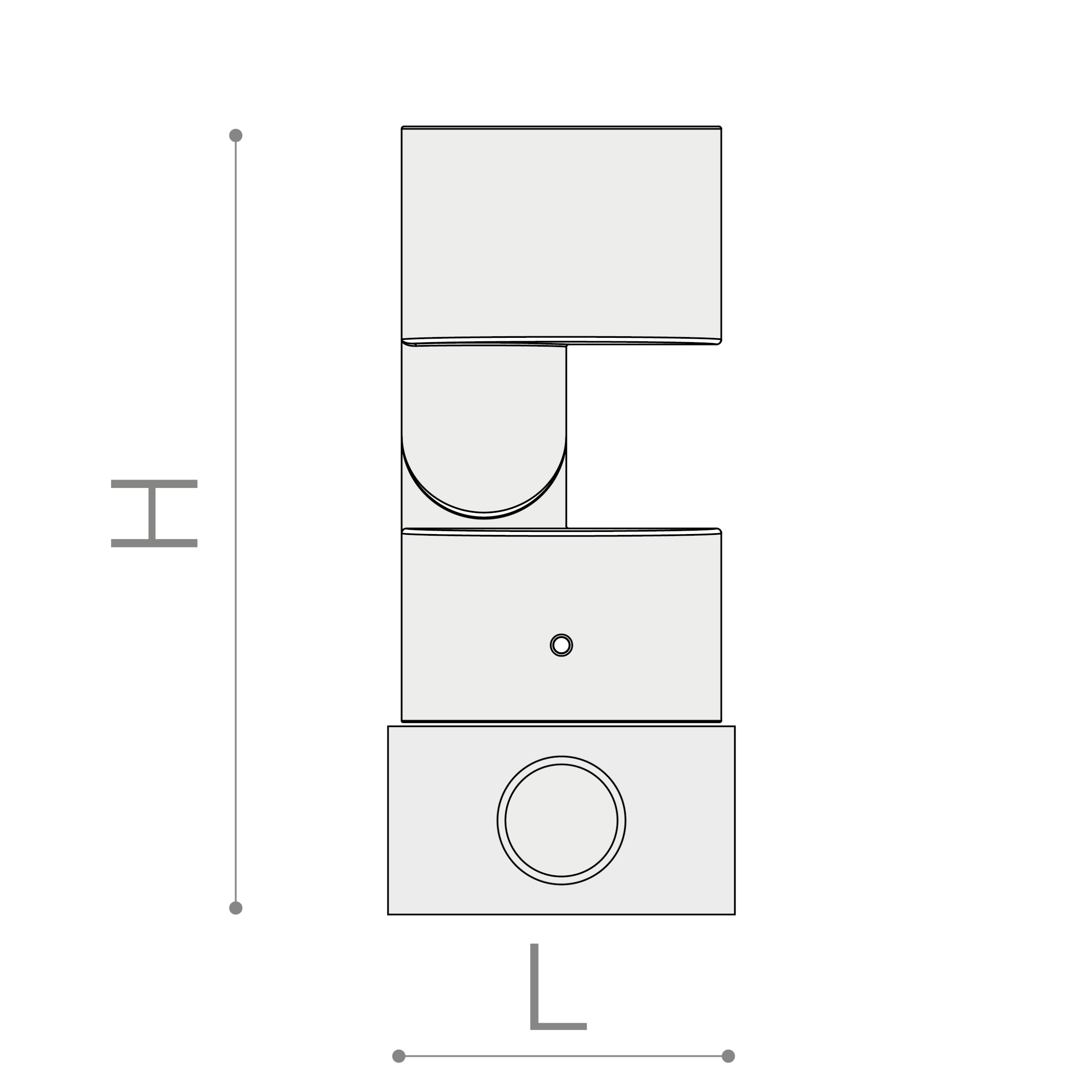

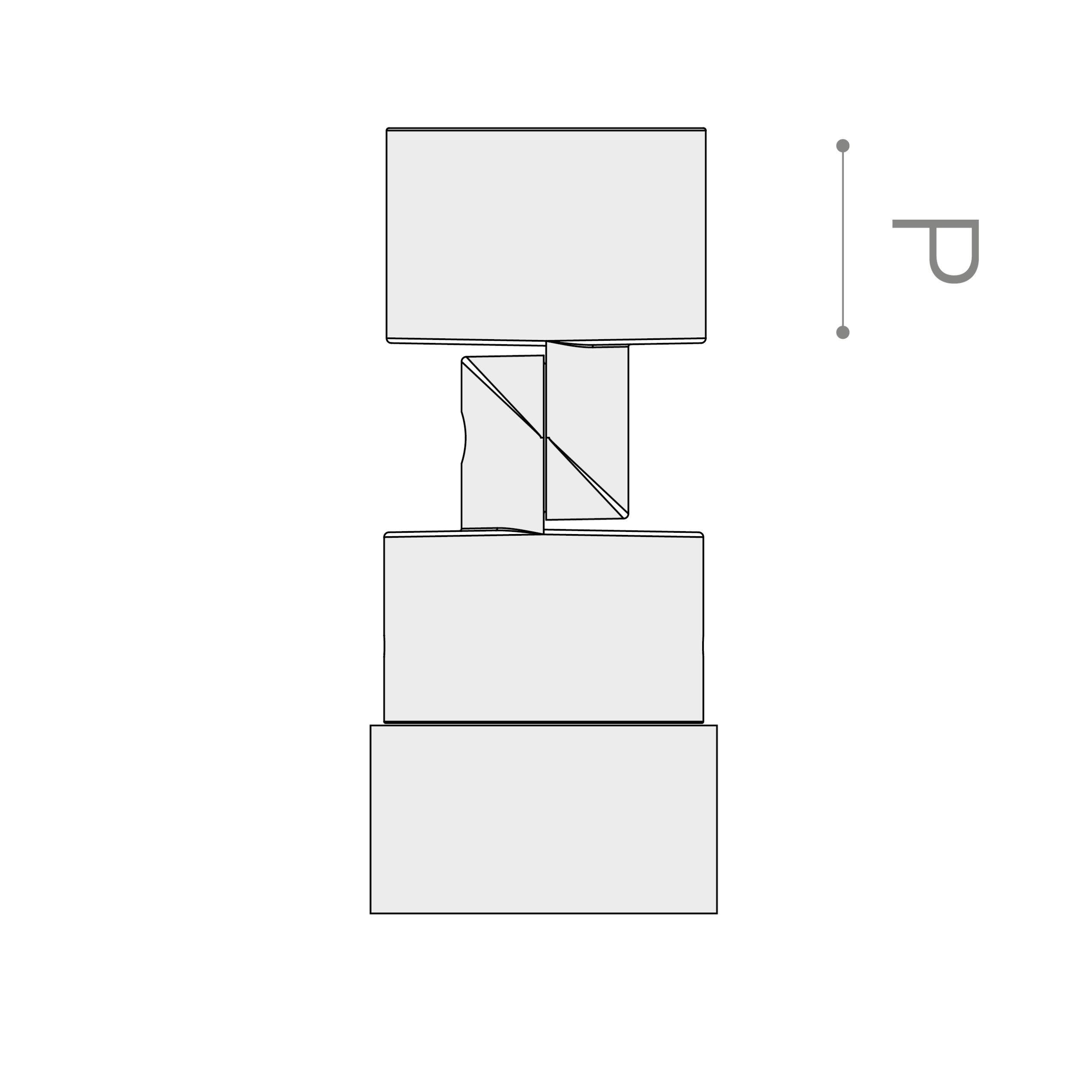

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7051P64005CL5-4000°K - CRI>80on/off5131037045164-0.60
7051P64010CL10-4000°K - CRI>80on/off10271037045164-0.60
7051P64015CL15-4000°K - CRI>80on/off15401037045164-0.60
7051P63005CL5-3000°K - CRI>80on/off480967045164-0.60
7051P63010CL10-3000°K - CRI>80on/off960967045164-0.60
7051P63015CL15-3000°K - CRI>80on/off1440967045164-0.60
7051P62705CL5-2700°K - CRI>80on/off464937045164-0.60
7051P62710CL10-2700°K - CRI>80on/off929937045164-0.60
7051P62715CL15-2700°K - CRI>80on/off1394937045164-0.60
7051P64005CL5-4000°K - CRI>80on/off5131037045164-0.60
7051P64010CL10-4000°K - CRI>80on/off10271037045164-0.60
7051P64015CL15-4000°K - CRI>80on/off15401037045164-0.60
7051P63005CL5-3000°K - CRI>80on/off480967045164-0.60
7051P63010CL10-3000°K - CRI>80on/off960967045164-0.60
7051P63015CL15-3000°K - CRI>80on/off1440967045164-0.60
7051P62705CL5-2700°K - CRI>80on/off464937045164-0.60
7051P62710CL10-2700°K - CRI>80on/off929937045164-0.60
7051P62715CL15-2700°K - CRI>80on/off1394937045164-0.60

Accessories
