art.-7051-snap-p3-p6-antracite

SNAP – Mod. P6

(60° medium diffusing rotosymmetric optics)

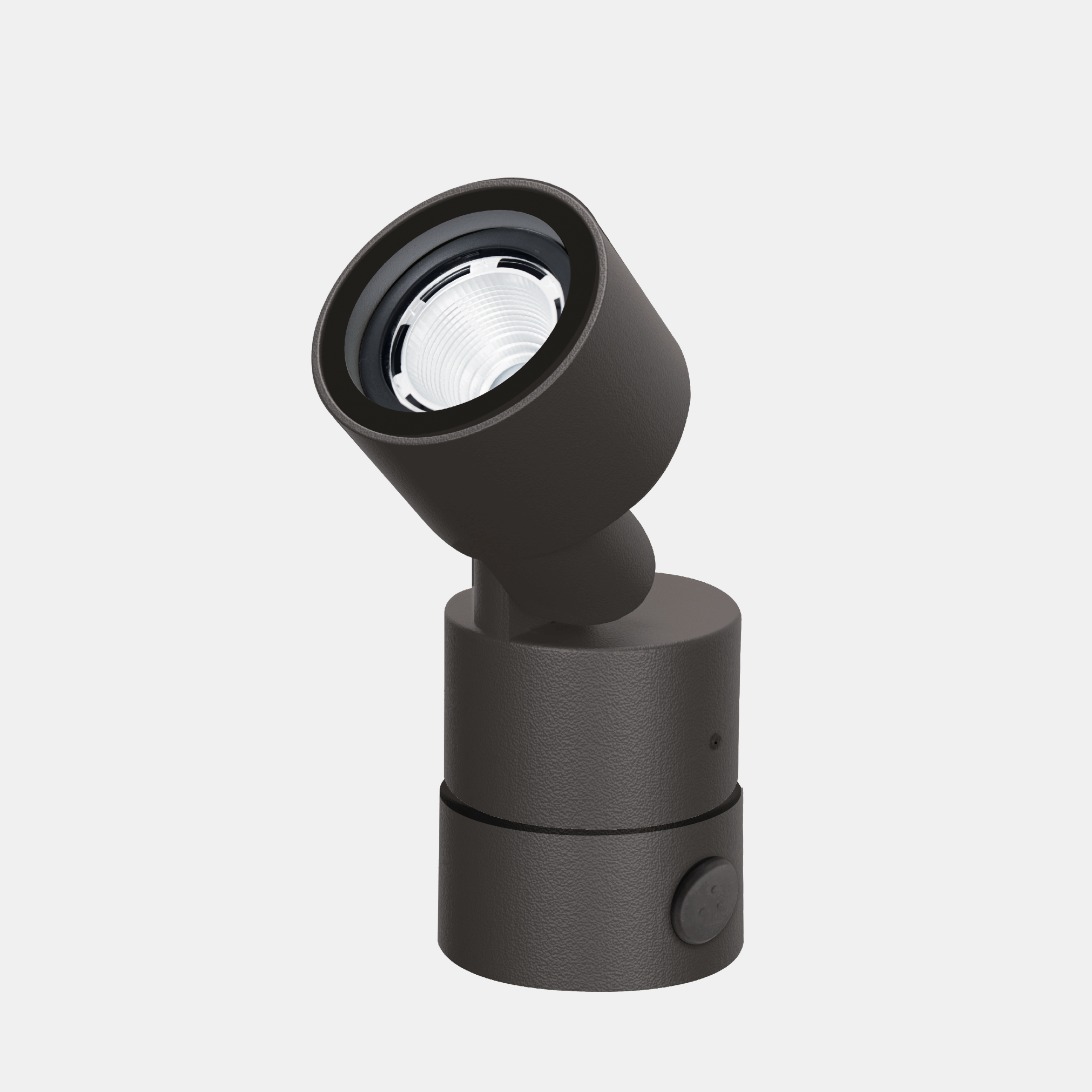

Outdoor and indoor led spotlight, suitable for ground/floor, wall and ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color anthracite. Extra-clear tempered flat glass diffuser 4 mm thick. Optics with metallized polycarbonate reflector with high flux efficiency, anti-glare and anti-reflection, 60° medium diffusing rotosymmetric optics.
Categories: Led, SNAP - 7051, Architectural Outdoor, SNAP
Models: 18
Color: Anthracite
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7051P627= 2700°K (CRI >80)05NL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7051P64005NL5-4000°K - CRI>80on/off5131037045164-0.60
7051P64010NL10-4000°K - CRI>80on/off10271037045164-0.60
7051P64015NL15-4000°K - CRI>80on/off15401037045164-0.60
7051P63005NL5-3000°K - CRI>80on/off480967045164-0.60
7051P63010NL10-3000°K - CRI>80on/off960967045164-0.60
7051P63015NL15-3000°K - CRI>80on/off1440967045164-0.60
7051P62705NL5-2700°K - CRI>80on/off464937045164-0.60
7051P62710NL10-2700°K - CRI>80on/off929937045164-0.60
7051P62715NL15-2700°K - CRI>80on/off1394937045164-0.60
7051P64005NL5-4000°K - CRI>80on/off5131037045164-0.60
7051P64010NL10-4000°K - CRI>80on/off10271037045164-0.60
7051P64015NL15-4000°K - CRI>80on/off15401037045164-0.60
7051P63005NL5-3000°K - CRI>80on/off480967045164-0.60
7051P63010NL10-3000°K - CRI>80on/off960967045164-0.60
7051P63015NL15-3000°K - CRI>80on/off1440967045164-0.60
7051P62705NL5-2700°K - CRI>80on/off464937045164-0.60
7051P62710NL10-2700°K - CRI>80on/off929937045164-0.60
7051P62715NL15-2700°K - CRI>80on/off1394937045164-0.60

Accessories
