ARIS/M6

Outdoor and indoor led fitting for wall installation. Die cast aluminium body painted with corten epoxypolyester powder. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Outdoor, art. 7055 Aris

Models: 18

Color: Corten

Catalogue abstract

Installation instructions

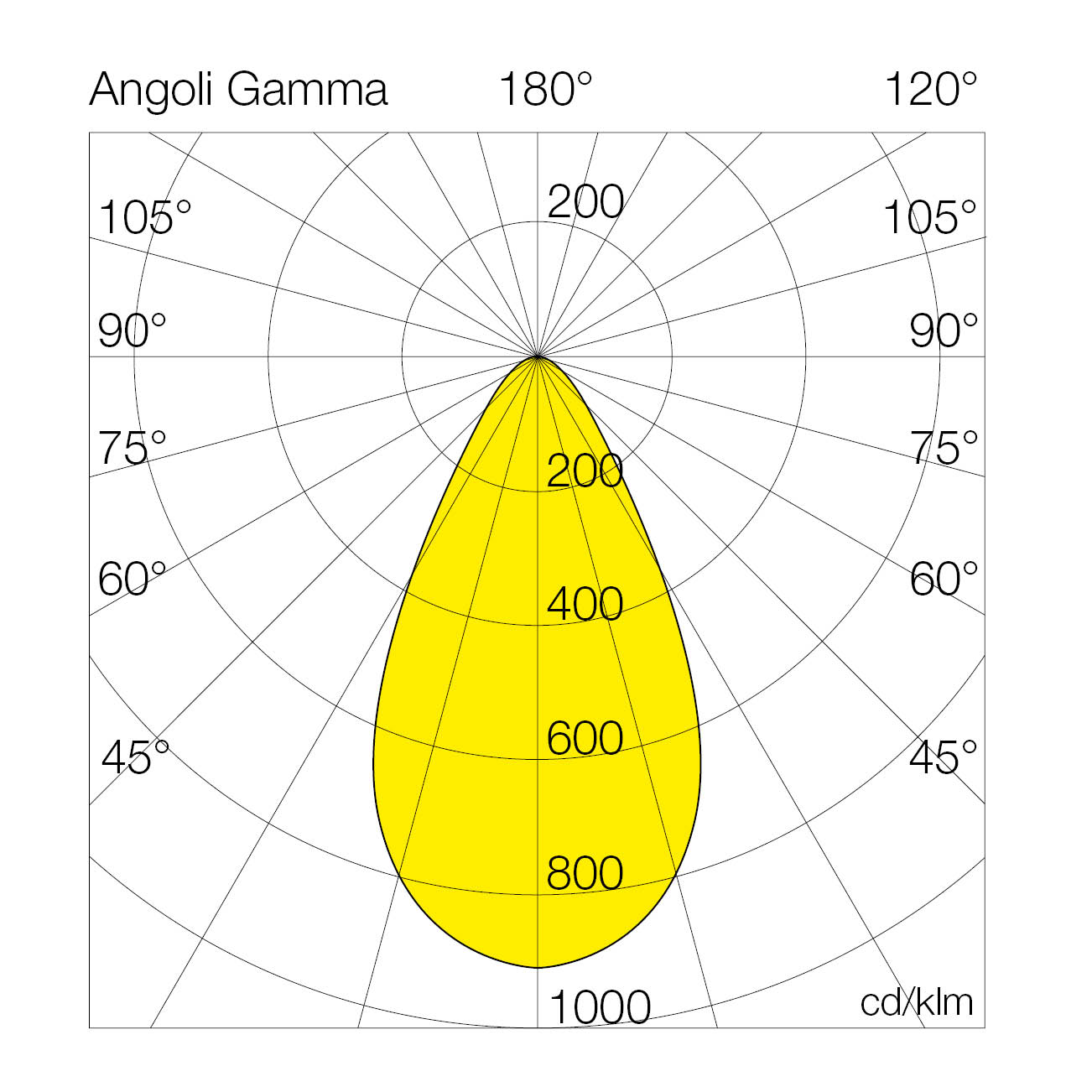

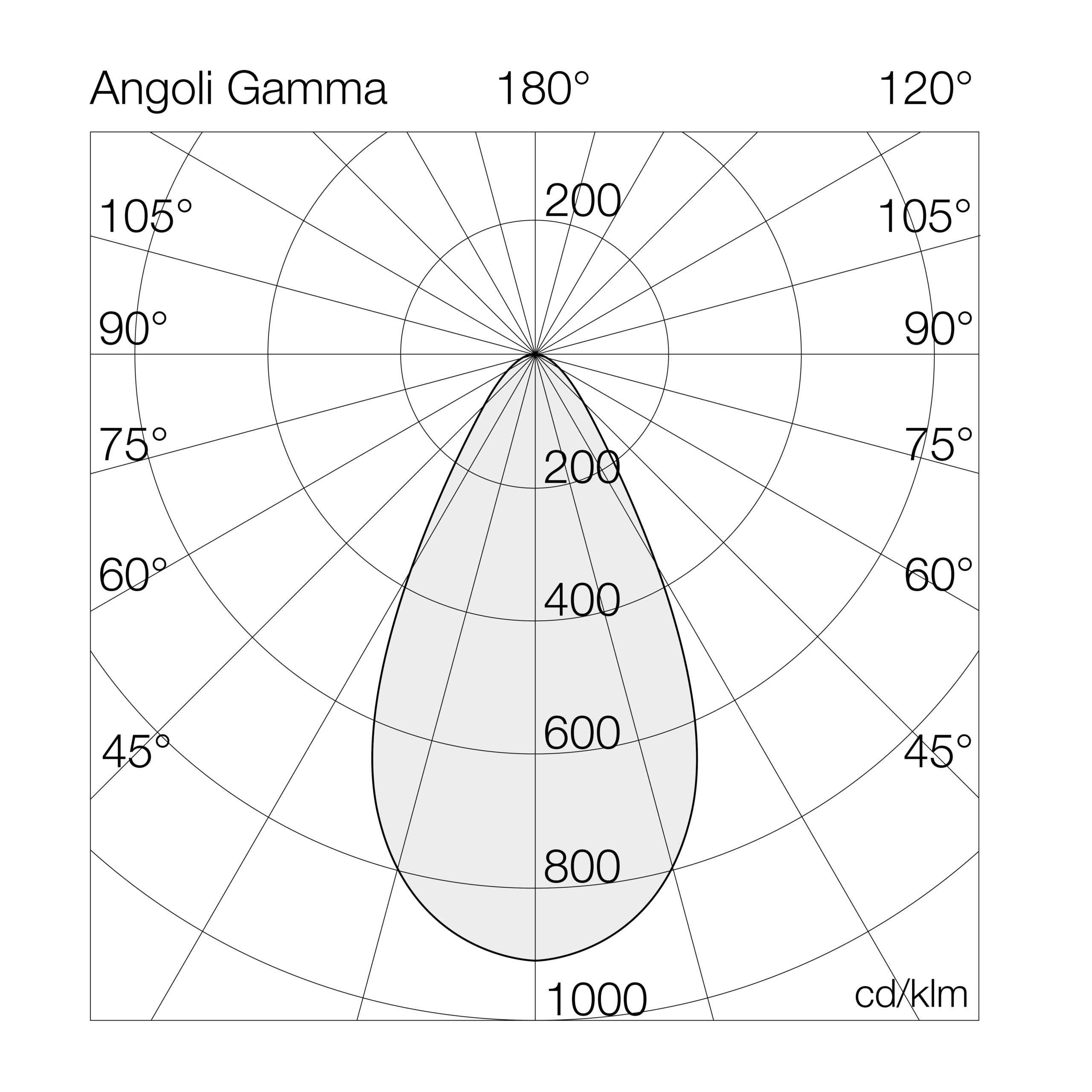

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7055	M6	27	= 2700°K (CRI >80)	10	CL	= on/off
		30	= 3000°K (CRI >80)	20	CD	= dali 2
		40	= 4000°K (CRI >80)	30

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	D (mm)	Kg
7055M64010CL	10	4000°K - CRI>80	on/off	1305	130	105	273	165	2.0
7055M64020CL	20	4000°K - CRI>80	on/off	2335	117	105	273	165	2.0
7055M64030CL	30	4000°K - CRI>80	on/off	3308	110	105	273	165	2.0
7055M64010CD	10	4000°K - CRI>80	dali 2 / dali 2 push	1305	130	105	273	165	2.0
7055M64020CD	20	4000°K - CRI>80	dali 2 / dali 2 push	2335	117	105	273	165	2.0
7055M64030CD	30	4000°K - CRI>80	dali 2 / dali 2 push	3308	110	105	273	165	2.0
7055M63010CL	10	3000°K - CRI>80	on/off	1243	124	105	273	165	2.0
7055M63020CL	20	3000°K - CRI>80	on/off	2223	111	105	273	165	2.0
7055M63030CL	30	3000°K - CRI>80	on/off	3150	105	105	273	165	2.0
7055M63010CD	10	3000°K - CRI>80	dali 2 / dali 2 push	1243	124	105	273	165	2.0
7055M63020CD	20	3000°K - CRI>80	dali 2 / dali 2 push	2223	111	105	273	165	2.0
7055M63030CD	30	3000°K - CRI>80	dali 2 / dali 2 push	3150	105	105	273	165	2.0
7055M62710CL	10	2700°K - CRI>80	on/off	1182	118	105	273	165	2.0
7055M62720CL	20	2700°K - CRI>80	on/off	2116	106	105	273	165	2.0
7055M62730CL	30	2700°K - CRI>80	on/off	2997	100	105	273	165	2.0
7055M62710CD	10	2700°K - CRI>80	dali 2 / dali 2 push	1182	118	105	273	165	2.0
7055M62720CD	20	2700°K - CRI>80	dali 2 / dali 2 push	2116	106	105	273	165	2.0
7055M62730CD	30	2700°K - CRI>80	dali 2 / dali 2 push	2997	100	105	273	165	2.0
