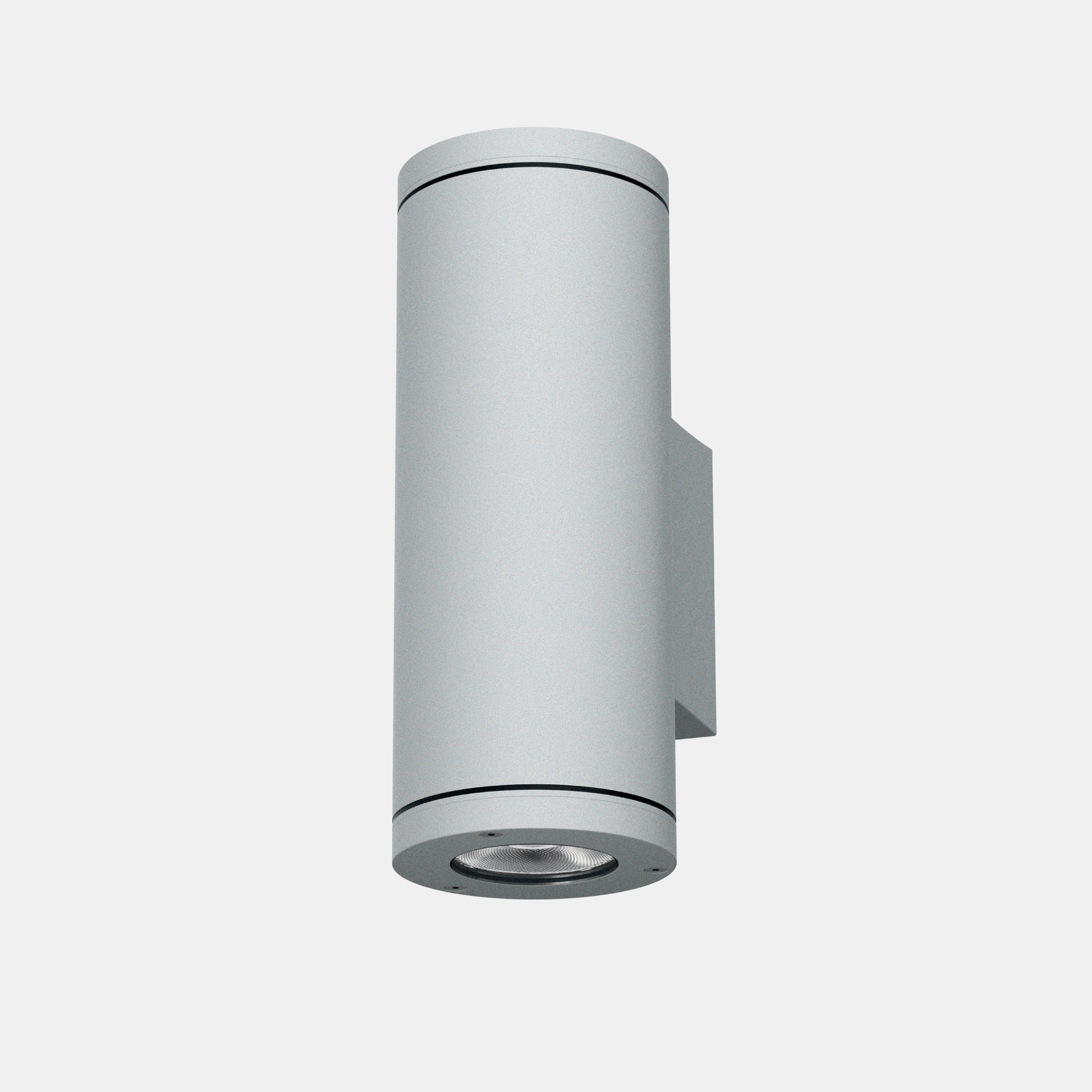

ARIS – Mod. M6

(60° medium diffusing single emission optic)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color silver. 60° medium diffusing single emission optic.

Categories: Led, ARIS, Architectural Outdoor, ARIS

Models: 18

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7055	M6	27	= 2700°K (CRI >80)	10	SL	= on/off
		30	= 3000°K (CRI >80)	20	SD	= dali 2
		40	= 4000°K (CRI >80)	30

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7055M64010SL	10	-	4000°K - CRI ≥80	on/off	1305	130	105	-	273	165	2.0
7055M64020SL	20	-	4000°K - CRI ≥80	on/off	2335	117	105	-	273	165	2.0
7055M64030SL	30	-	4000°K - CRI ≥80	on/off	3308	110	105	-	273	165	2.0
7055M64010SD	10	-	4000°K - CRI ≥80	dali 2 / dali 2 push	1305	130	105	-	273	165	2.0
7055M64020SD	20	-	4000°K - CRI ≥80	dali 2 / dali 2 push	2335	117	105	-	273	165	2.0
7055M64030SD	30	-	4000°K - CRI ≥80	dali 2 / dali 2 push	3308	110	105	-	273	165	2.0
7055M63010SL	10	-	3000°K - CRI ≥80	on/off	1243	124	105	-	273	165	2.0
7055M63020SL	20	-	3000°K - CRI ≥80	on/off	2223	111	105	-	273	165	2.0
7055M63030SL	30	-	3000°K - CRI ≥80	on/off	3150	105	105	-	273	165	2.0
7055M63010SD	10	-	3000°K - CRI ≥80	dali 2 / dali 2 push	1243	124	105	-	273	165	2.0
7055M63020SD	20	-	3000°K - CRI ≥80	dali 2 / dali 2 push	2223	111	105	-	273	165	2.0
7055M63030SD	30	-	3000°K - CRI ≥80	dali 2 / dali 2 push	3150	105	105	-	273	165	2.0
7055M62710SL	10	-	2700°K - CRI ≥80	on/off	1182	118	105	-	273	165	2.0
7055M62720SL	20	-	2700°K - CRI ≥80	on/off	2116	106	105	-	273	165	2.0
7055M62730SL	30	-	2700°K - CRI ≥80	on/off	2997	100	105	-	273	165	2.0
7055M62710SD	10	-	2700°K - CRI ≥80	dali 2 / dali 2 push	1182	118	105	-	273	165	2.0
7055M62720SD	20	-	2700°K - CRI ≥80	dali 2 / dali 2 push	2116	106	105	-	273	165	2.0
7055M62730SD	30	-	2700°K - CRI ≥80	dali 2 / dali 2 push	2997	100	105	-	273	165	2.0
