ARIS/P3

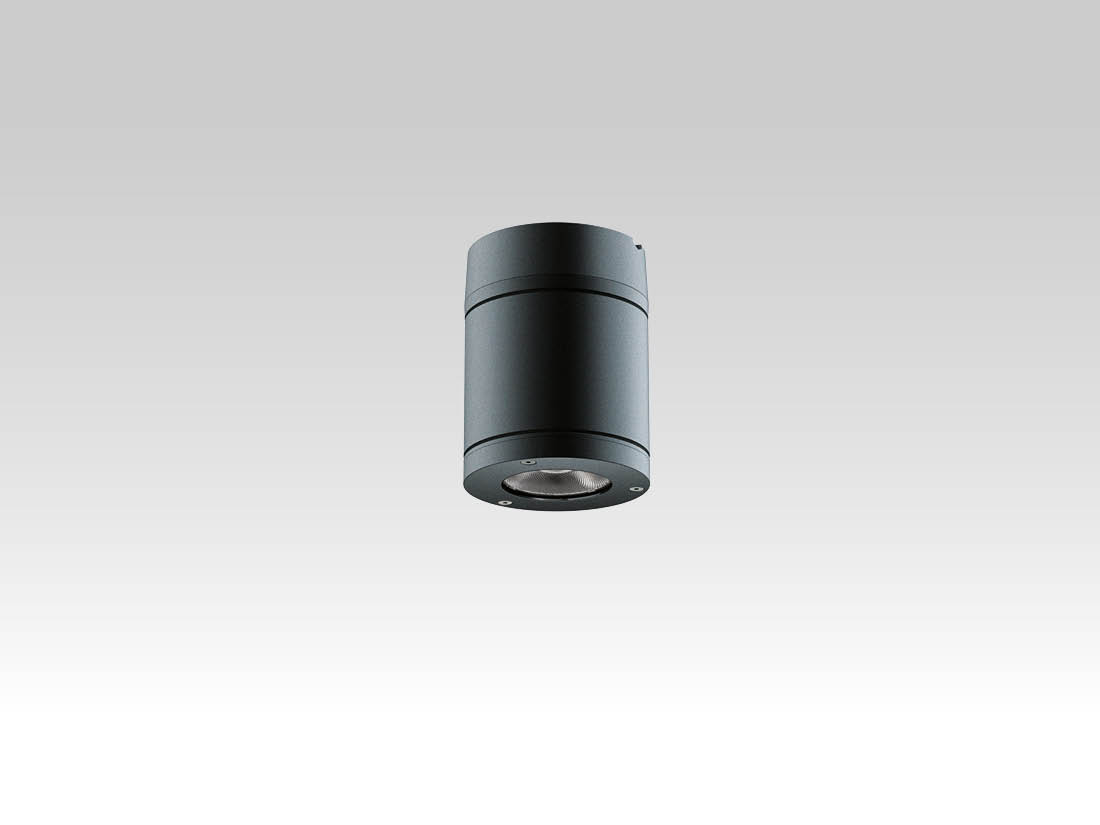

Outdoor and indoor led fitting for wall installation. Die cast aluminium body painted with anthracite epoxypolyester powder. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, ARIS - 7055, Architectural Outdoor, art. 7055 Aris
Models: 6
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7055P327= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)14
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7055P34006NL6-4000°K - CRI>80on/off622104105-140-0.80
7055P34014NL14-4000°K - CRI>80on/off1430102105-140-0.80
7055P33006NL6-3000°K - CRI>80on/off59299105-140-0.80
7055P33014NL14-3000°K - CRI>80on/off136297105-140-0.80
7055P32706NL6-2700°K - CRI>80on/off56494105-140-0.80
7055P32714NL14-2700°K - CRI>80on/off129693105-140-0.80
