art.-7112-aston-mr-cr-tr-ar-rr

ASTON – Mod. AR

(65° asymmetrical wide beam optics)

Indoor and outdoor LED floodlight for lighting large areas and sports facilities, suitable for ground, wall or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating in matte black color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Asymmetrical 65° wide-beam optics.
Categories: Led, ASTON - 7112, Floodlights, ASTON
Models: 30
Color: Matt black
Catalogue abstract
Installation instructions

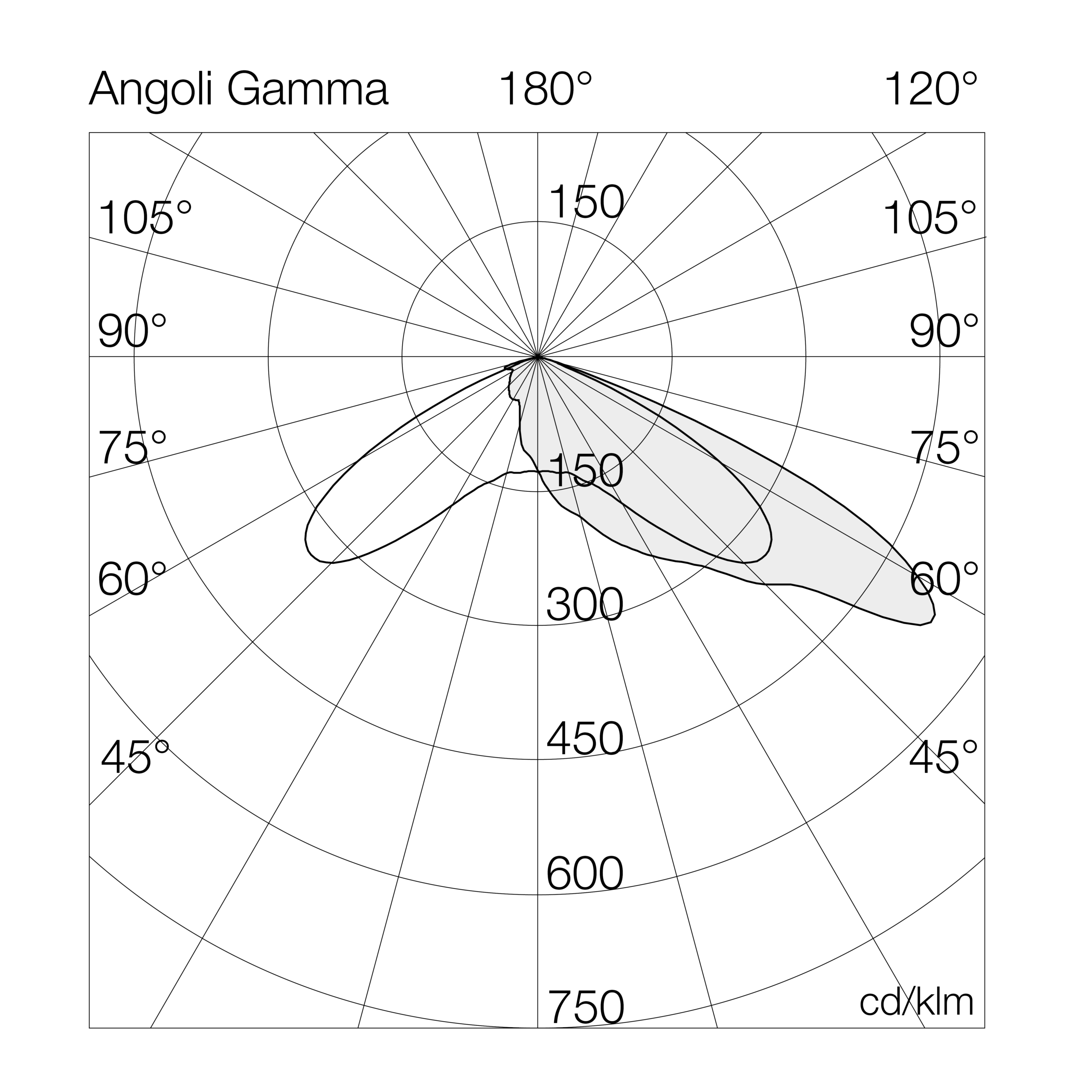

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7112AR4= 4000°K (CRI >70)400EL= on/off
7= 5700°K (CRI >70)450LD= dali
R= 5700°K (CRI >90)500
550
600

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7112AR4400EL400-4000°K - CRI>70on/off59745152445330540-19.5
7112AR4450EL450-4000°K - CRI>70on/off65102147445330540-19.5
7112AR4500EL500-4000°K - CRI>70on/off70269143445330540-19.5
7112AR4550EL550-4000°K - CRI>70on/off75241139445330540-19.5
7112AR4600EL600-4000°K - CRI>70on/off80478137445330540-19.5
7112AR4400LD400-4000°K - CRI>70dali59745152445330540-19.5
7112AR4450LD450-4000°K - CRI>70dali65102147445330540-19.5
7112AR4500LD500-4000°K - CRI>70dali70269143445330540-19.5
7112AR4550LD550-4000°K - CRI>70dali75241139445330540-19.5
7112AR4600LD600-4000°K - CRI>70dali80478137445330540-19.5
7112AR7400EL400-5700°K - CRI>70on/off59745149445330540-19.5
7112AR7450EL450-5700°K - CRI>70on/off65102145445330540-19.5
7112AR7500EL500-5700°K - CRI>70on/off70269141445330540-19.5
7112AR7550EL550-5700°K - CRI>70on/off75241137445330540-19.5
7112AR7600EL600-5700°K - CRI>70on/off80478134445330540-19.5
7112AR7400LD400-5700°K - CRI>70dali59745149445330540-19.5
7112AR7450LD450-5700°K - CRI>70dali65102145445330540-19.5
7112AR7500LD500-5700°K - CRI>70dali70269141445330540-19.5
7112AR7550LD550-5700°K - CRI>70dali75241137445330540-19.5
7112AR7600LD600-5700°K - CRI>70dali80478134445330540-19.5
