art.-7112-aston-mr-cr-tr-ar-rr

ASTON/CR

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Die cast aluminium body, coated with polyester anticorrosion powder, matt black, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, ASTON - 7112, Floodlights, ASTON
Models: 30
Color: Matt black
Catalogue abstract
Installation instructions

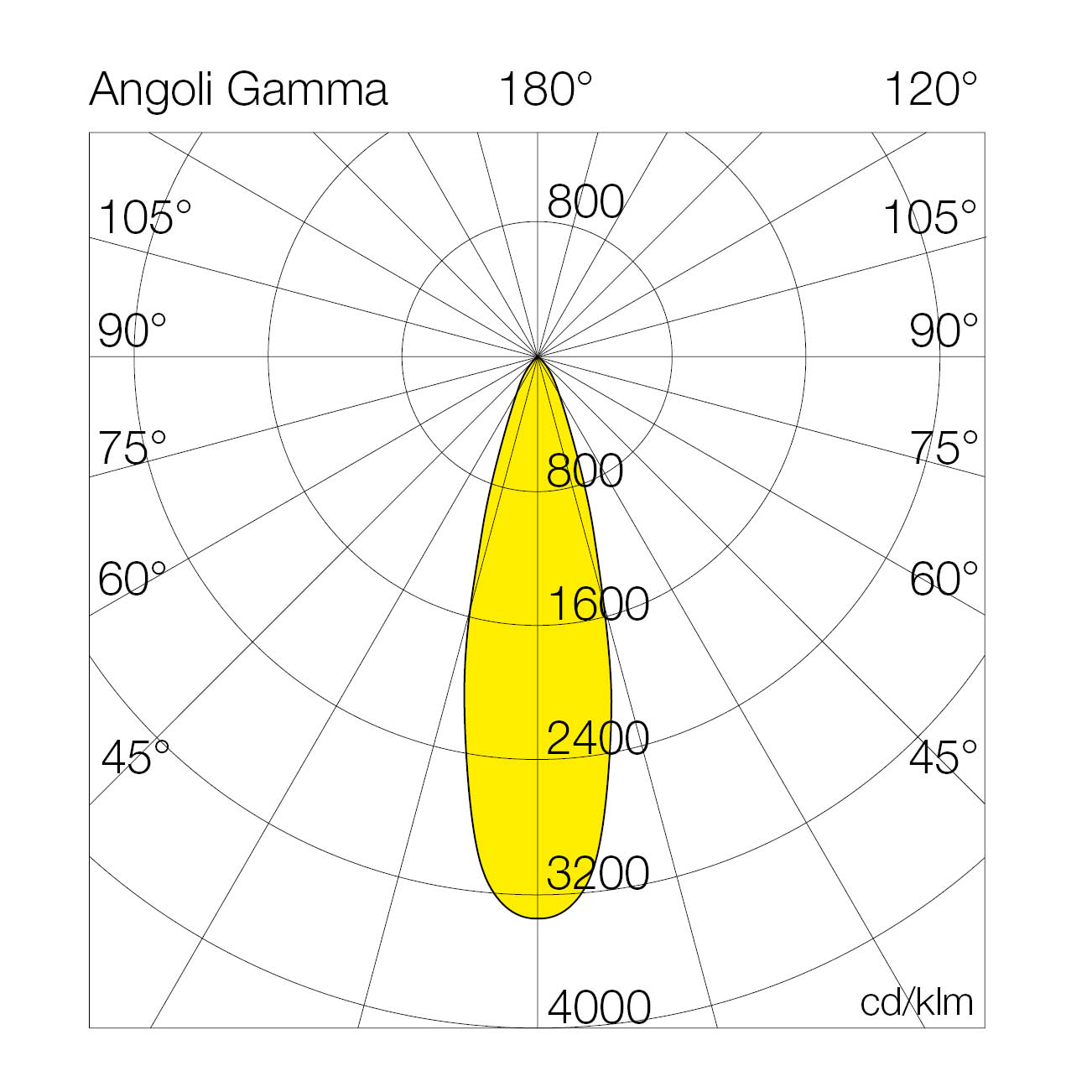

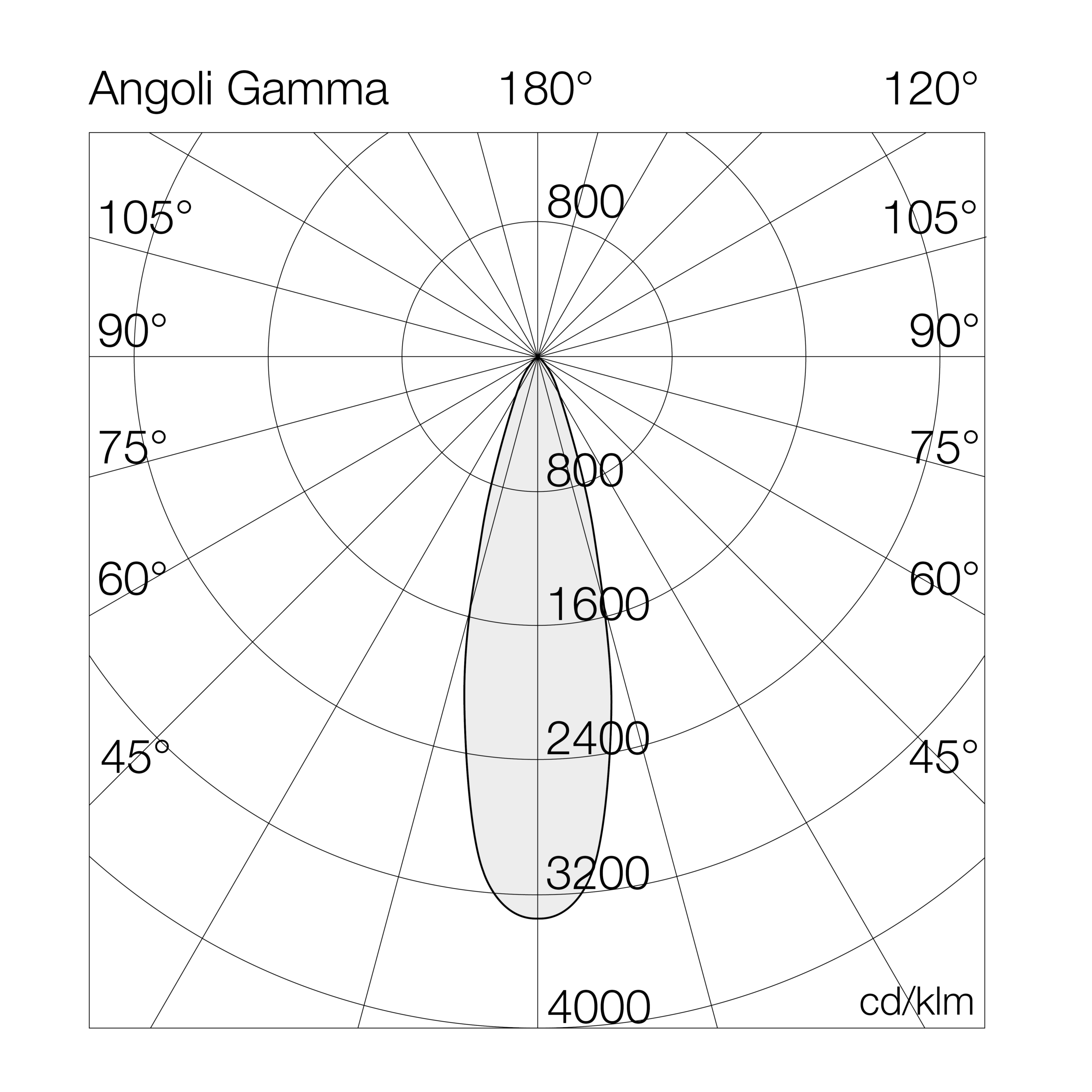

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7112CR4= 4000°K (CRI >70)400EL= on/off
7= 5700°K (CRI >70)450LD= dali
R= 5700°K (CRI >90)500
550
600

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7112CR4400EL400-4000°K - CRI>70on/off64282164445330540-19.5
7112CR4450EL450-4000°K - CRI>70on/off70046158445330540-19.5
7112CR4500EL500-4000°K - CRI>70on/off75605154445330540-19.5
7112CR4550EL550-4000°K - CRI>70on/off80956150445330540-19.5
7112CR4600EL600-4000°K - CRI>70on/off86590147445330540-19.5
7112CR4400LD400-4000°K - CRI>70dali64282164445330540-19.5
7112CR4450LD450-4000°K - CRI>70dali70046158445330540-19.5
7112CR4500LD500-4000°K - CRI>70dali75605154445330540-19.5
7112CR4550LD550-4000°K - CRI>70dali80956150445330540-19.5
7112CR4600LD600-4000°K - CRI>70dali86590147445330540-19.5
7112CR7400EL400-5700°K - CRI>70on/off64282161445330540-19.5
7112CR7450EL450-5700°K - CRI>70on/off70046156445330540-19.5
7112CR7500EL500-5700°K - CRI>70on/off75605151445330540-19.5
7112CR7550EL550-5700°K - CRI>70on/off80956147445330540-19.5
7112CR7600EL600-5700°K - CRI>70on/off86590144445330540-19.5
7112CR7400LD400-5700°K - CRI>70dali64282161445330540-19.5
7112CR7450LD450-5700°K - CRI>70dali70046156445330540-19.5
7112CR7500LD500-5700°K - CRI>70dali75605151445330540-19.5
7112CR7550LD550-5700°K - CRI>70dali80956147445330540-19.5
7112CR7600LD600-5700°K - CRI>70dali86590144445330540-19.5
