ASTON – Mod. MR

(56° symmetrical optics)

Indoor and outdoor LED floodlight for lighting large areas and sports facilities, suitable for ground, wall or light tower installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating in matte black color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Symmetrical 56° optics.
Categories: Led, ASTON - 7112, Floodlights, ASTON
Models: 30
Color: Matt black
Catalogue abstract
Installation instructions

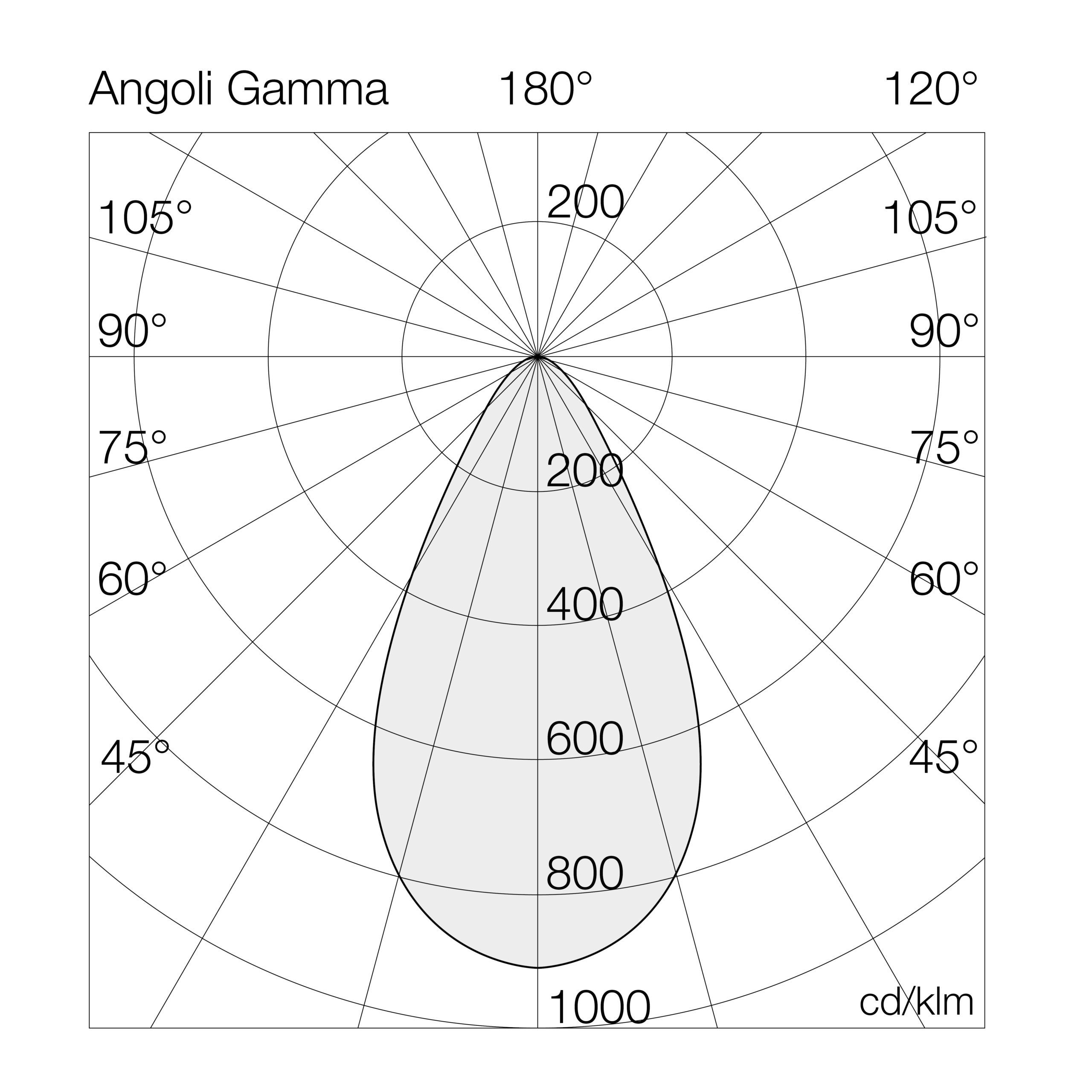

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7112MR4= 4000°K (CRI >70)400EL= on/off
7= 5700°K (CRI >70)450LD= dali
R= 5700°K (CRI >90)500
550
600

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7112MR4400EL400-4000°K - CRI>70on/off64131163445330540-19.5
7112MR4450EL450-4000°K - CRI>70on/off69881158445330540-19.5
7112MR4500EL500-4000°K - CRI>70on/off75428154445330540-19.5
7112MR4550EL550-4000°K - CRI>70on/off80766150445330540-19.5
7112MR4600EL600-4000°K - CRI>70on/off86387147445330540-19.5
7112MR4400LD400-4000°K - CRI>70dali64131163445330540-19.5
7112MR4450LD450-4000°K - CRI>70dali69881158445330540-19.5
7112MR4500LD500-4000°K - CRI>70dali75428154445330540-19.5
7112MR4550LD550-4000°K - CRI>70dali80766150445330540-19.5
7112MR4600LD600-4000°K - CRI>70dali86387147445330540-19.5
7112MR7400EL400-5700°K - CRI>70on/off64131160445330540-19.5
7112MR7450EL450-5700°K - CRI>70on/off69881155445330540-19.5
7112MR7500EL500-5700°K - CRI>70on/off75428151445330540-19.5
7112MR7550EL550-5700°K - CRI>70on/off80766147445330540-19.5
7112MR7600EL600-5700°K - CRI>70on/off86387144445330540-19.5
7112MR7400LD400-5700°K - CRI>70dali64131160445330540-19.5
7112MR7450LD450-5700°K - CRI>70dali69881155445330540-19.5
7112MR7500LD500-5700°K - CRI>70dali75428151445330540-19.5
7112MR7550LD550-5700°K - CRI>70dali80766147445330540-19.5
7112MR7600LD600-5700°K - CRI>70dali86387144445330540-19.5
